Product Specifications
| Manufacturer Part Number | 00083747 |

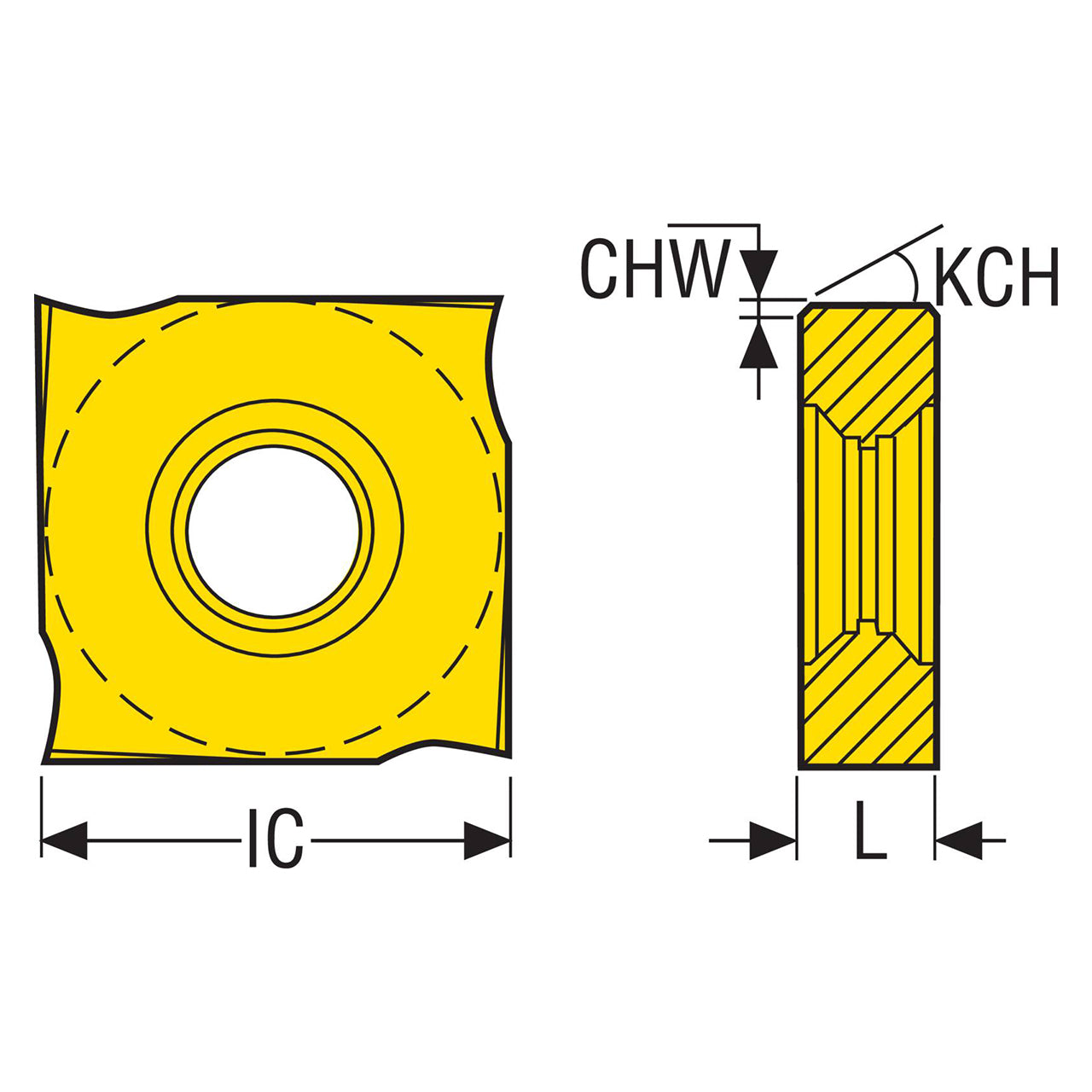

| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Corner Chamfer Width (Decimal Inch) | 0.006" |
| Corner Chamfer Width (mm) | 0.15mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.158" |
| Theoretical Cutting Edge Length (mm) | 4.00mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M08 |
| Insert Size And Shape | 335.19-1204 |
| Insert Rake Angle (Degree) | 15 Degree |
| Material | Carbide |
| Insert Hand | Neutral |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Product Type | Disc Milling Insert |
