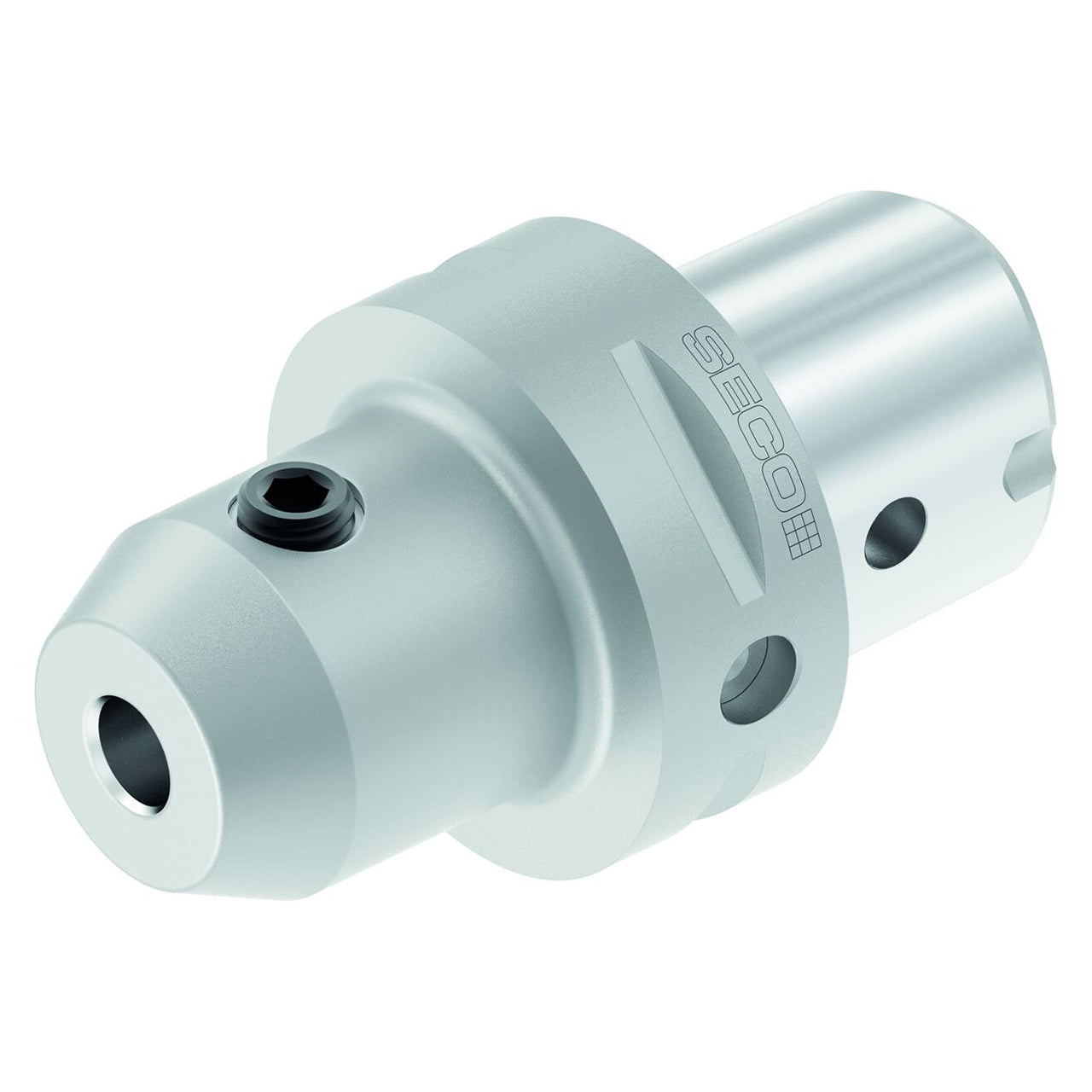

Product Specifications
| Manufacturer Part Number | 00078615 |
| Body Diameter (Decimal Inch) | 1.614" |
| Body Diameter (mm) | 41.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.625" |
| Connection Bore Diameter (mm) | 15.88mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.625" |
| Minimum Connection Bore Diameter (mm) | 15.88mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.625" |
| Maximum Connection Bore Diameter (mm) | 15.88mm |
| Body Length (Decimal Inch) | 1.440" |
| Body Length (mm) | 36.58mm |
| Functional Length (Decimal Inch) | 1.600" |
| Functional Length (mm) | 40.64mm |
| Minimum Functional Length (Decimal Inch) | 1.600 |
| Functional Length Secondary (Decimal Inch) | 1.606" |
| Functional Length Secondary (mm) | 40.80mm |
| Protruding Length (Decimal Inch) | 2.560" |
| Protruding Length (mm) | 65.02mm |
| Clamping Length (Decimal Inch) | 1.890" |
| Clamping Length (mm) | 48.01mm |
| Overall Length (Decimal Inch) | 4.056" |
| Overall Length (mm) | 103.02mm |
| Body Half Taper Angle Degree) | 60 Degree |
| Product Type | End Mill Holder |
