Product Specifications
| Manufacturer Part Number | 00077969 |
| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Insert Width (Decimal Inch) | 0.500" |
| Insert Width (mm) | 12.70mm |
| Corner Radius (Decimal Inch) | 0.005" |
| Corner Radius (mm) | 0.12mm |
| Insert Thickness (Decimal Inch) | 0.137" |
| Insert Thickness (mm) | 3.47mm |
| Thread Form Type | NPT - Internal Threading |
| Cutting Edge Count | 3 |
| Insert Hand | Right Hand |
| Tooth Count | 1 |
| Profile Included Angle (Degree) | 60 Degree |
| Material | Carbide |

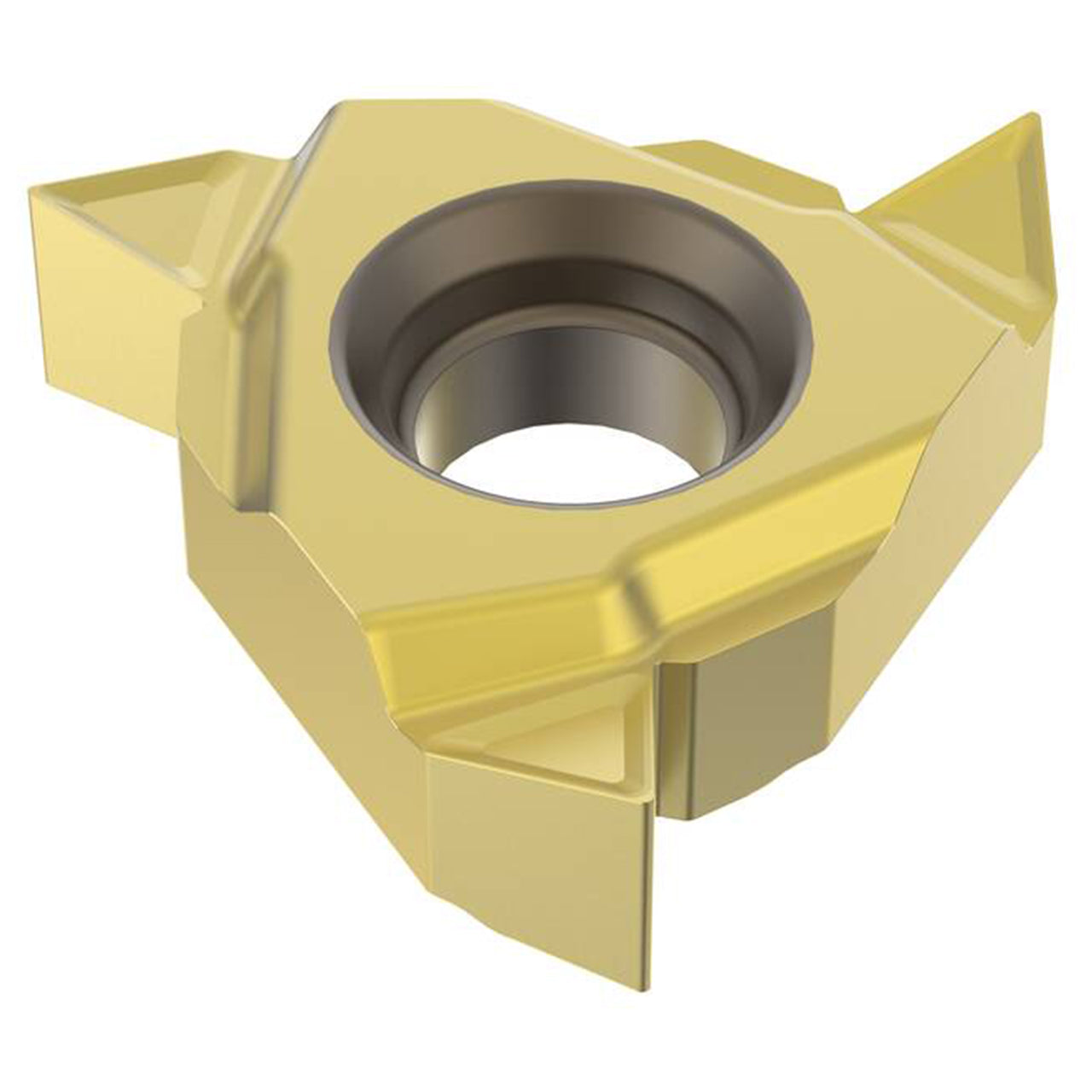

| Product Type | Laydown Threading Insert |
