Product Specifications
| Manufacturer Part Number | 00076741 |
| Body Diameter (Decimal Inch) | 2.284" |
| Body Diameter (mm) | 58.00mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.575" |
| Connection Diameter Workpiece Side (mm) | 40.00mm |
| Shank Diameter (Decimal Inch) | 1.575" |
| Shank Diameter (mm) | 40.00mm |
| Body Length (Decimal Inch) | 3.307" |
| Body Length (mm) | 84.00mm |
| Functional Length (Decimal Inch) | 4.331" |
| Functional Length (mm) | 110.00mm |
| Maximum Clamping Length (Decimal Inch) | 1.181" |
| Maximum Clamping Length (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 5.906" |
| Overall Length (mm) | 150.00mm |
| Flange Thickness (Decimal Inch) | 0.276" |
| Flange Thickness (mm) | 7.00mm |

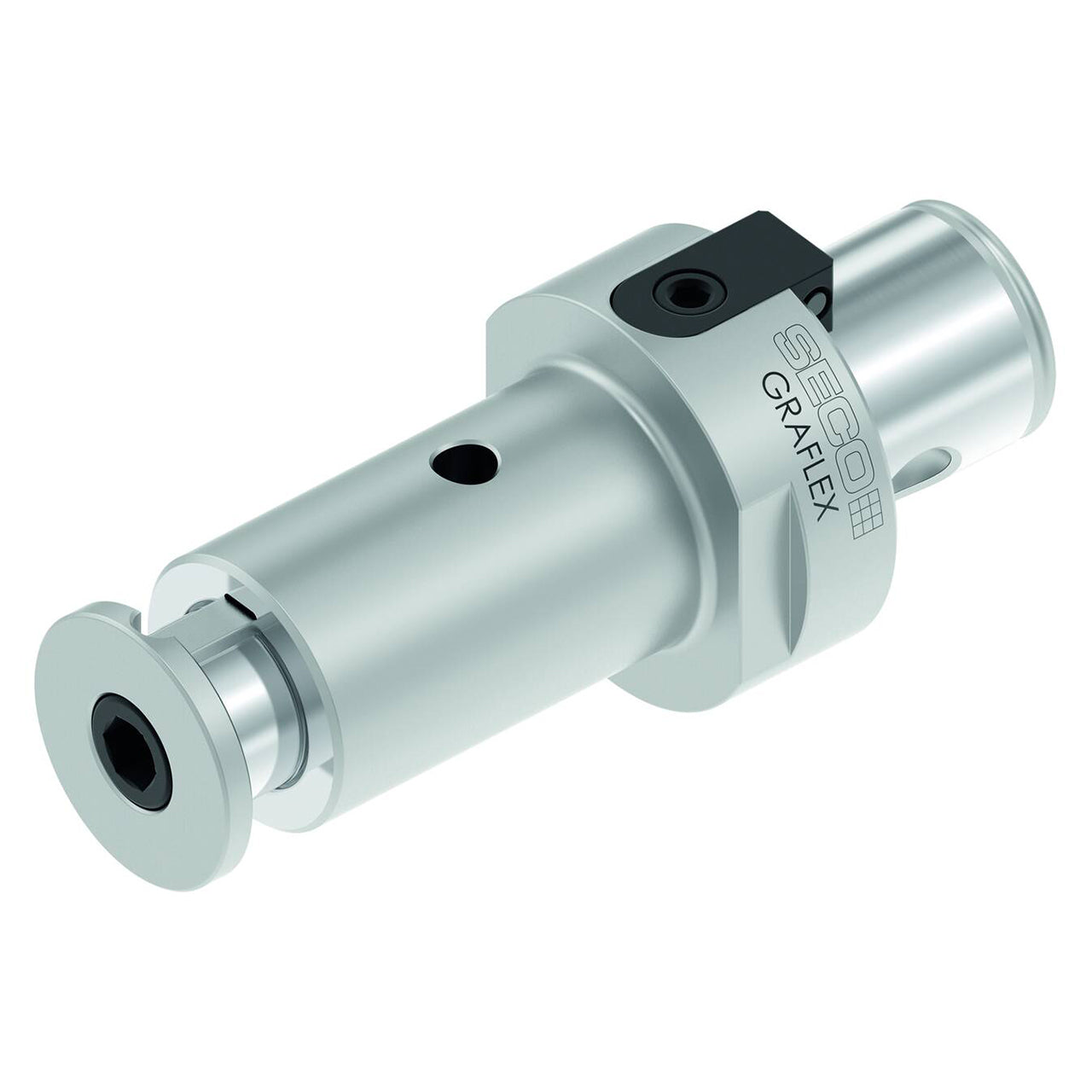

| Product Type | Disc Mill Holder |
