Product Specifications
| Manufacturer Part Number | 00076737 |
| Body Diameter (Decimal Inch) | 1.378" |
| Body Diameter (mm) | 35.00mm |
| Shank Diameter (Decimal Inch) | 0.866" |
| Shank Diameter (mm) | 22.00mm |
| Body Length (Decimal Inch) | 1.693" |
| Body Length (mm) | 43.00mm |
| Functional Length (Decimal Inch) | 2.362" |
| Functional Length (mm) | 60.00mm |
| Maximum Clamping Length (Decimal Inch) | 0.472" |
| Maximum Clamping Length (mm) | 12.00mm |
| Overall Length (Decimal Inch) | 3.307" |
| Overall Length (mm) | 84.00mm |
| Flange Thickness (Decimal Inch) | 0.158" |
| Flange Thickness (mm) | 4.00mm |

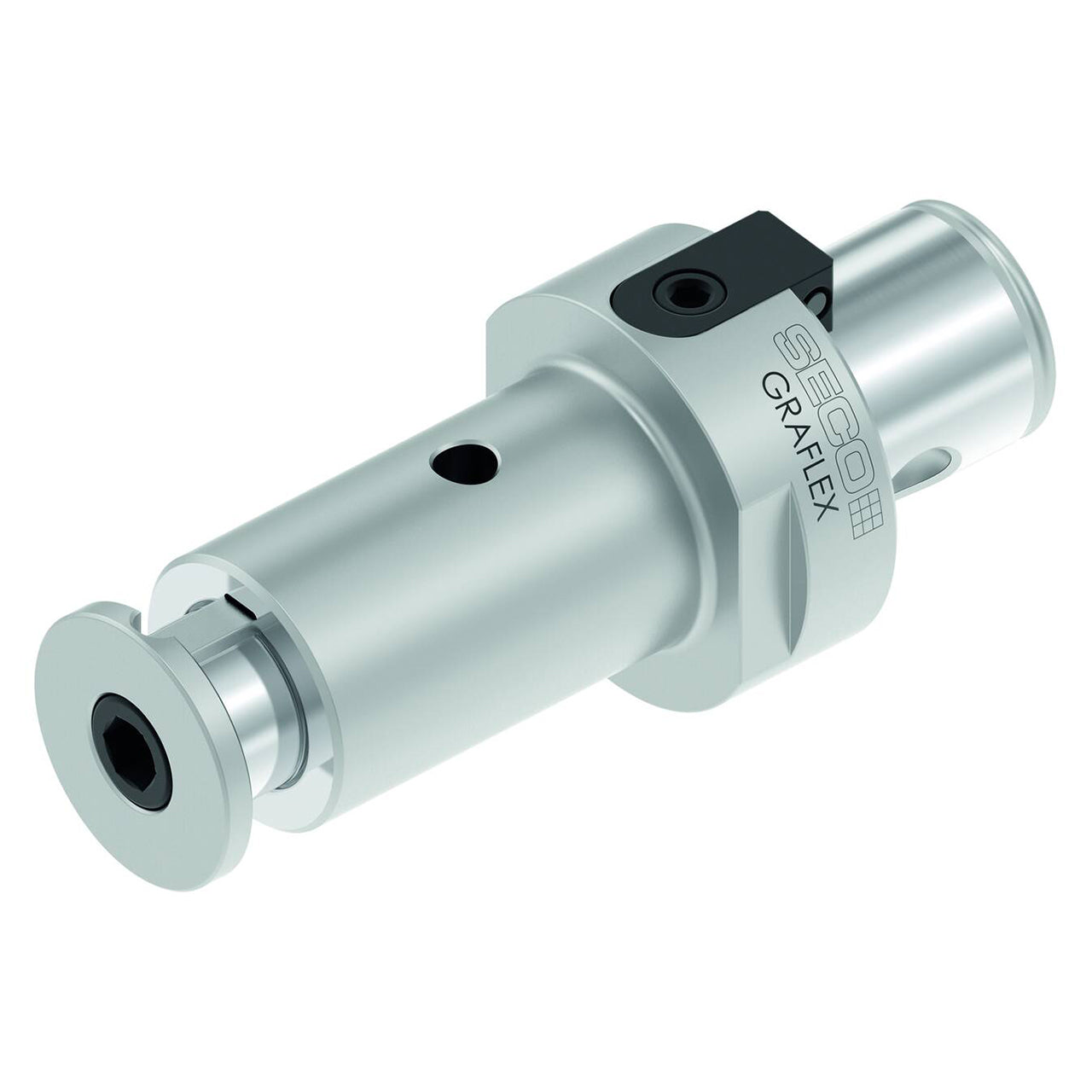

| Product Type | Shell Mill Holder |
