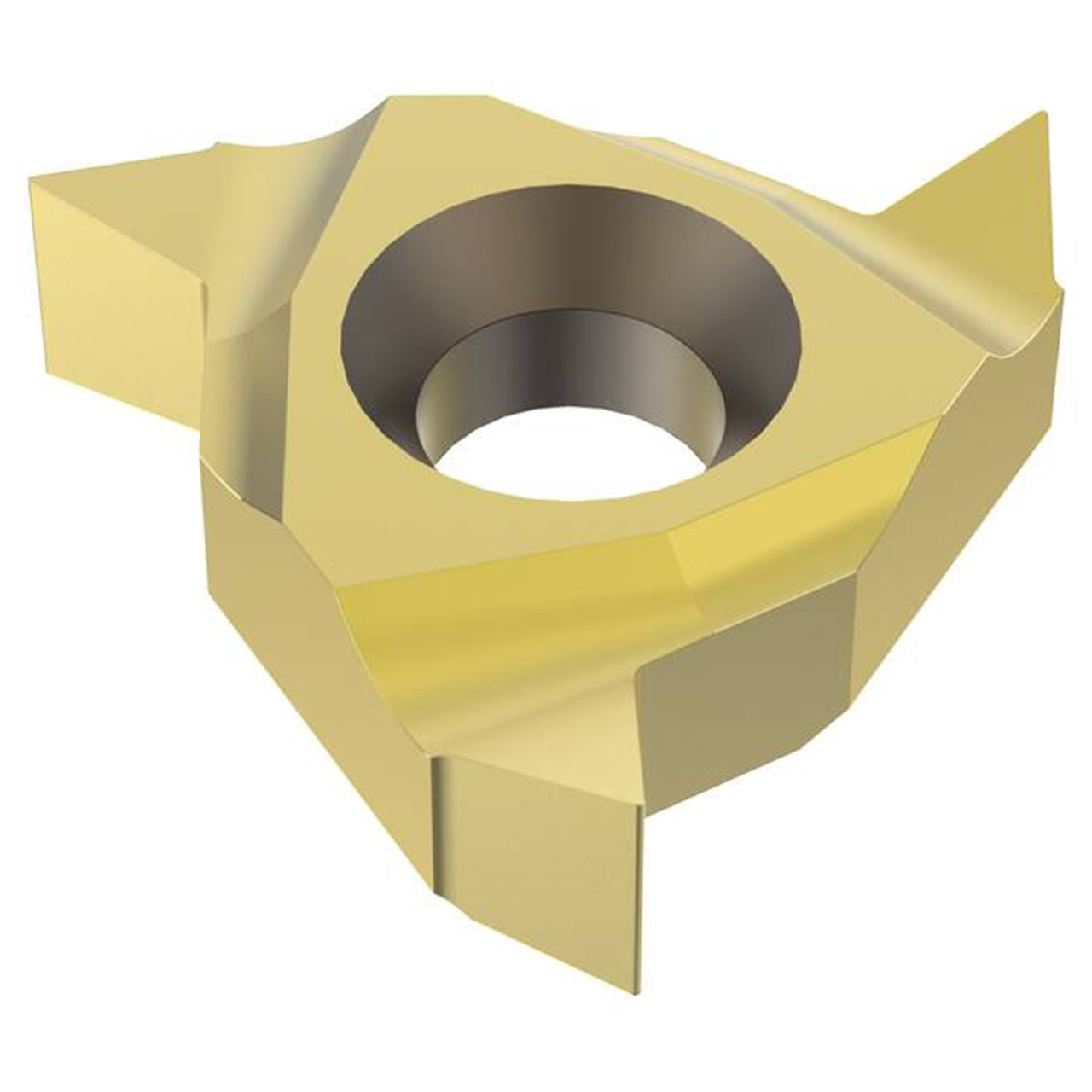

Product Specifications
| Manufacturer Part Number | 00076261 |
| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Shank Width (Decimal Inch) | 0.654" |
| Shank Width (mm) | 16.60mm |
| Functional Width (Decimal Inch) | 0.266" |
| Functional Width (mm) | 6.76mm |
| Corner Radius (Decimal Inch) | 0.003" |
| Corner Radius (mm) | 0.08mm |
| Insert Thickness (Decimal Inch) | 0.137" |
| Insert Thickness (mm) | 3.47mm |
| Thread Form Type | Partial Profile 55 - Internal Threading |
| Cutting Edge Count | 3 |
| Insert Hand | Right Hand |
| Tooth Count | 1 |
| Profile Included Angle (Degree) | 55 Degree |
| Material | Carbide |
| Product Type | Laydown Threading Insert |
