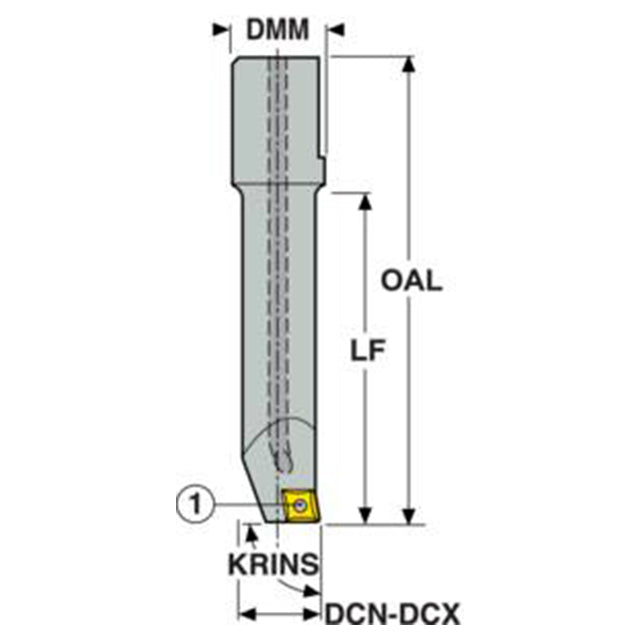

Product Specifications
| Manufacturer Part Number | 00072998 |
| Minimum Cutting Diameter (Decimal Inch) | 0.236" |
| Minimum Cutting Diameter (mm) | 6.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.630" |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.354" |
| Maximum Cutting Diameter (mm) | 9.00mm |
| Shank Diameter (Decimal Inch) | 0.630" |
| Shank Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 1.752" |
| Body Length (mm) | 44.50mm |
| Functional Length (Decimal Inch) | 1.654" |
| Functional Length (mm) | 42.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Product Type | Indexable Boring Bar |
