Product Specifications
| Manufacturer Part Number | 00072625 |
| Minimum Initial Plunge Diameter (Decimal Inch) | 0.630" |
| Minimum Initial Plunge Diameter (mm) | 16.00mm |
| Maximum Initial Plunge Diameter (Decimal Inch) | 393.661" |
| Maximum Initial Plunge Diameter (mm) | 9999.00mm |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.110" |
| Head Length (mm) | 28.19mm |
| Shank Width (Decimal Inch) | 1.000" |
| Shank Width (mm) | 25.40mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.000" |
| Height of Tool Holder Shank (mm) | 25.40mm |
| Functional Width (Decimal Inch) | 1.392" |
| Functional Width (mm) | 35.35mm |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Square shank |

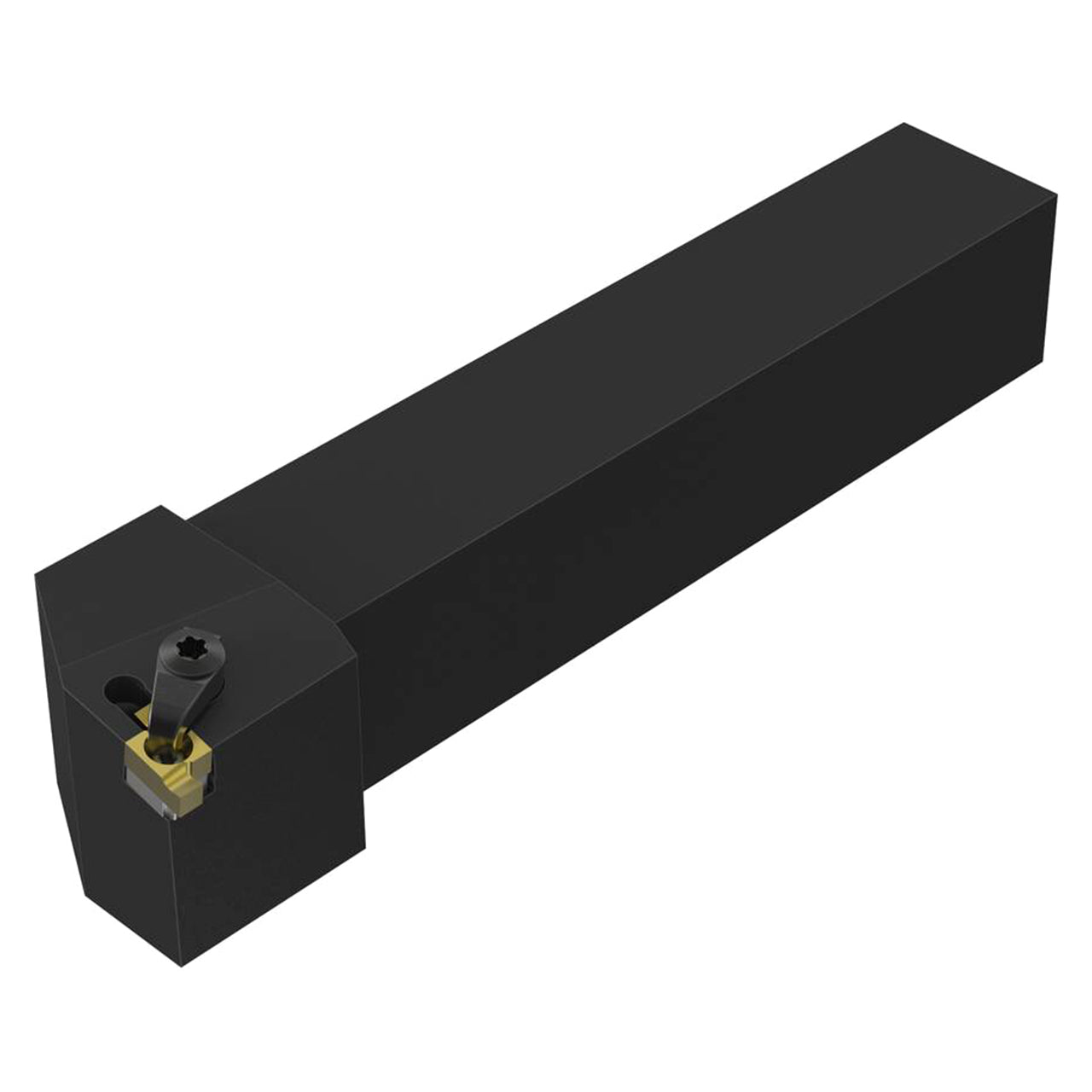

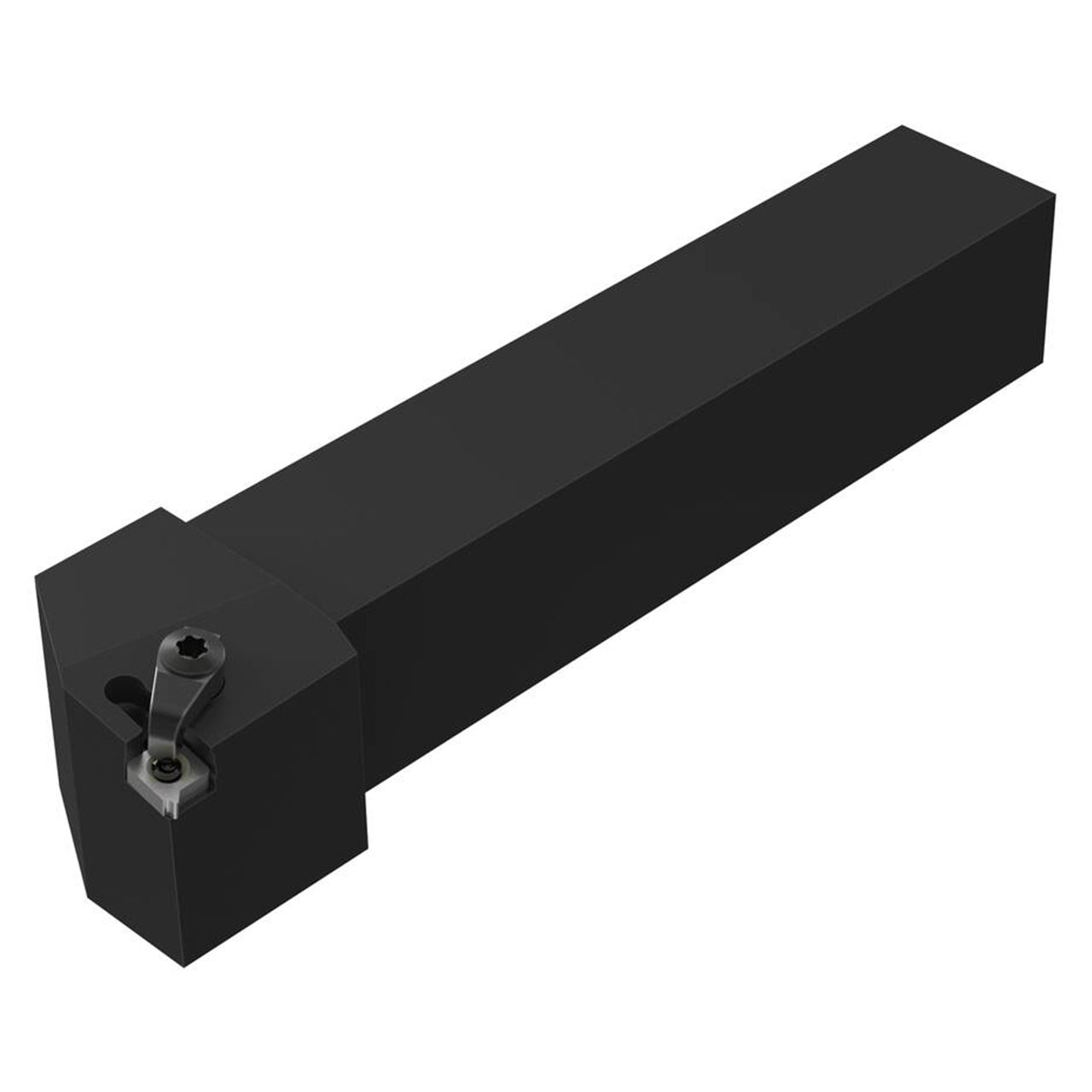

| Product Type | Indexable Grooving Toolholder |
