Product Specifications
| Manufacturer Part Number | 00072566 |
| Functional Length (Decimal Inch) | 4.000" |
| Functional Length (mm) | 101.60mm |
| Head Length (Decimal Inch) | 0.900" |
| Head Length (mm) | 22.86mm |
| Shank Width (Decimal Inch) | 0.500" |
| Shank Width (mm) | 12.70mm |
| Maximum Cutting Depth (Decimal Inch) | 393.661" |
| Maximum Cutting Depth (mm) | 9999.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.500" |
| Height of Tool Holder Shank (mm) | 12.70mm |
| Functional Width (Decimal Inch) | 0.625" |
| Functional Width (mm) | 15.88mm |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Square shank |

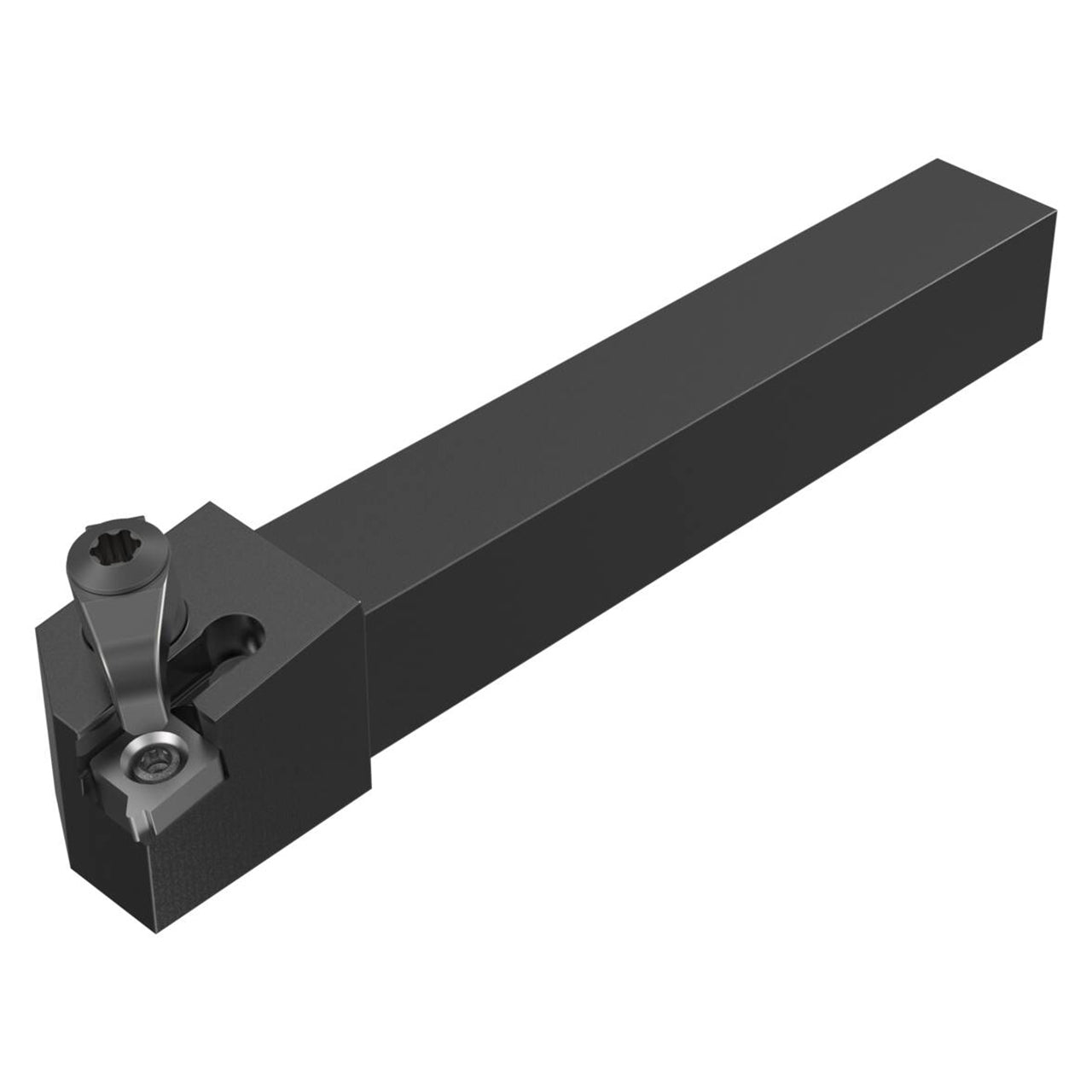

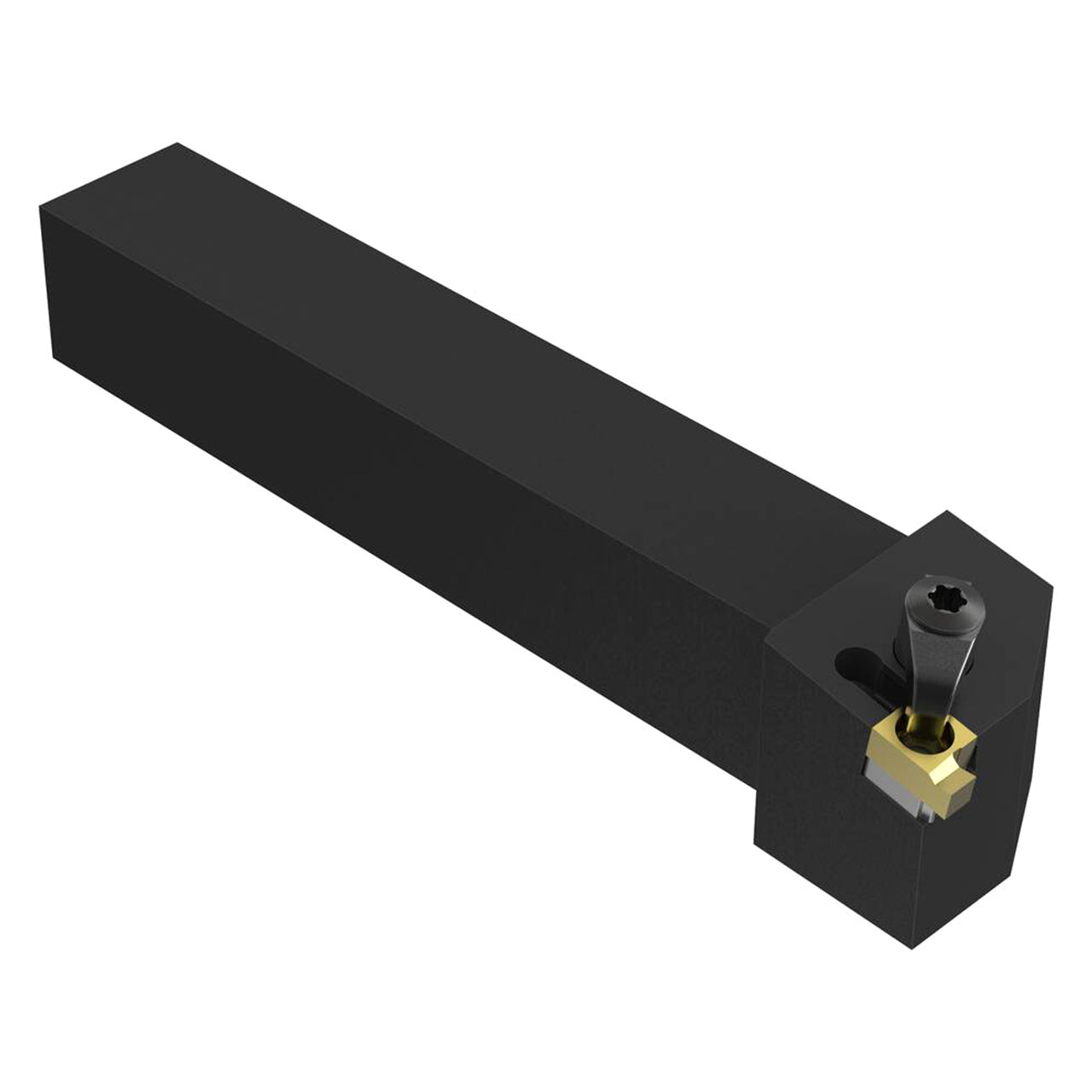

| Product Type | Indexable Grooving Toolholder |
