Product Specifications
| Manufacturer Part Number | 00072552 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.550" |
| Minimum Cutting Diameter Internal (mm) | 13.97mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.375" |
| Connection Diameter Machine Side (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Functional Length (Decimal Inch) | 4.000" |
| Functional Length (mm) | 101.60mm |
| Maximum Cutting Depth (Decimal Inch) | 393.661" |
| Maximum Cutting Depth (mm) | 9999.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.336" |
| Height of Tool Holder Shank (mm) | 8.53mm |
| Shank Type | Cylindrical |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |

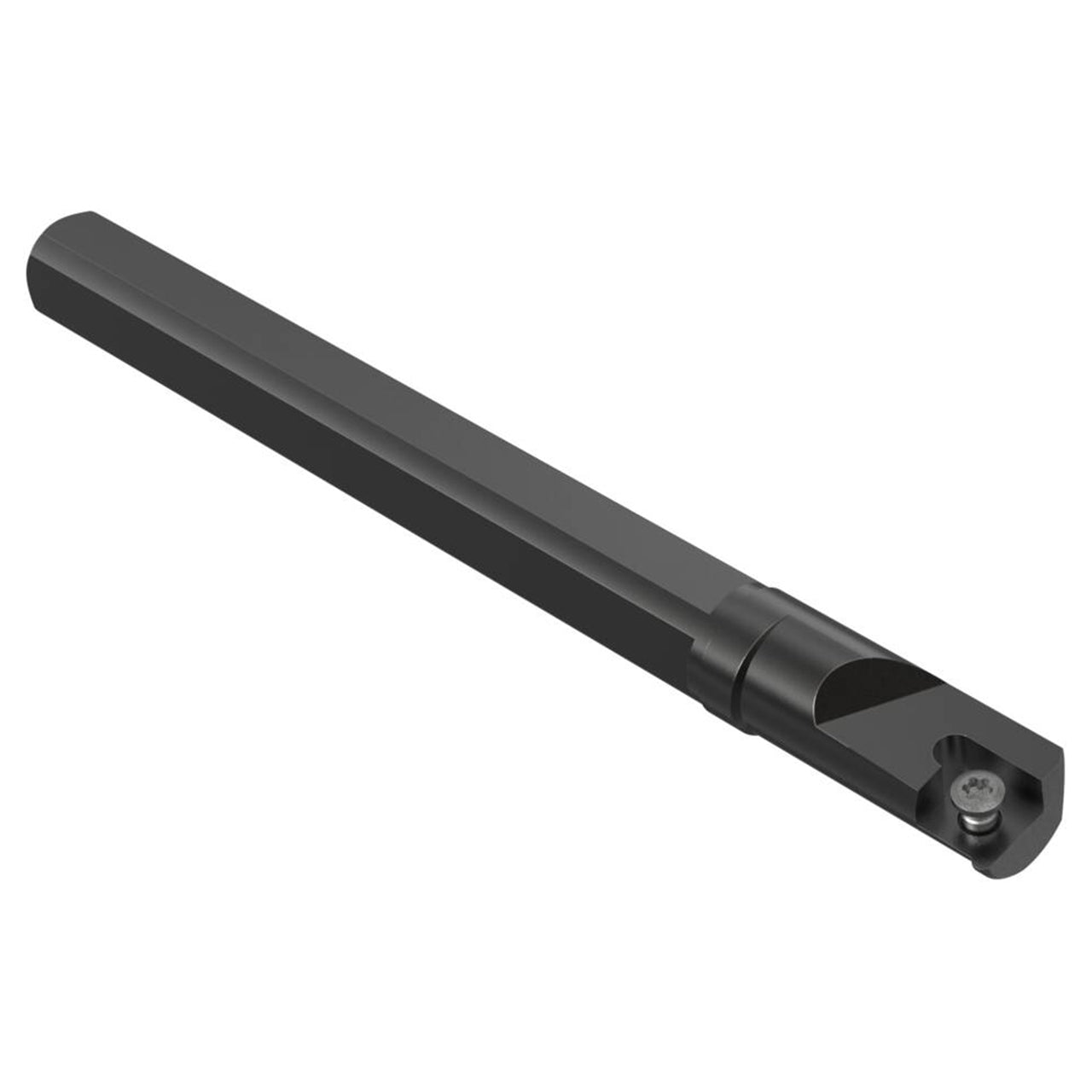

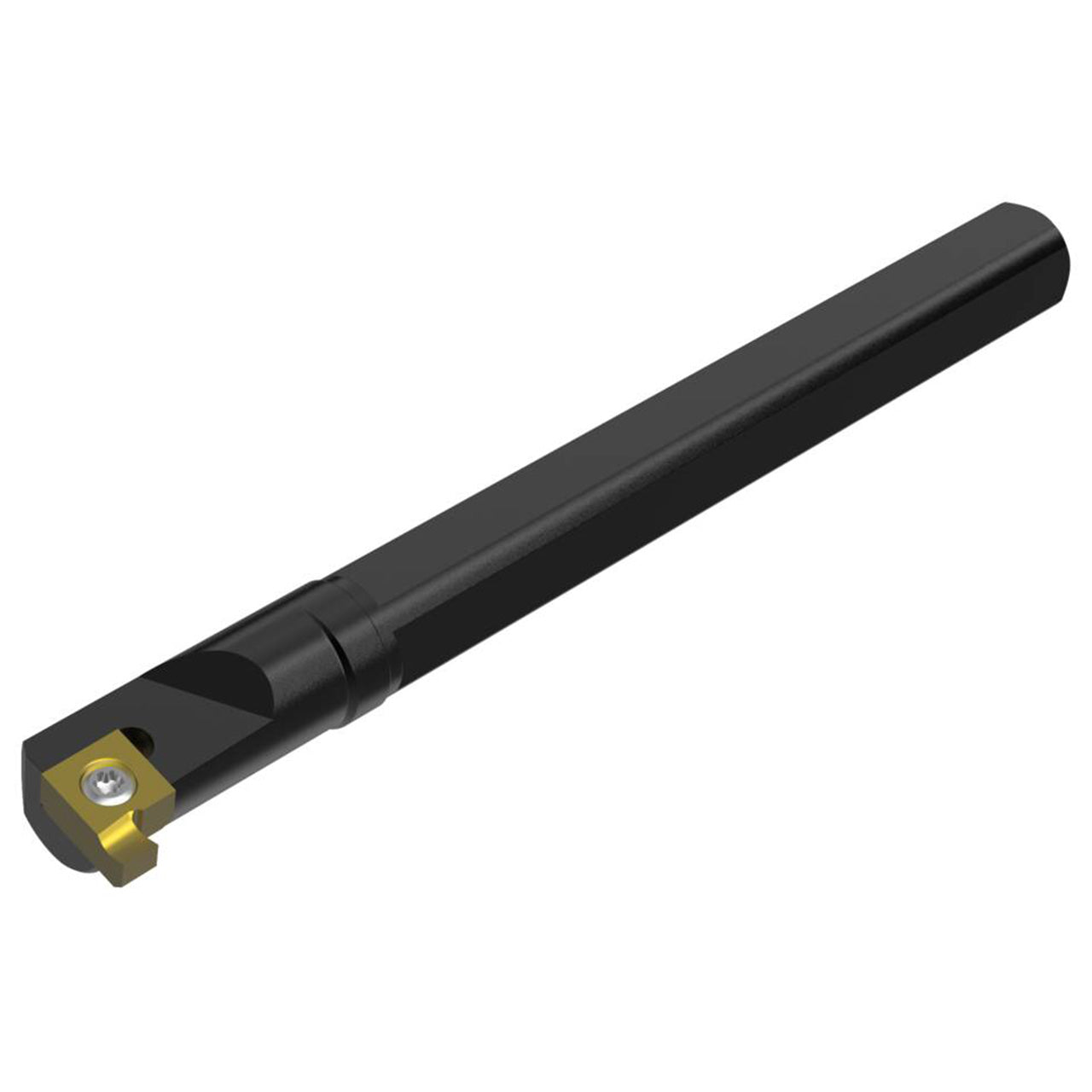

| Product Type | Indexable Threading Toolholder |
