Product Specifications

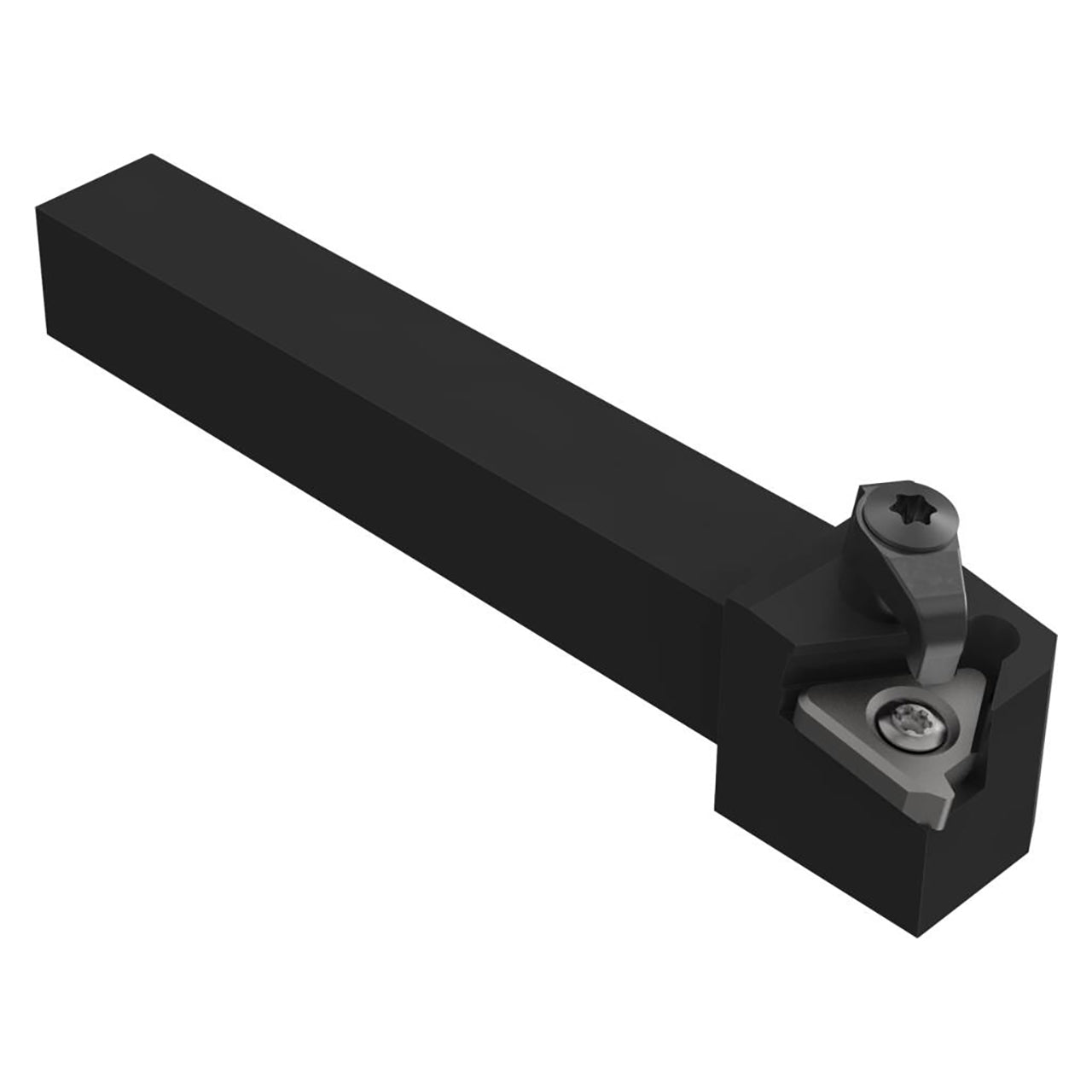

| Manufacturer Part Number | 00072466 |
| Functional Length (Decimal Inch) | 4.000" |
| Functional Length (mm) | 101.60mm |
| Head Length (Decimal Inch) | 0.900" |
| Head Length (mm) | 22.86mm |
| Shank Width (Decimal Inch) | 0.500" |
| Shank Width (mm) | 12.70mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.500" |
| Height of Tool Holder Shank (mm) | 12.70mm |
| Functional Width (Decimal Inch) | 0.625" |
| Functional Width (mm) | 15.88mm |
| Cutting Direction | Left Hand |
| Insert Clamping System | C |
| Shank Type | Square Shank |
| Product Type | Indexable Threading Toolholder |
