Product Specifications
| Manufacturer Part Number | 00072369 |
| Body Diameter (Decimal Inch) | 0.630" |
| Body Diameter (mm) | 16.00mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.787" |
| Minimum Cutting Diameter Internal (mm) | 20.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.575" |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 2.559" |
| Functional Length (mm) | 65.00mm |
| Head Length (Decimal Inch) | 1.614" |
| Head Length (mm) | 41.00mm |
| Usable Length (Decimal Inch) | 1.614" |
| Usable Length (mm) | 41.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.098" |
| Maximum Radial Cutting Depth (mm) | 2.50mm |
| Maximum Cutting Depth (Decimal Inch) | 0.098" |
| Maximum Cutting Depth (mm) | 2.50mm |
| Functional Width (Decimal Inch) | 0.433" |
| Functional Width (mm) | 11.00mm |
| Coolant Supply Property | 1 |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle Code | U |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 93 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 122 Degree |
| Inclination Angle (Degree) | -17 Degree |
| Insert Shape Code | D |
| Shank Type | Seco-Capto |

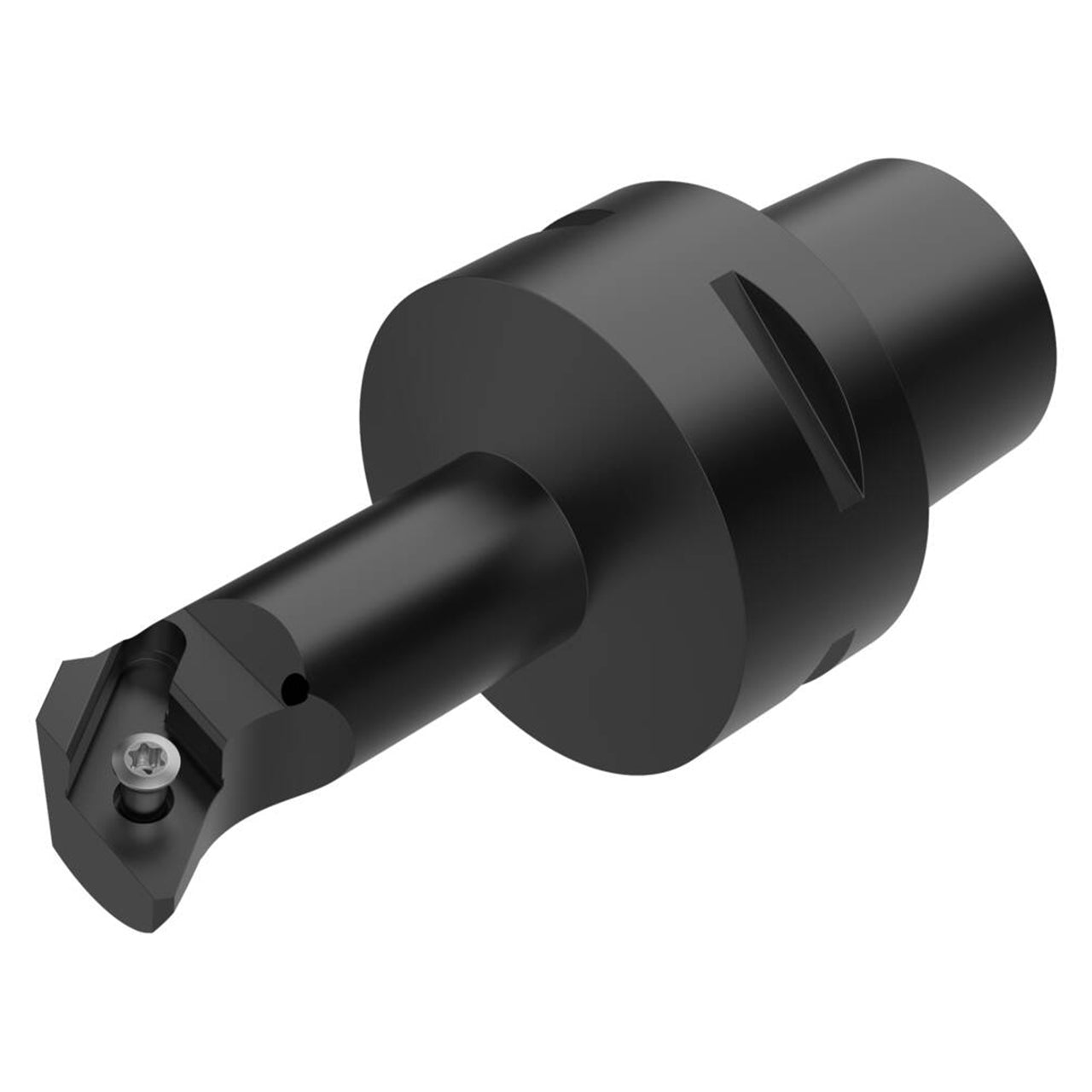

| Product Type | Modular Turning Head |
