Product Specifications
| Manufacturer Part Number | 00072211 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Cutting Diameter (mm) | 38.10mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.972" |
| Maximum Helical Interpolation Hole Diameter (mm) | 75.50mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.894" |
| Minimum Helical Interpolation Hole Diameter (mm) | 73.50mm |
| Functional Length (Decimal Inch) | 3.386" |
| Functional Length (mm) | 86.00mm |
| Protruding Length (Decimal Inch) | 1.634" |
| Protruding Length (mm) | 41.50mm |
| Shank Length (Decimal Inch) | 2.953" |
| Shank Length (mm) | 75.00mm |
| Overall Length (Decimal Inch) | 4.528" |
| Overall Length (mm) | 115.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.591" |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -12.4 Degree |
| Rake Radial Angle (Degree) | -12.4 Degree |
| Rake Orthogonal Angle (Degree) | -12.4 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 1.4 Degree |
| Maximum Rotational Speed (rpm) | 14600 rpm |
| Shank Type | Weldon |

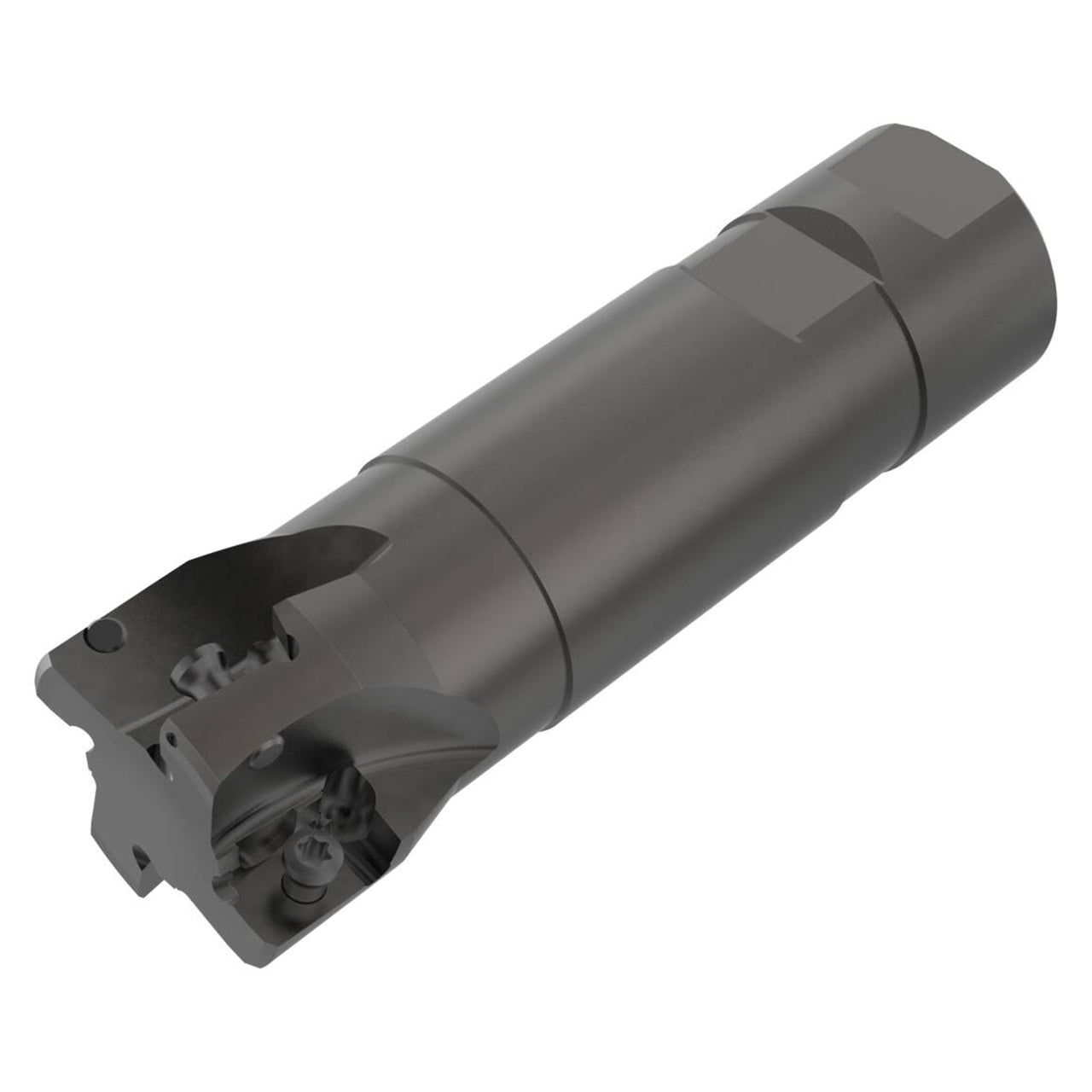

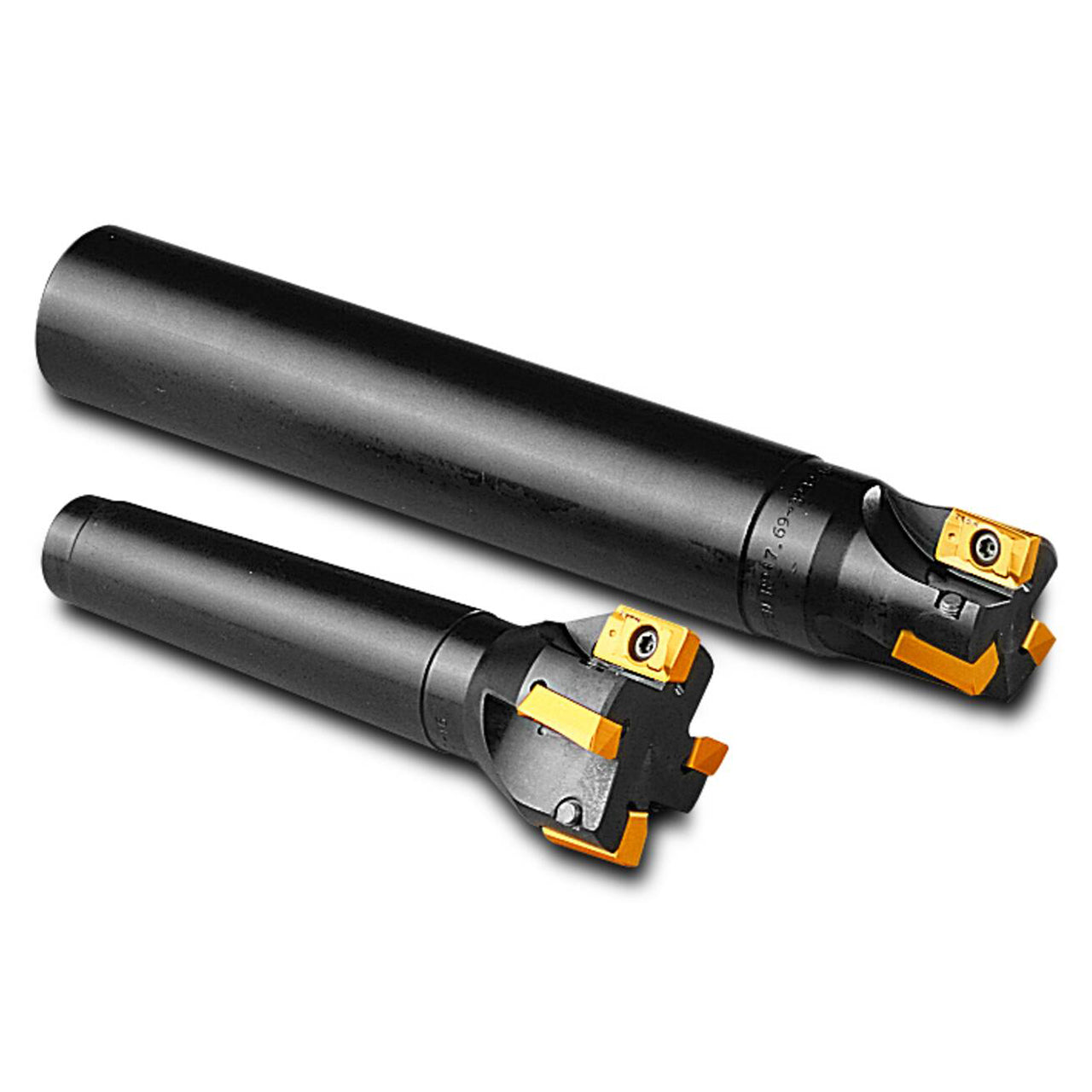

| Product Type | Indexable Square-Shoulder End Mill |
