Product Specifications
| Manufacturer Part Number | 00070083 |
| Cutting Diameter (Decimal Inch) | 0.392" |
| Cutting Diameter (mm) | 9.96mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.647" |
| Maximum Cutting Diameter (mm) | 16.44mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Protruding Length (Decimal Inch) | 1.240" |
| Protruding Length (mm) | 31.50mm |
| Shank Length (Decimal Inch) | 1.906" |
| Shank Length (mm) | 48.40mm |
| Overall Length (Decimal Inch) | 3.150" |
| Overall Length (mm) | 80.00mm |
| Maximum Depth of Cut (mm) | 4.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.158" |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Number of Flute | 1 |
| Maximum Rotational Speed (rpm) | 55600 rpm |
| Shank Type | Weldon |

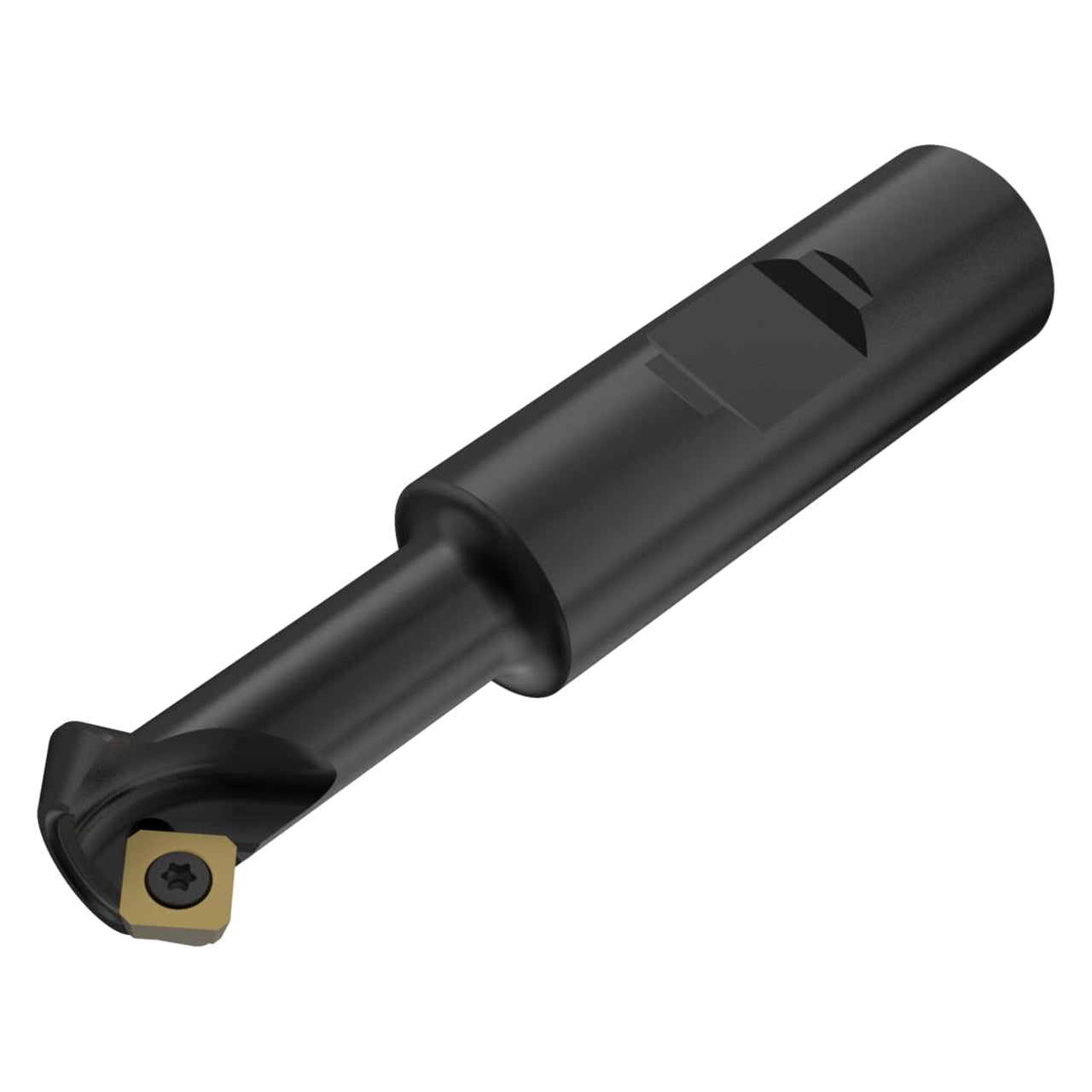

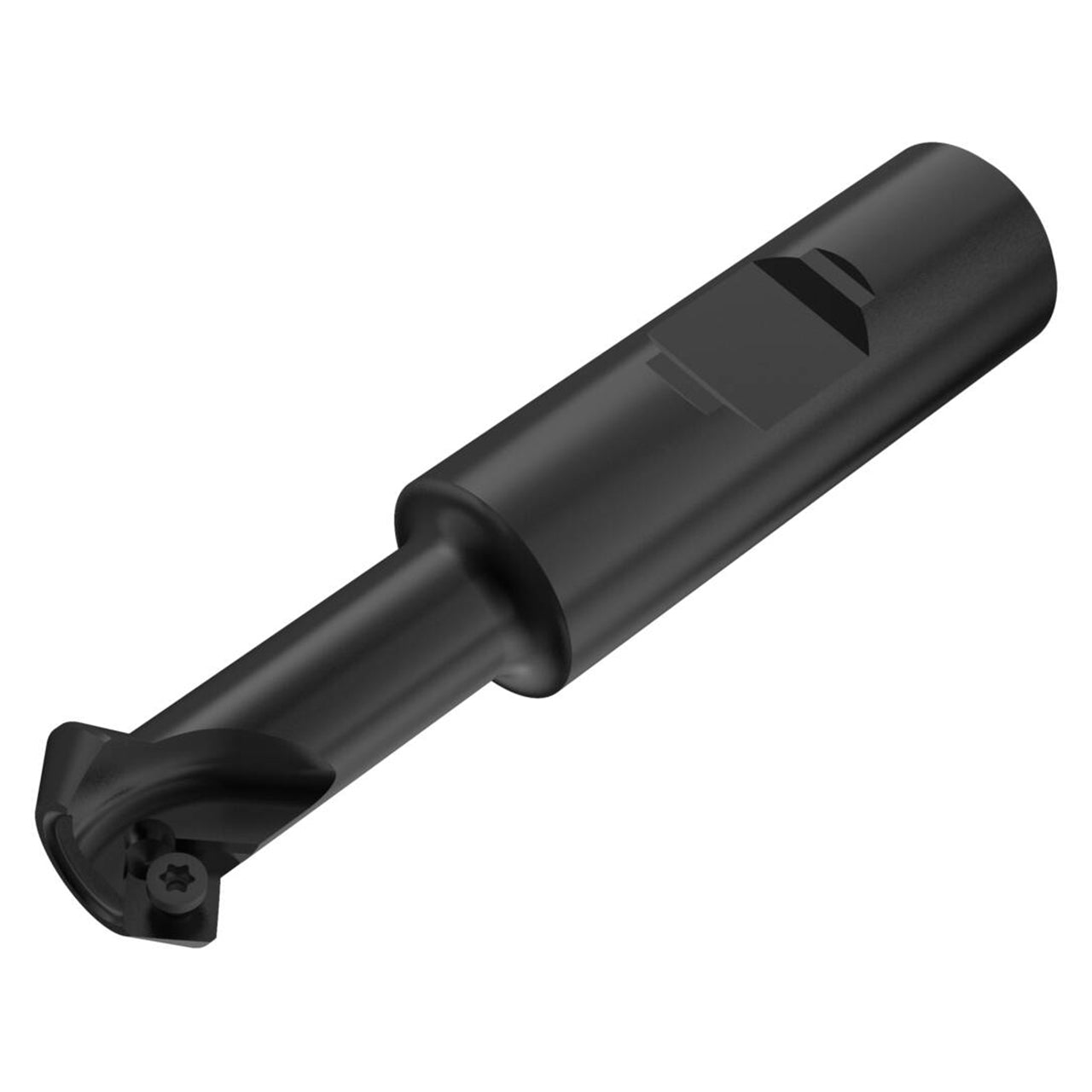

| Product Type | Indexable Square-Shoulder End Mill |
