Product Specifications
| Manufacturer Part Number | 00063812 |
| Cutting Diameter (mm) | 80.00mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 62.00mm |
| Functional Length (mm) | 63.00mm |
| Maximum Depth of Cut (mm) | 14.00mm |
| Depth of Key Way (mm) | 7.11mm |
| Keyway Width (mm) | 12.45mm |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 9600 rpm |
| Shank Type | Arbor |

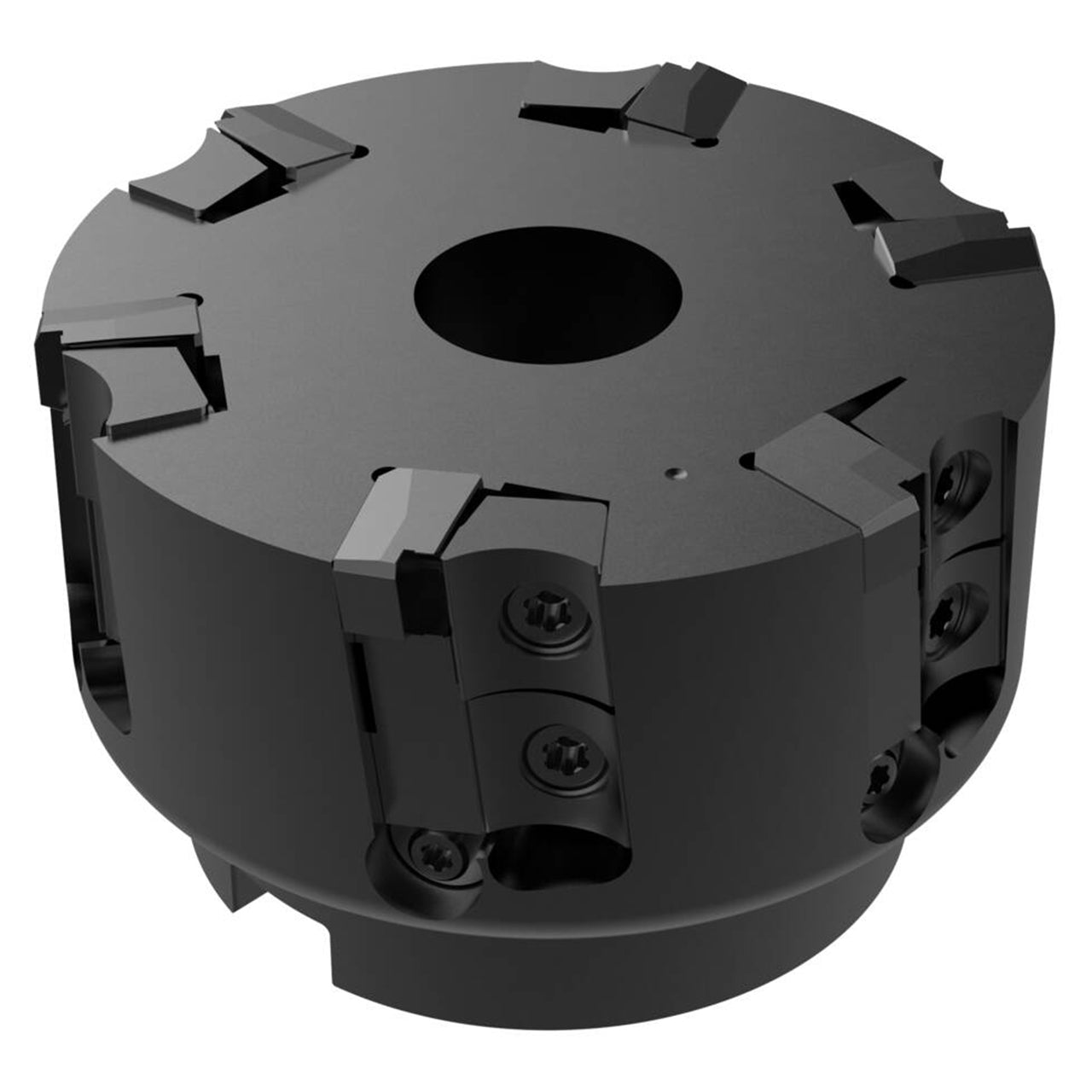

| Product Type | Face Mill for Triangle Insert |
