Product Specifications
| Manufacturer Part Number | 00061868 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.985" |
| Minimum Cutting Diameter Internal (mm) | 25.02mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Functional Length (Decimal Inch) | 10.000" |
| Functional Length (mm) | 254.00mm |
| Head Length (Decimal Inch) | 2.600" |
| Head Length (mm) | 66.04mm |
| Usable Length (Decimal Inch) | 1.575" |
| Usable Length (mm) | 40.00mm |
| Shank Width (Decimal Inch) | 0.961" |
| Shank Width (mm) | 24.40mm |
| Maximum Cutting Depth (Decimal Inch) | 0.295" |
| Maximum Cutting Depth (mm) | 7.49mm |
| Cutting Width (Decimal Inch) | 0.118" |
| Cutting Width (mm) | 3.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.921" |
| Height of Tool Holder Shank (mm) | 23.40mm |
| Functional Width (Decimal Inch) | 0.750" |
| Functional Width (mm) | 19.05mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Cylindrical |

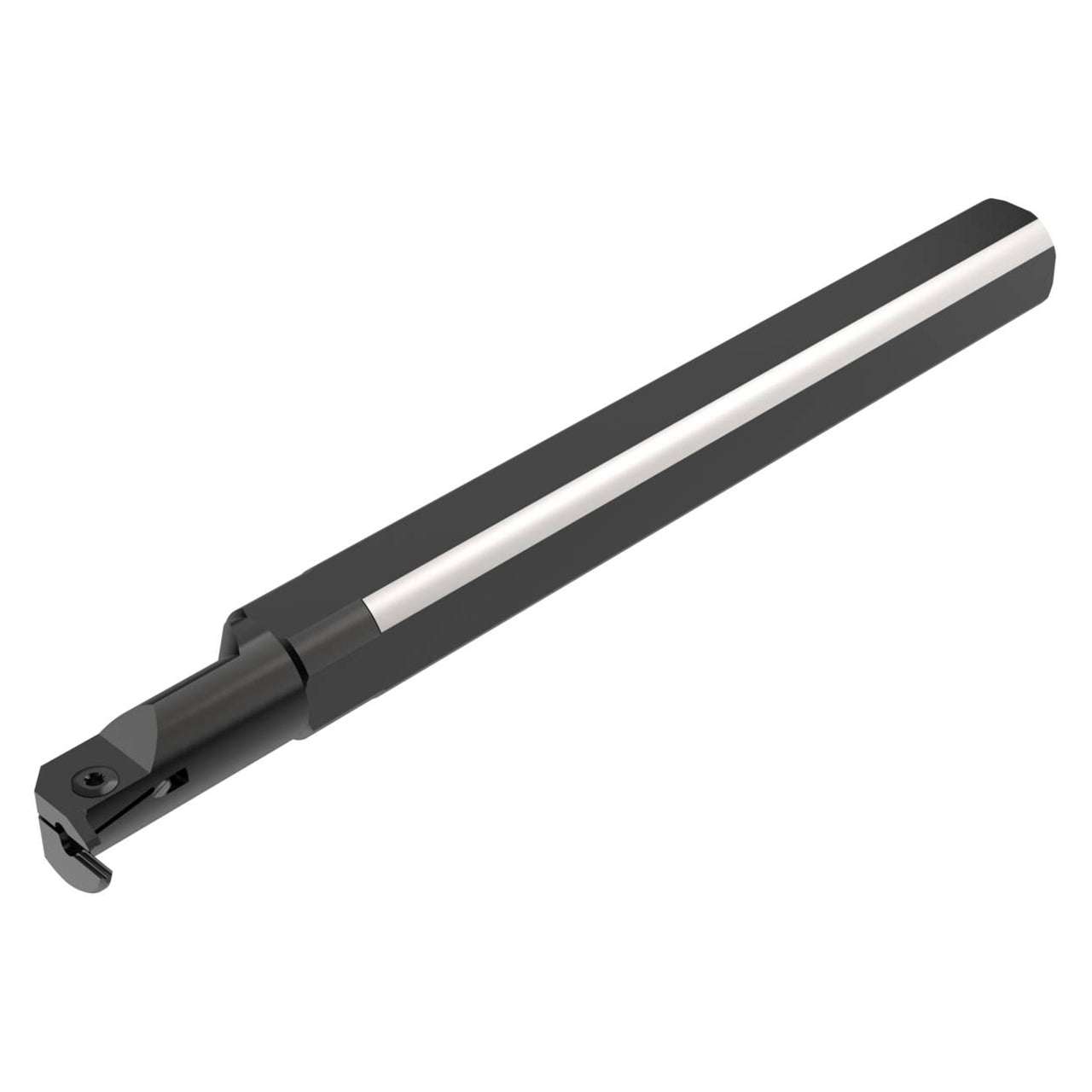

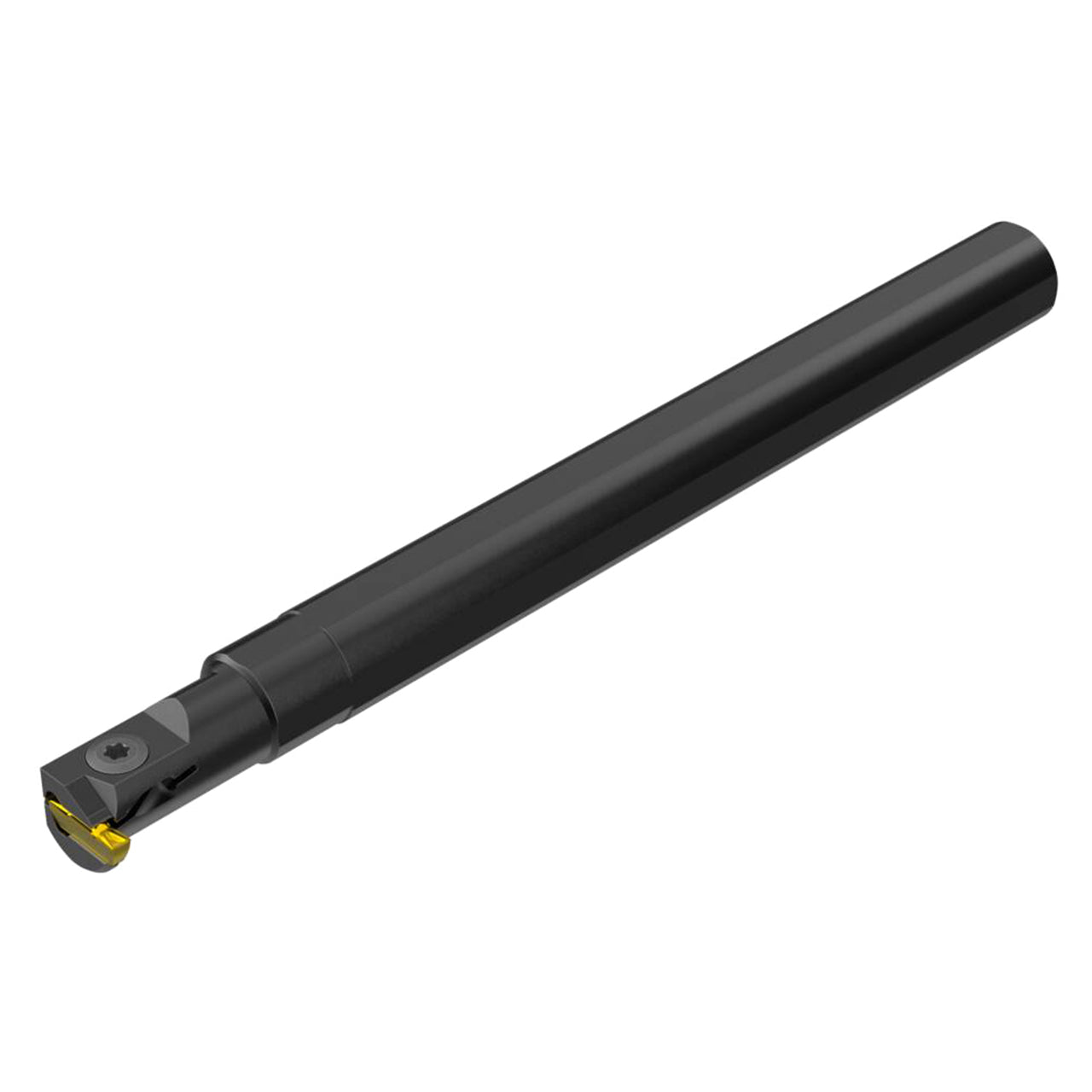

| Product Type | Indexable Grooving Toolholder |
