Product Specifications

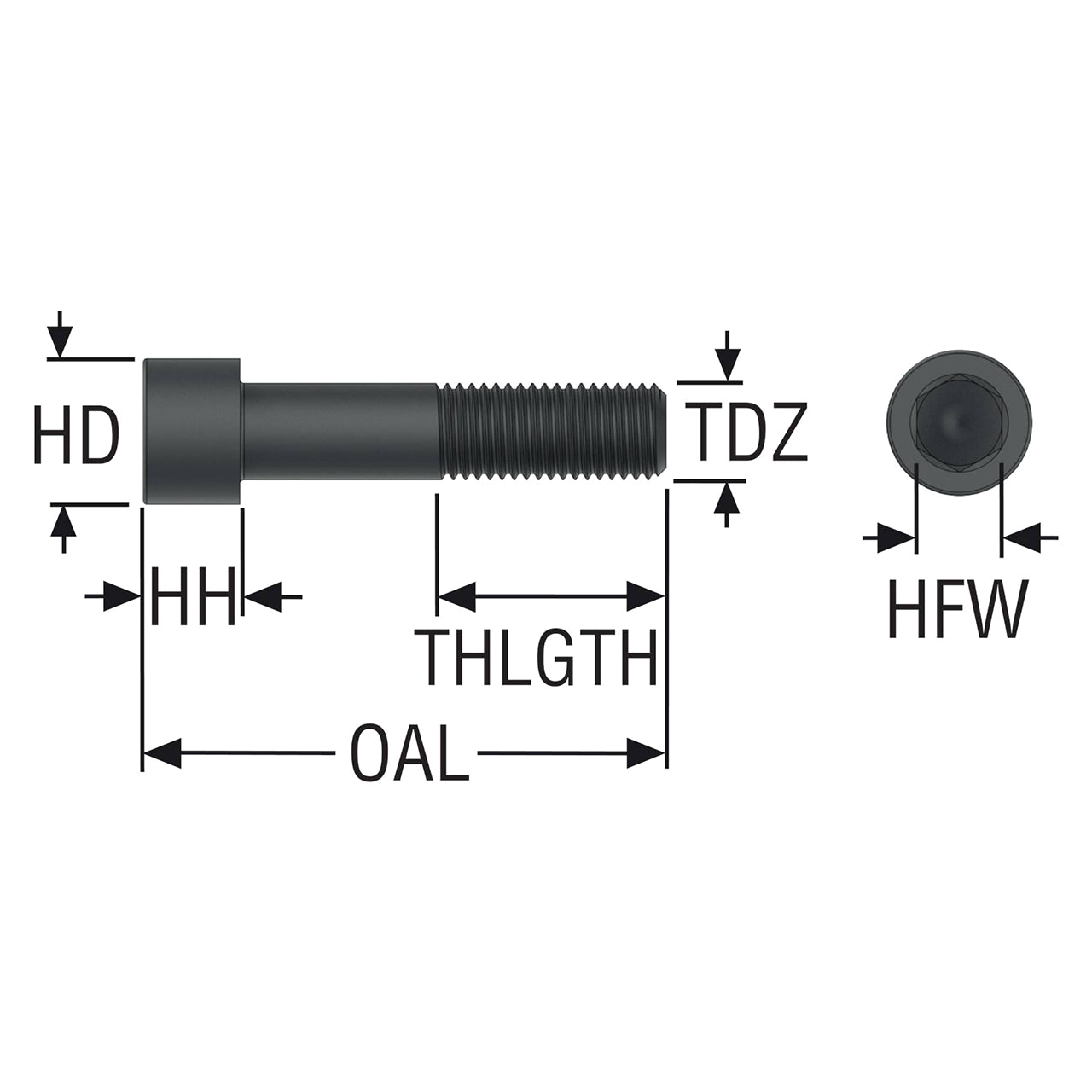

| Manufacturer Part Number | 00061851 |
| Head Diameter (Decimal Inch) | 0.750" |
| Head Diameter (mm) | 19.05mm |
| Thread Diameter Size | 1/2"UNF |
| Head Height (Decimal Inch) | 0.500" |
| Head Height (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 2.960" |
| Overall Length (mm) | 75.18mm |
| Torque (Nm) | 140Nm |
| Thread Length (Decimal Inch) | 2.0 |
| Thread Length (mm) | 50.8 |

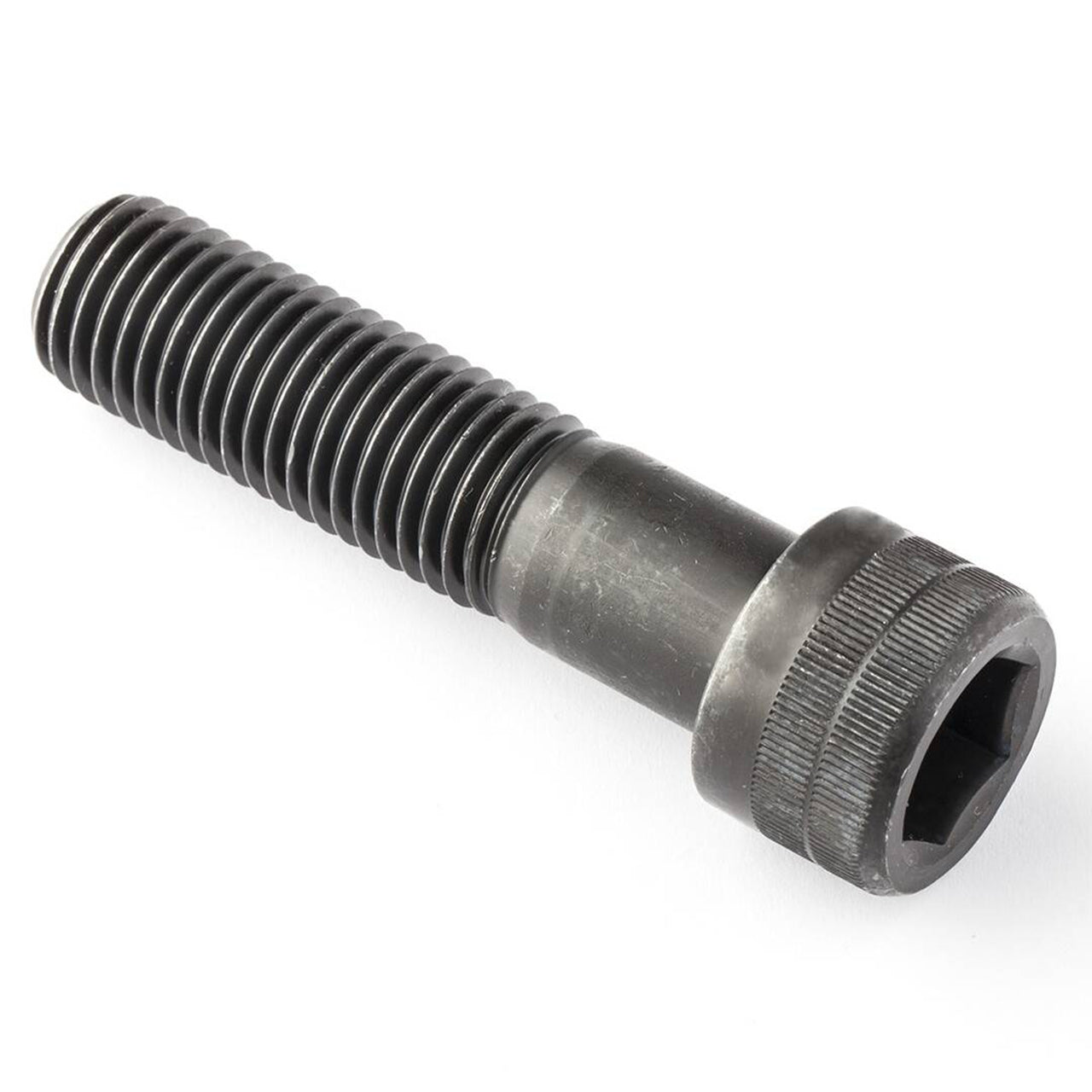

| Product Type | Cap Screw for Indexable |
