Product Specifications
| Manufacturer Part Number | 00059859 |
| Cutting Diameter (Decimal Inch) | 4.028" |
| Cutting Diameter (mm) | 102.30mm |
| Connection Bore Diameter (Decimal Inch) | 1.500" |
| Connection Bore Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.543" |
| Contact Surface Diameter Machine Side (mm) | 90.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 4.028" |
| Maximum Cutting Diameter (mm) | 102.30mm |
| Functional Length (Decimal Inch) | 2.374" |
| Functional Length (mm) | 60.30mm |
| Depth of Key Way (Decimal Inch) | 0.382" |
| Depth of Key Way (mm) | 9.70mm |
| Keyway Width (Decimal Inch) | 1.500" |
| Keyway Width (mm) | 38.10mm |
| Rake Radial Angle (Degree) | -5.5 Degree |
| Rake Radial Angle (Degree) | -5.5 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -7 Degree |
| Tool Cutting Edge Angle (Degree) | 75 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 75 Degree |
| Maximum Rotational Speed (rpm) | 8100 rpm |
| Shank Type | Arbor |

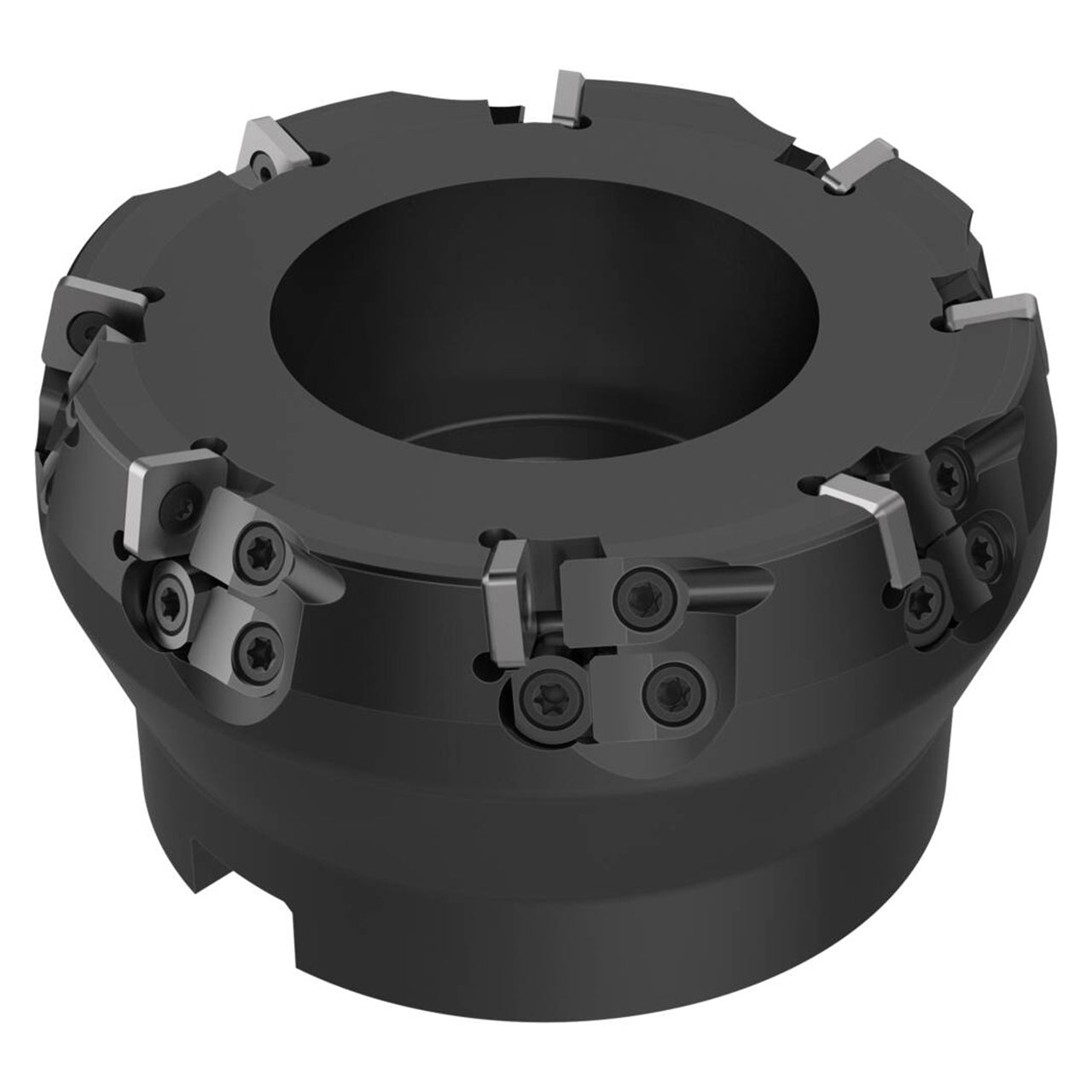

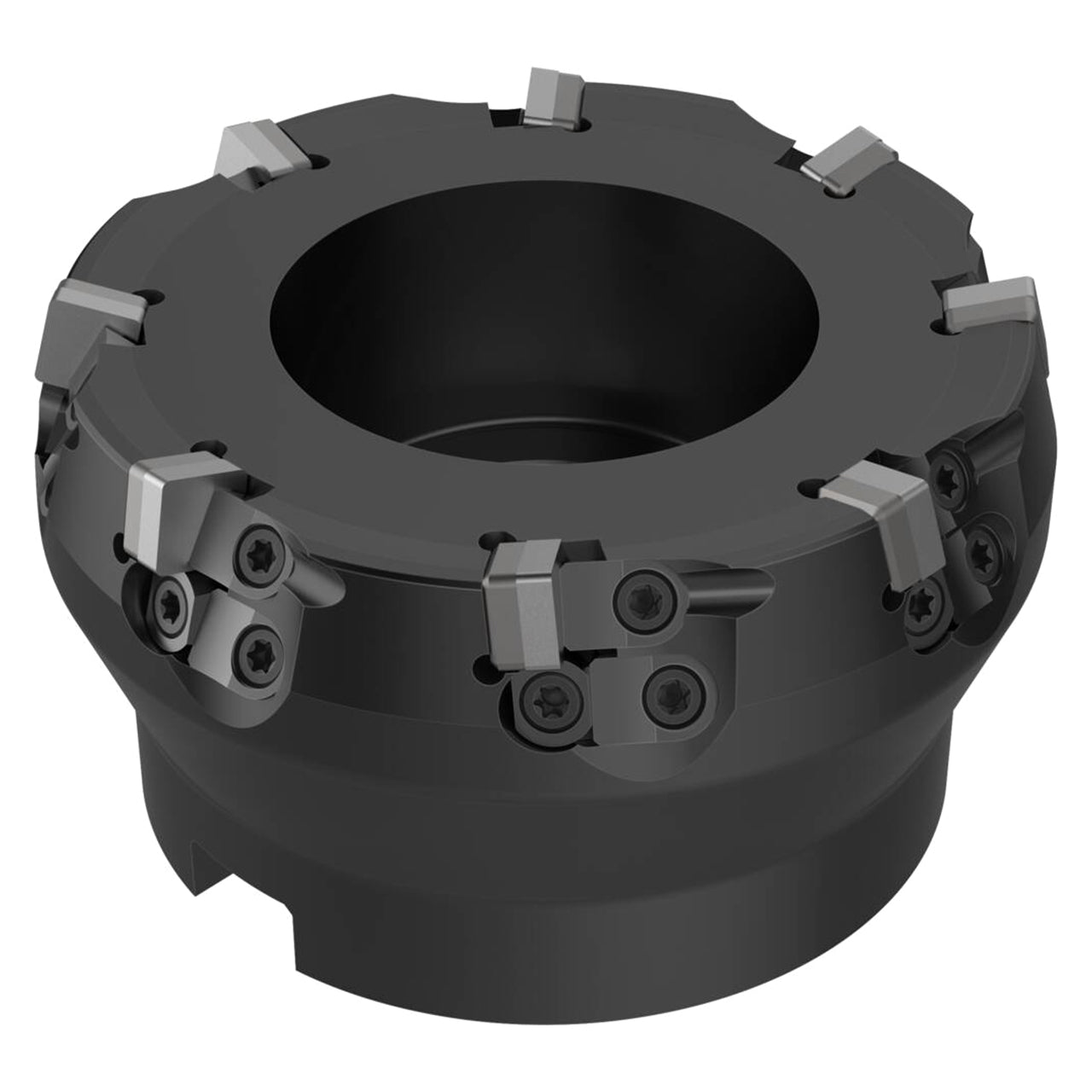

| Product Type | Face Mill for Square Insert |
