Product Specifications
| Manufacturer Part Number | 00057604 |
| Body Diameter (Decimal Inch) | 0.630" |
| Body Diameter (mm) | 16.00mm |
| Body Diameter 1 (Decimal Inch) | 1.260" |
| Body Diameter 1 (mm) | 32.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.315" |
| Connection Bore Diameter (mm) | 8.00mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.709" |
| Minimum Cutting Diameter (mm) | 18.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.925" |
| Maximum Cutting Diameter (mm) | 23.50mm |
| Body Length (Decimal Inch) | 3.740" |
| Body Length (mm) | 95.00mm |
| Body Length 1 (Decimal Inch) | 1.378" |
| Body Length 1 (mm) | 35.00mm |
| Protruding Length (Decimal Inch) | 5.906" |
| Protruding Length (mm) | 150.00mm |
| Usable Length (Decimal Inch) | 5.118" |
| Usable Length (mm) | 130.00mm |
| Overall Length (Decimal Inch) | 7.087" |
| Overall Length (mm) | 180.00mm |

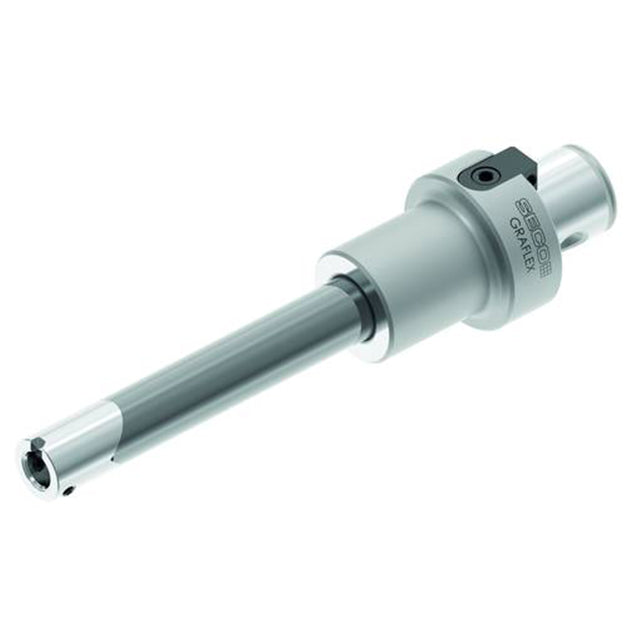

| Product Type | Boring Head Shank Extension |
