Product Specifications
| Manufacturer Part Number | 00056749 |
| Body Diameter (Decimal Inch) | 0.787" |
| Body Diameter (mm) | 20.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.433" |
| Connection Bore Diameter (mm) | 11.00mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.906" |
| Minimum Cutting Diameter (mm) | 23.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.221" |
| Maximum Cutting Diameter (mm) | 31.00mm |
| Body Length (Decimal Inch) | 6.299" |
| Body Length (mm) | 160.00mm |
| Functional Length (Decimal Inch) | 9.843" |
| Functional Length (mm) | 250.00mm |
| Protruding Length (Decimal Inch) | 8.268" |
| Protruding Length (mm) | 210.00mm |
| Usable Length (Decimal Inch) | 7.874" |
| Usable Length (mm) | 200.00mm |
| Overall Length (Decimal Inch) | 8.347" |
| Overall Length (mm) | 212.00mm |

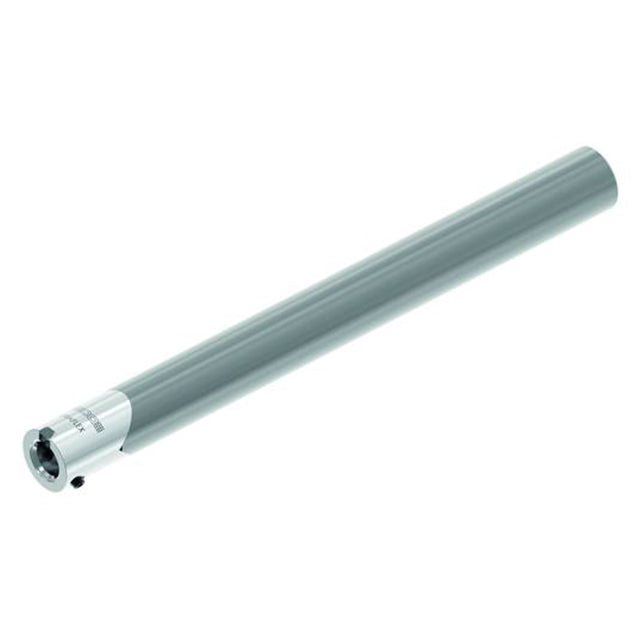

| Product Type | Boring Head Shank |
