Product Specifications
| Manufacturer Part Number | 00056644 |
| Minimum Cutting Diameter (Decimal Inch) | 0.748" |
| Minimum Cutting Diameter (mm) | 19.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.630" |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.945" |
| Maximum Cutting Diameter (mm) | 24.00mm |
| Shank Diameter (Decimal Inch) | 0.630" |
| Shank Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 2.835" |
| Body Length (mm) | 72.00mm |
| Functional Length (Decimal Inch) | 2.756" |
| Functional Length (mm) | 70.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |

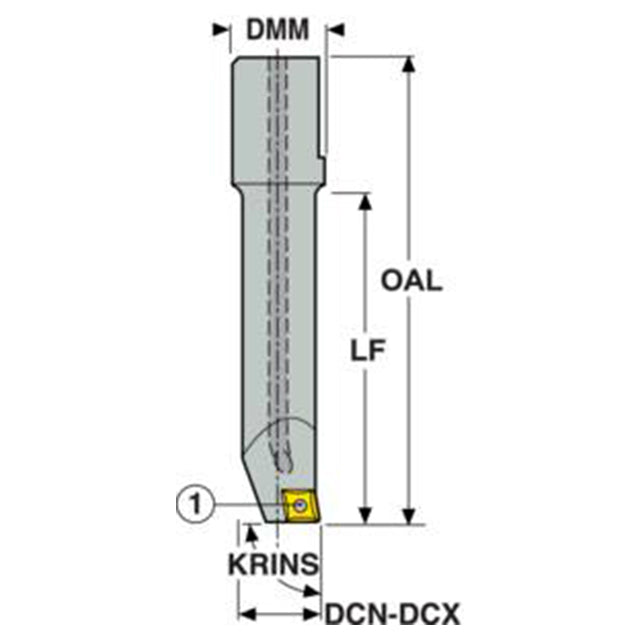

| Product Type | Indexable Boring Bar |
