Product Specifications
| Manufacturer Part Number | 00055205 |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Shank Width (Decimal Inch) | 0.961" |
| Shank Width (mm) | 24.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Height of Tool Holder Shank (mm) | 23.40mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.921" |
| Functional Length (Decimal Inch) | 8.000" |
| Functional Length (mm) | 203.20mm |
| Head Length (Decimal Inch) | 1.693" |
| Head Length (mm) | 43.00mm |
| Shank Type | Cylindrical |
| Torque (Nm) | 6Nm |
| Functional Width (Decimal Inch) | 0.169" |
| Functional Width (mm) | 4.30mm |

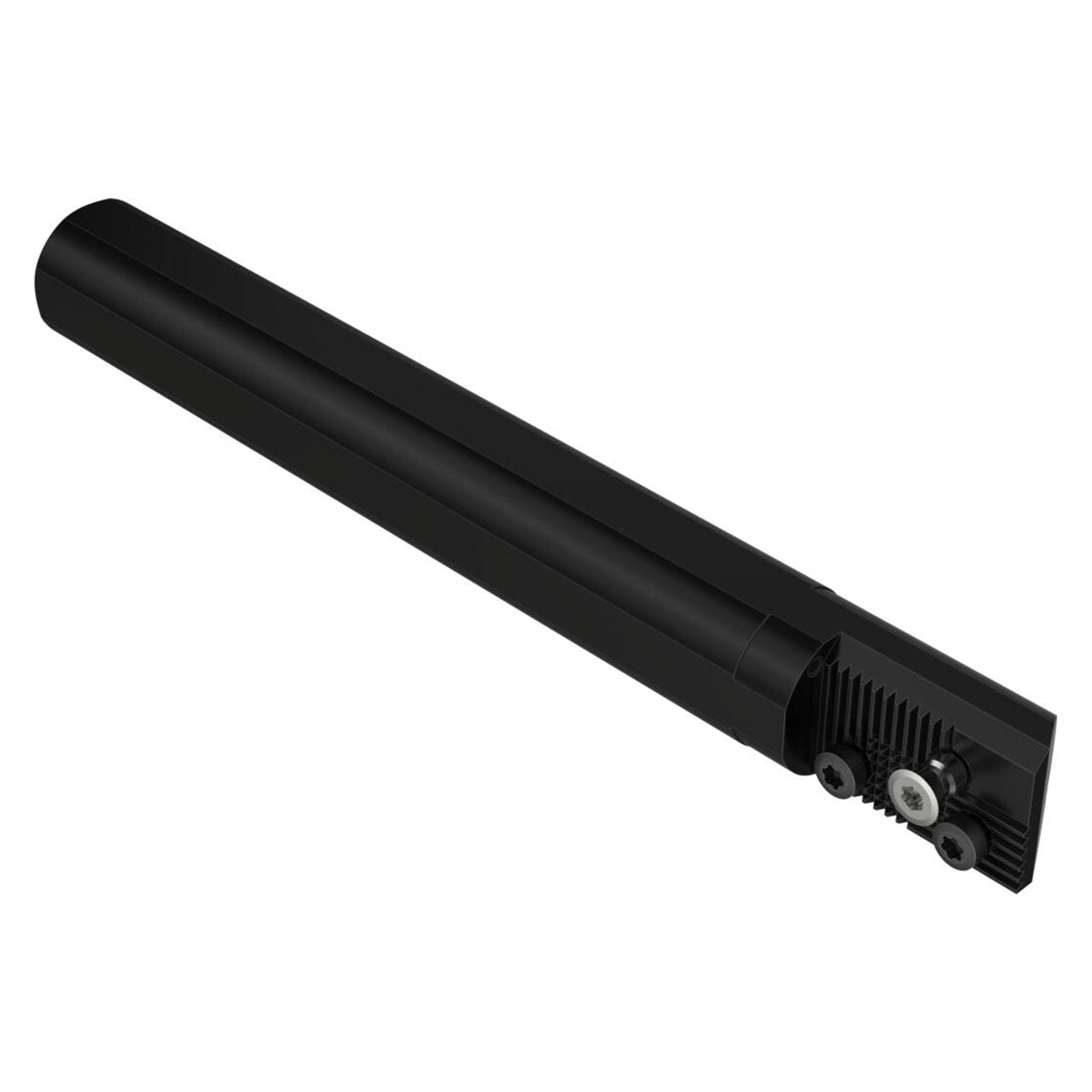

| Product Type | Indexable Boring Bar |
