Product Specifications
| Manufacturer Part Number | 00052353 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 4.724" |
| Minimum Cutting Diameter Internal 3 (mm) | 120.00mm |
| Functional Length (Decimal Inch) | 4.500" |
| Functional Length (mm) | 114.30mm |
| Head Length (Decimal Inch) | 1.737" |
| Head Length (mm) | 44.12mm |
| Shank Length (Decimal Inch) | 2.763" |
| Shank Length (mm) | 70.18mm |
| Shank Width (Decimal Inch) | 0.750" |
| Shank Width (mm) | 19.05mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.254" |
| Maximum Radial Cutting Depth (mm) | 6.45mm |
| Maximum Cutting Depth (Decimal Inch) | 0.280" |
| Maximum Cutting Depth (mm) | 7.12mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.750" |
| Height of Tool Holder Shank (mm) | 19.05mm |
| Functional Height (Decimal Inch) | 0.751" |
| Functional Height (mm) | 19.08mm |
| Functional Width (Decimal Inch) | 1.000" |
| Functional Width (mm) | 25.40mm |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | -13 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 117.25 Degree |
| Tool Cutting Edge Angle Code | T |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 117.75 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 117.25 Degree |
| Inclination Angle (Degree) | -13 Degree |
| Maximum Ramping Angle (Degree) | 26.811 Degree |
| Insert Shape Code | V |
| Shank Type | Square shank |

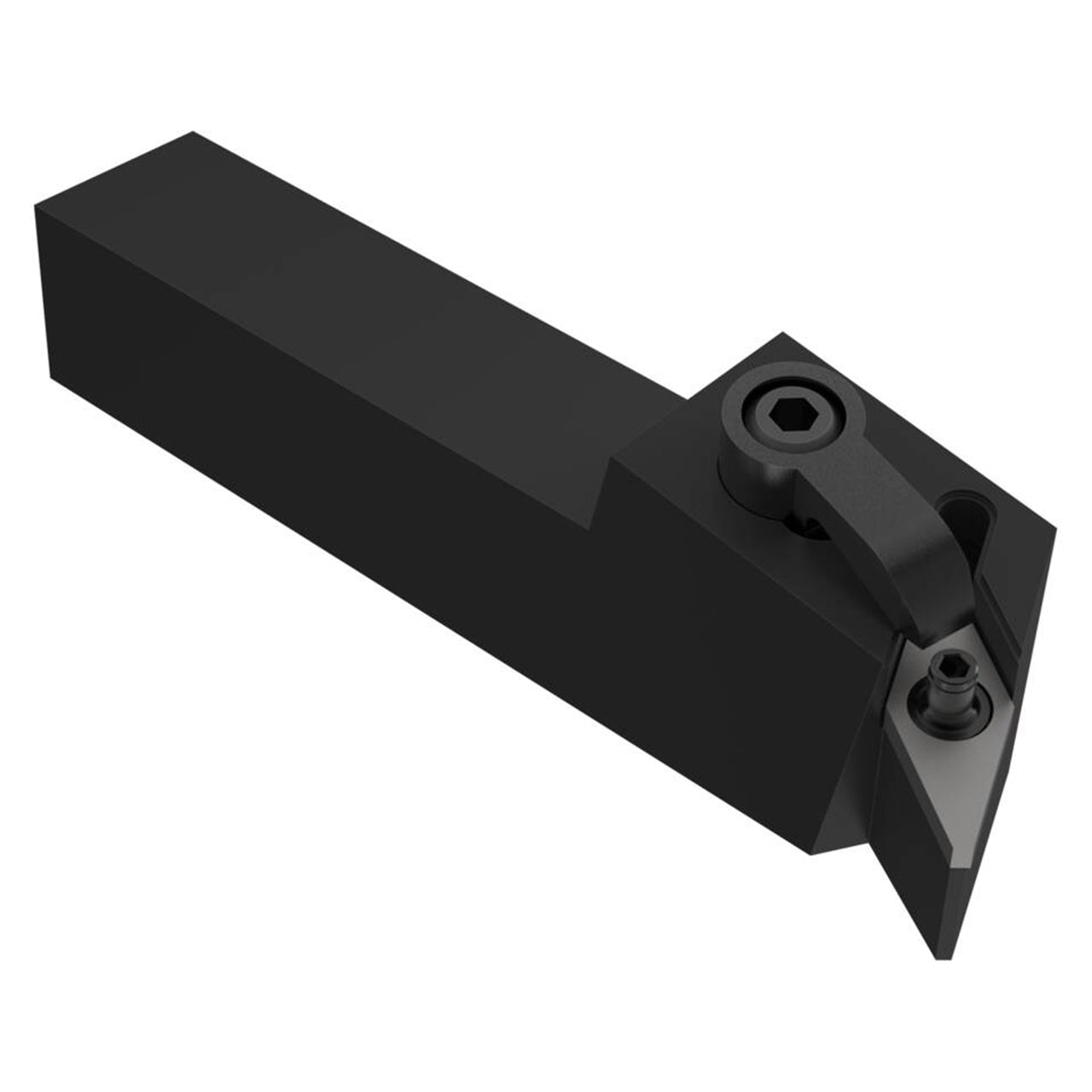

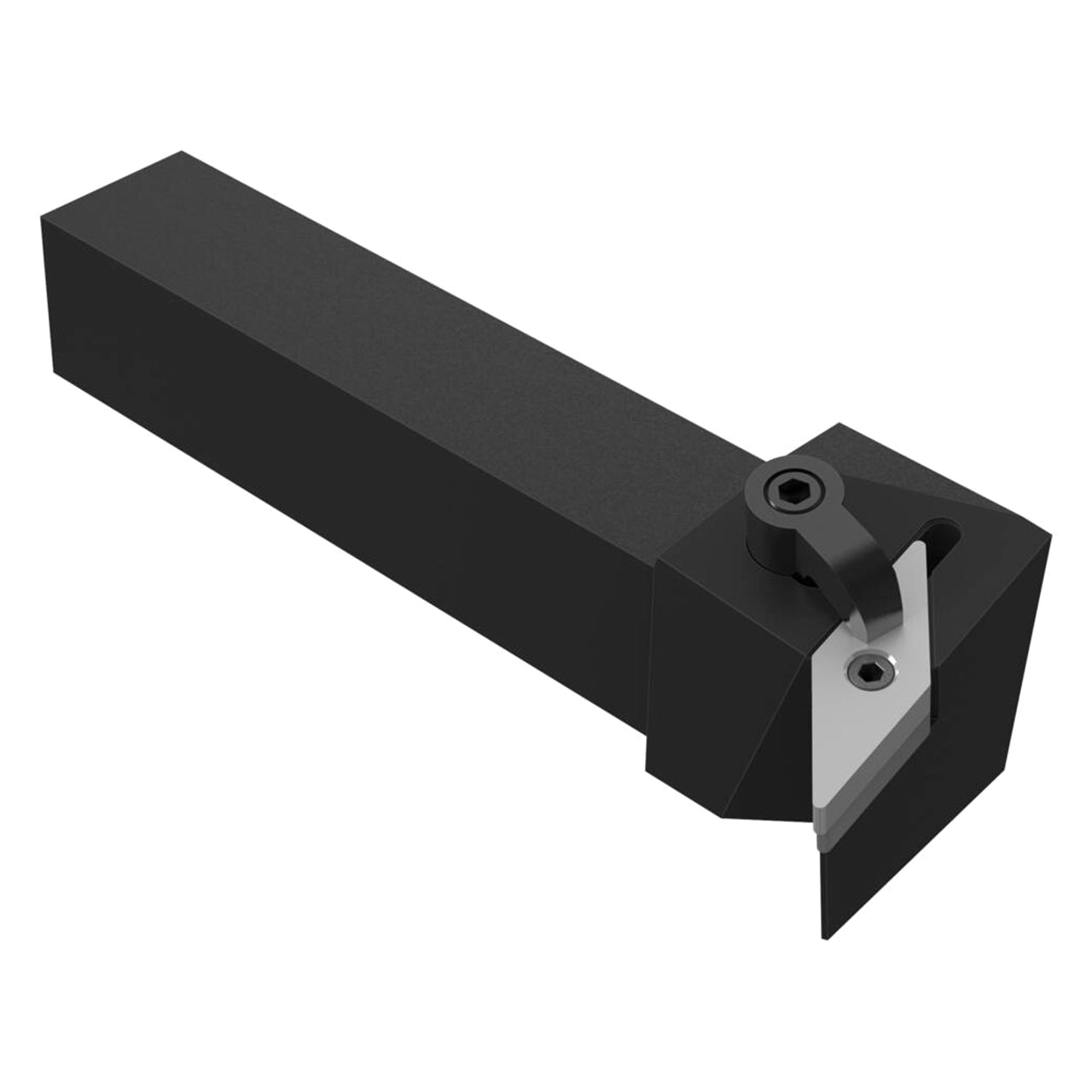

| Product Type | Indexable Turning Toolholder |
