Product Specifications
| Manufacturer Part Number | 00048374 |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 0.770" |
| Head Length (mm) | 19.55mm |
| Shank Length (Decimal Inch) | 5.232" |
| Shank Length (mm) | 132.90mm |
| Shank Width (Decimal Inch) | 1.000" |
| Shank Width (mm) | 25.40mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.250" |
| Height of Tool Holder Shank (mm) | 31.75mm |
| Functional Height (Decimal Inch) | 1.250" |
| Functional Height (mm) | 31.75mm |
| Functional Width (Decimal Inch) | 1.020" |
| Functional Width (mm) | 25.91mm |
| Cutting Direction | Left Hand |
| Insert Clamping System | T |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | A |
| Insert Shape Code | R |
| Shank Type | Square shank |

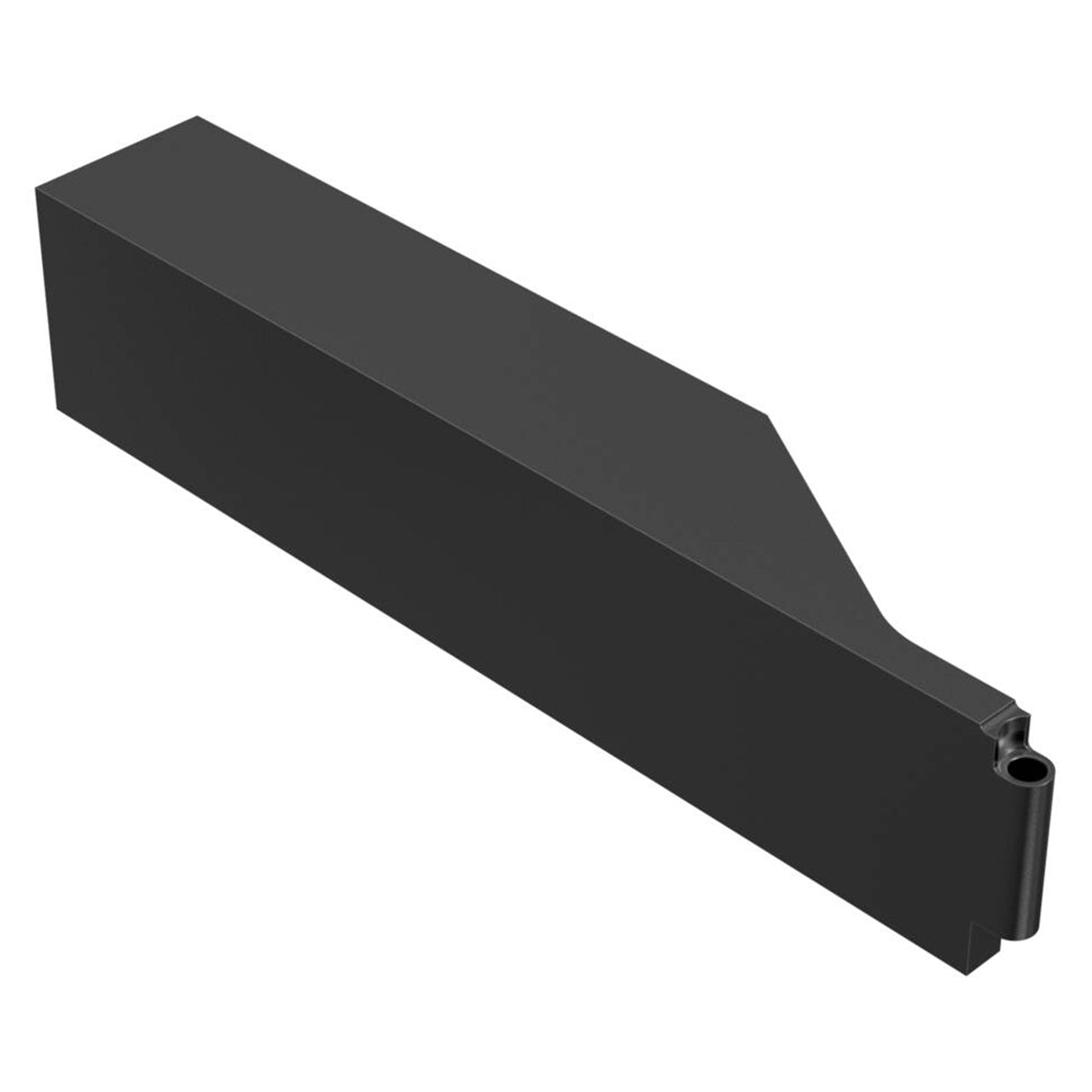

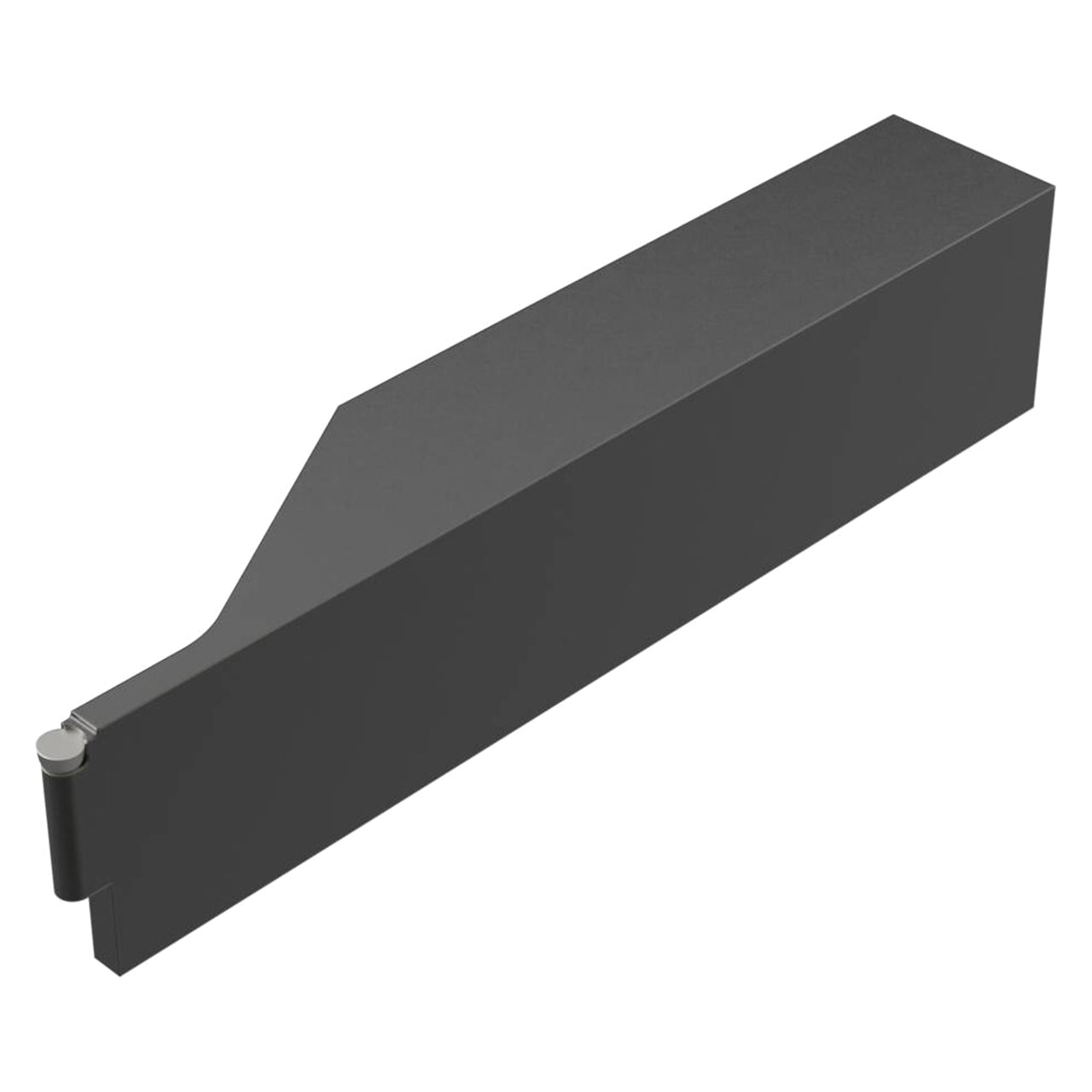

| Product Type | Indexable Turning Toolholder |
