Product Specifications
| Manufacturer Part Number | 00048125 |
| Body Diameter 1 (Decimal Inch) | 0.472" |
| Body Diameter 1 (mm) | 12.00mm |
| Body Diameter 2 (Decimal Inch) | 1.107" |
| Body Diameter 2 (mm) | 28.13mm |
| Connection Bore Diameter (Decimal Inch) | 0.236" |
| Connection Bore Diameter (mm) | 6.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Minimum Connection Bore Diameter (mm) | 6.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.236" |
| Maximum Connection Bore Diameter (mm) | 6.00mm |
| Body Length (Decimal Inch) | 4.760" |
| Body Length (mm) | 120.90mm |
| Body Length 1 (Decimal Inch) | 1.260" |
| Body Length 1 (mm) | 32.00mm |
| Functional Length (Decimal Inch) | 4.488" |
| Functional Length (mm) | 114.00mm |
| Minimum Functional Length (Decimal Inch) | 3.996" |
| Protruding Length (Decimal Inch) | 5.512" |
| Protruding Length (mm) | 140.00mm |
| Clamping Length (Decimal Inch) | 1.024" |
| Clamping Length (mm) | 26.00mm |
| Overall Length (Decimal Inch) | 8.205" |
| Overall Length (mm) | 208.40mm |
| Connection Bore Depth (mm) | 40.00mm |
| Body Half Taper Angle 1 (Degree) | 5 Degree |
| Body Half Taper Angle Degree) | 3 Degree |
| Data Chip Provision | 1 |

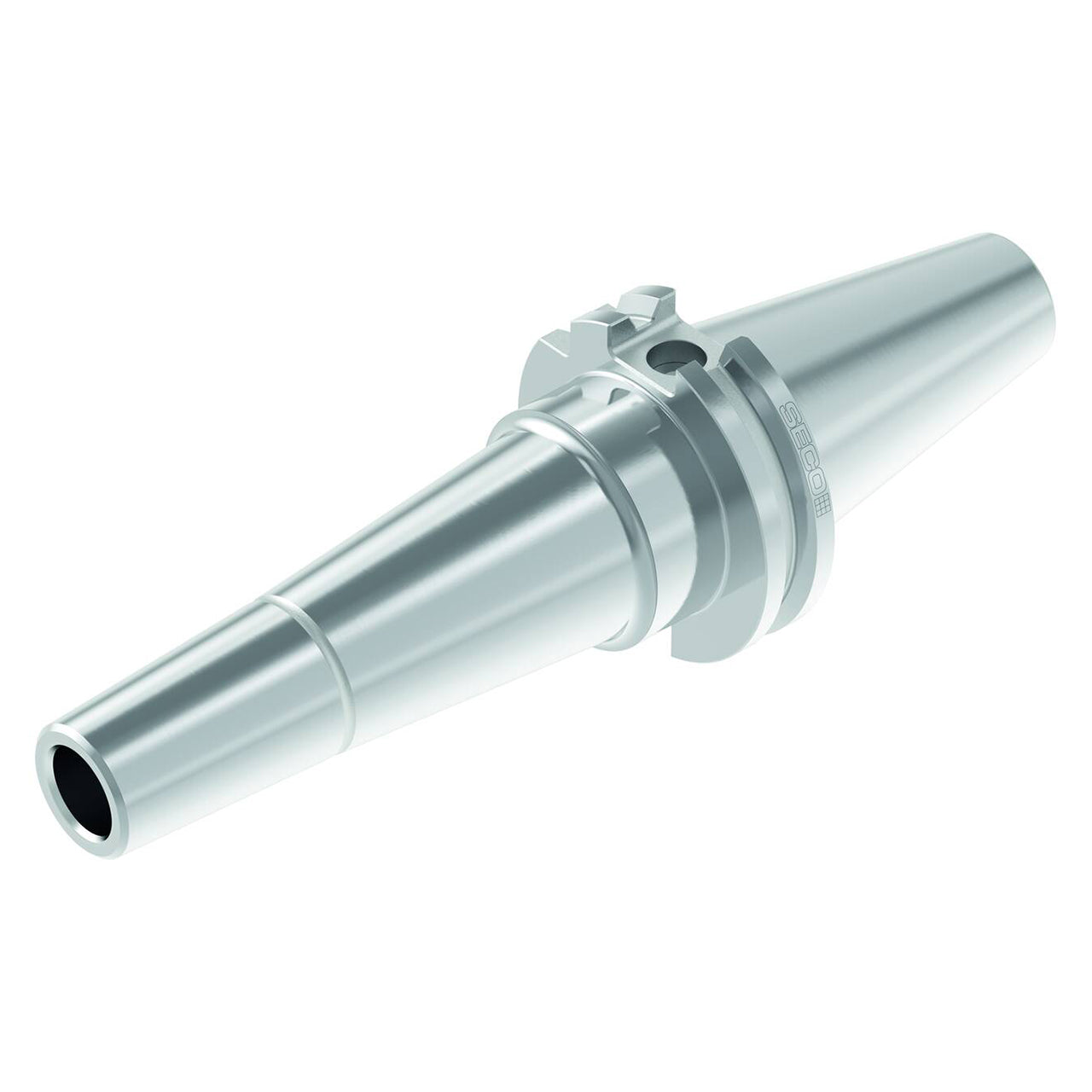

| Product Type | Shrink-Fit Tool Holder |
