Product Specifications
| Manufacturer Part Number | 00047814 |
| Functional Length (Decimal Inch) | 7.000" |
| Functional Length (mm) | 177.80mm |
| Head Length (Decimal Inch) | 2.000" |
| Head Length (mm) | 50.80mm |
| Shank Length (Decimal Inch) | 5.000" |
| Shank Length (mm) | 127.00mm |
| Shank Width (Decimal Inch) | 1.500" |
| Shank Width (mm) | 38.10mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.906" |
| Maximum Radial Cutting Depth (mm) | 23.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.770" |
| Maximum Cutting Depth (mm) | 19.56mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.500" |
| Height of Tool Holder Shank (mm) | 38.10mm |
| Functional Height (Decimal Inch) | 1.500" |
| Functional Height (mm) | 38.10mm |
| Functional Width (Decimal Inch) | 2.000" |
| Functional Width (mm) | 50.80mm |
| Cutting Direction | Right Hand |
| Insert Clamping System | T |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | G |
| Maximum Ramping Angle (Degree) | 45 Degree |
| Insert Shape Code | R |
| Shank Type | Square shank |

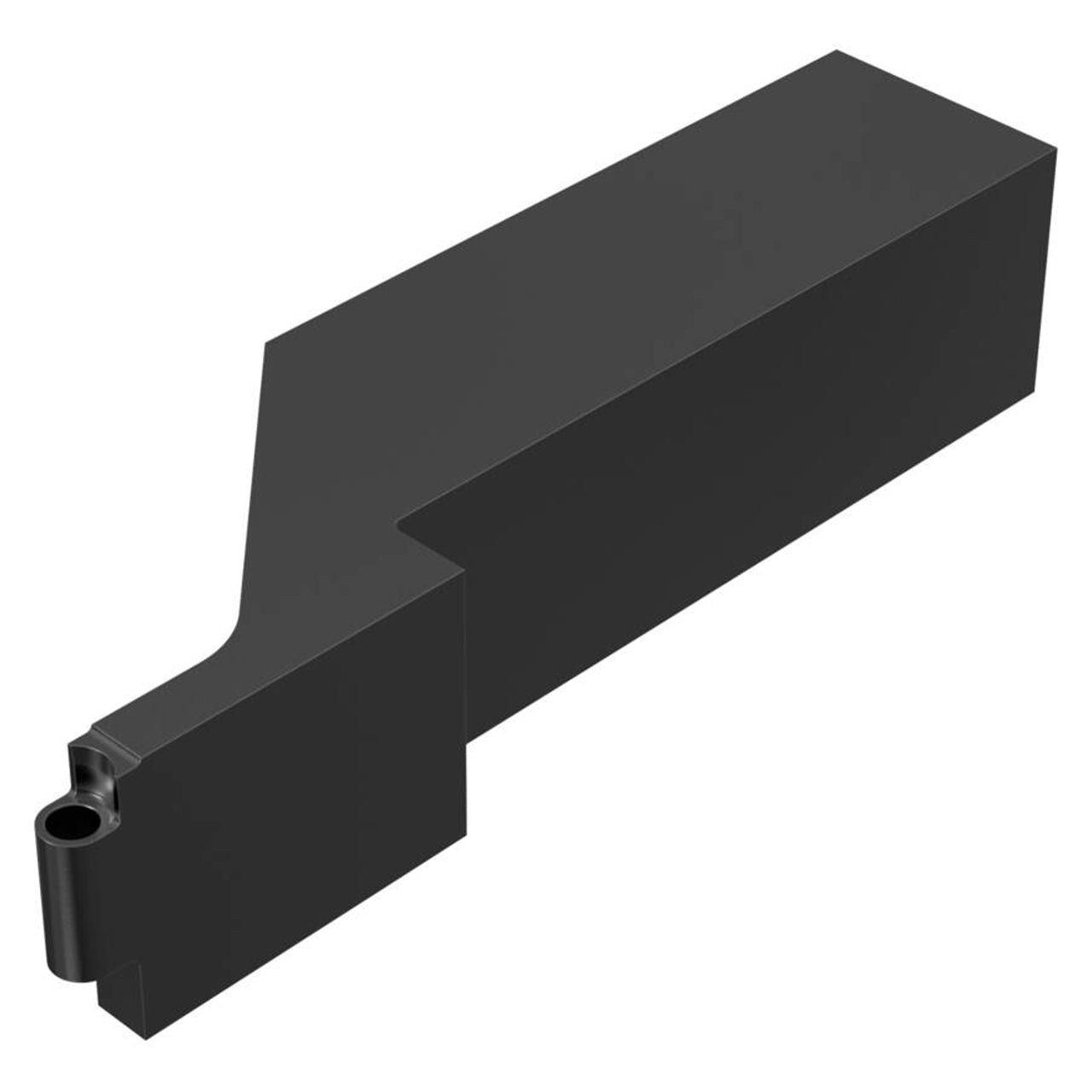

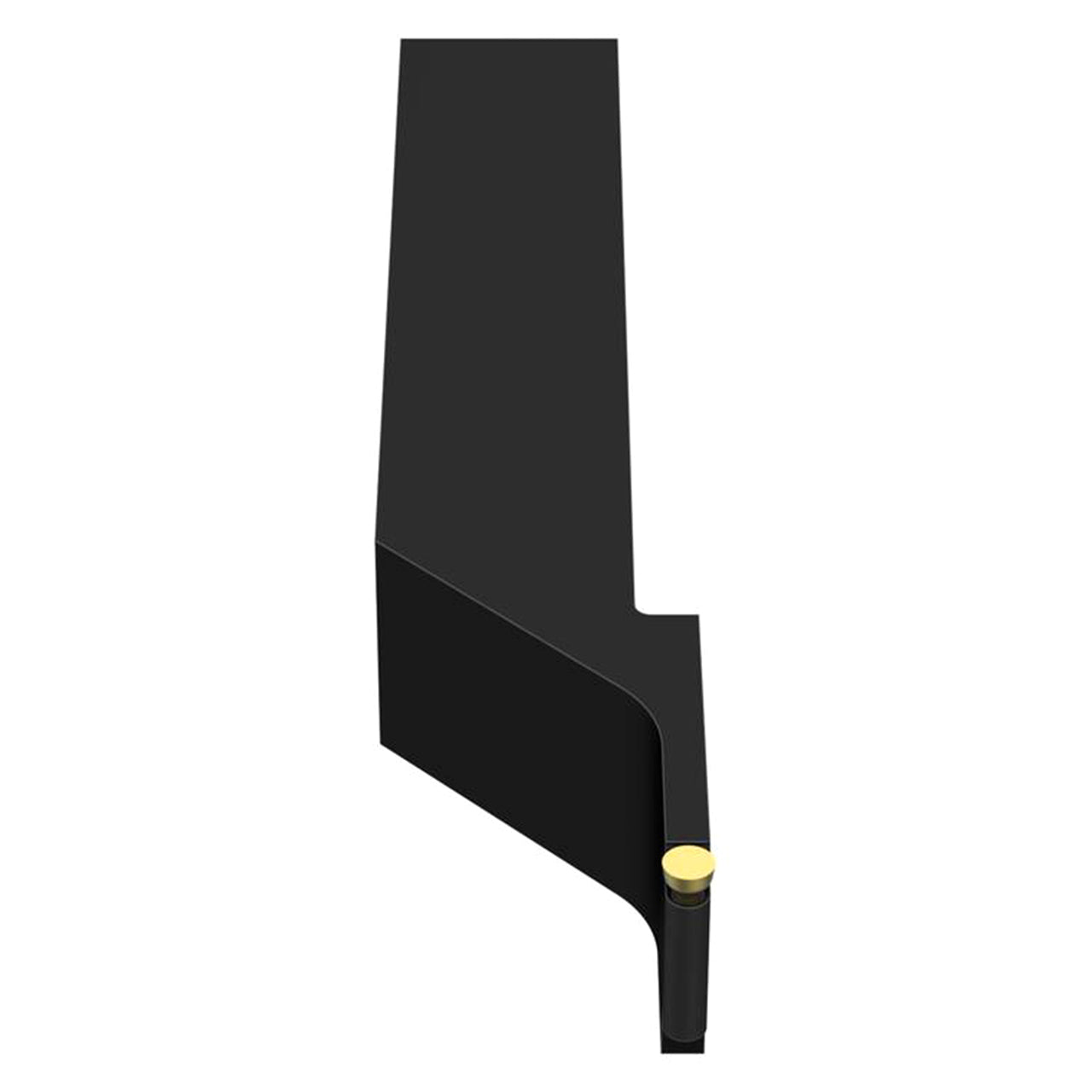

| Product Type | Indexable Turning Toolholder |
