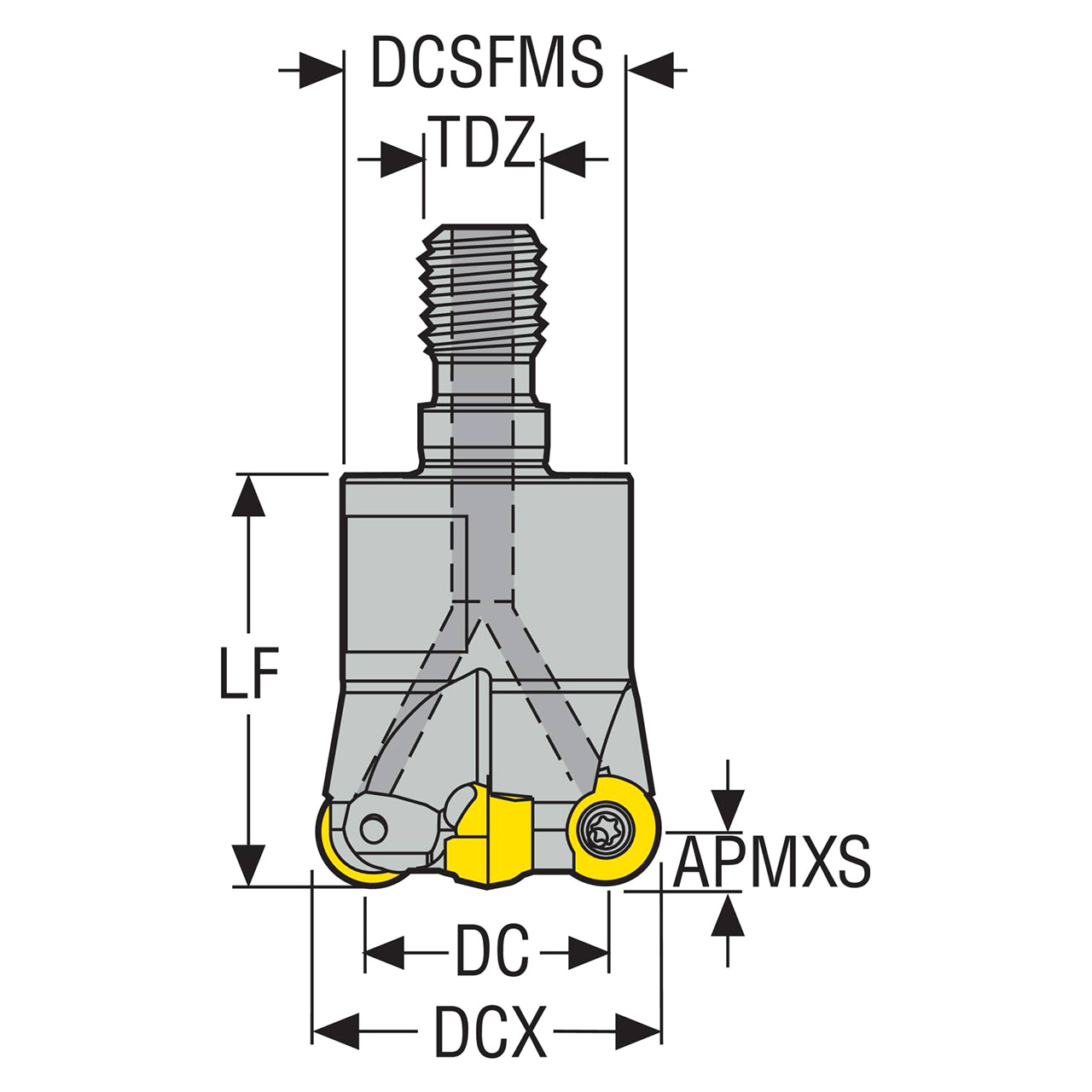

Product Specifications
| Manufacturer Part Number | 00047266 |
| Cutting Diameter (mm) | 8.00mm |
| Contact Surface Diameter Machine Side (mm) | 13.50mm |
| Maximum Cutting Diameter (mm) | 16.00mm |
| Thread Diameter Size | M8 |
| Maximum Helical Interpolation Hole Diameter (mm) | 30.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 24.00mm |
| Functional Length (mm) | 23.00mm |
| Overall Length (mm) | 40.75mm |
| Maximum Depth of Cut (mm) | 4.00mm |
| Connection Mounting Torque (Nm) | 25.0 Nm |
| Cutting Pitch Density | Normal |
| Axial Rake Angle (Degree) | 0.6 Degree |
| Maximum Ramping Angle (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 36200 rpm |
| Insert Shape Code | R |
| Shank Type | Combimaster |
| Product Type | Indexable Copy End Mill |
