Product Specifications
| Manufacturer Part Number | 00043220 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.530" |
| Minimum Cutting Diameter Internal (mm) | 38.86mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Functional Length (Decimal Inch) | 14.016" |
| Functional Length (mm) | 356.00mm |
| Head Length (Decimal Inch) | 2.122" |
| Head Length (mm) | 53.90mm |
| Shank Width (Decimal Inch) | 1.205" |
| Shank Width (mm) | 30.60mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.142" |
| Height of Tool Holder Shank (mm) | 29.00mm |
| Functional Width (Decimal Inch) | 0.765" |
| Functional Width (mm) | 19.43mm |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | -11 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle Code | U |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 93 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 117 Degree |
| Inclination Angle (Degree) | -11 Degree |
| Insert Shape Code | T |
| Shank Type | Cylindrical |

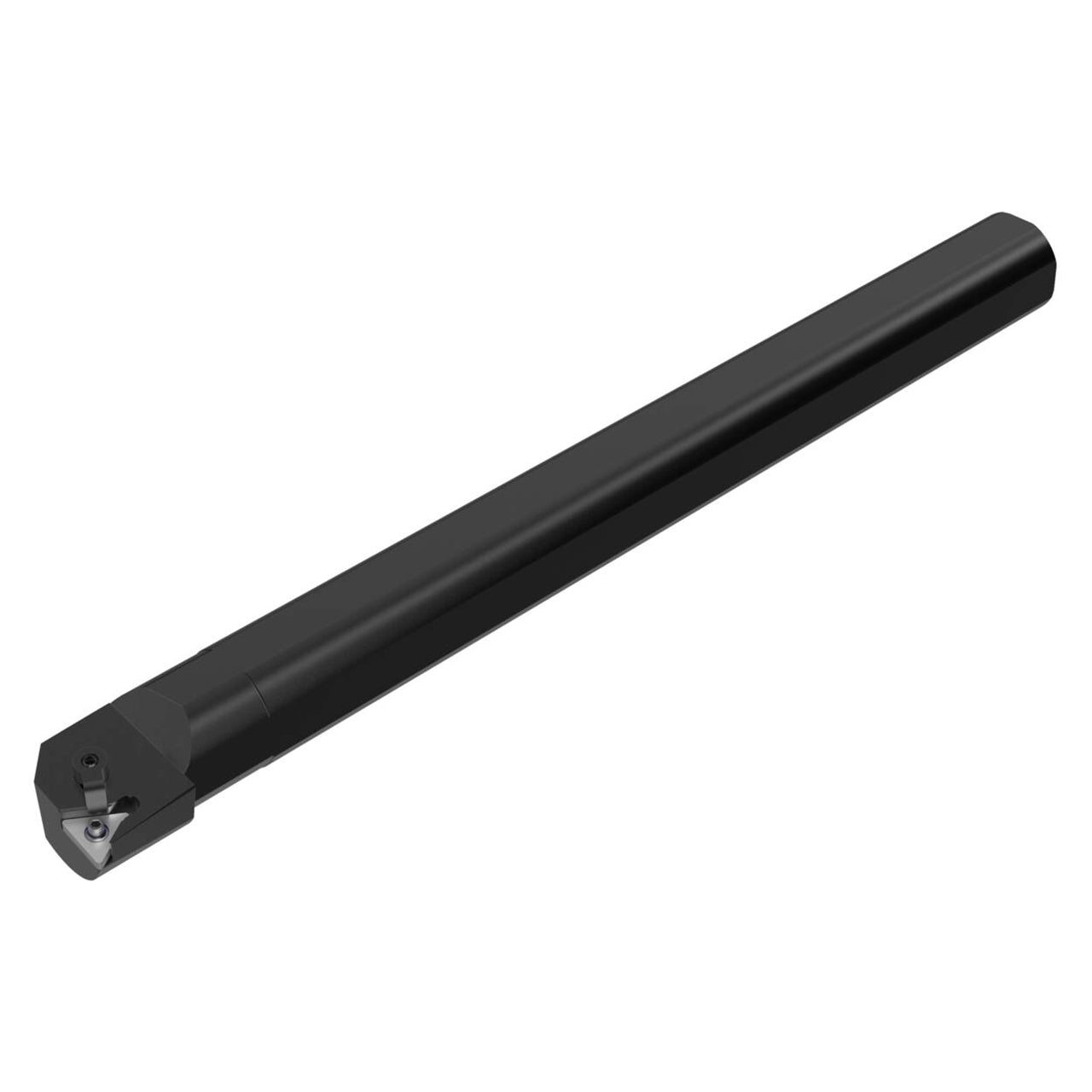

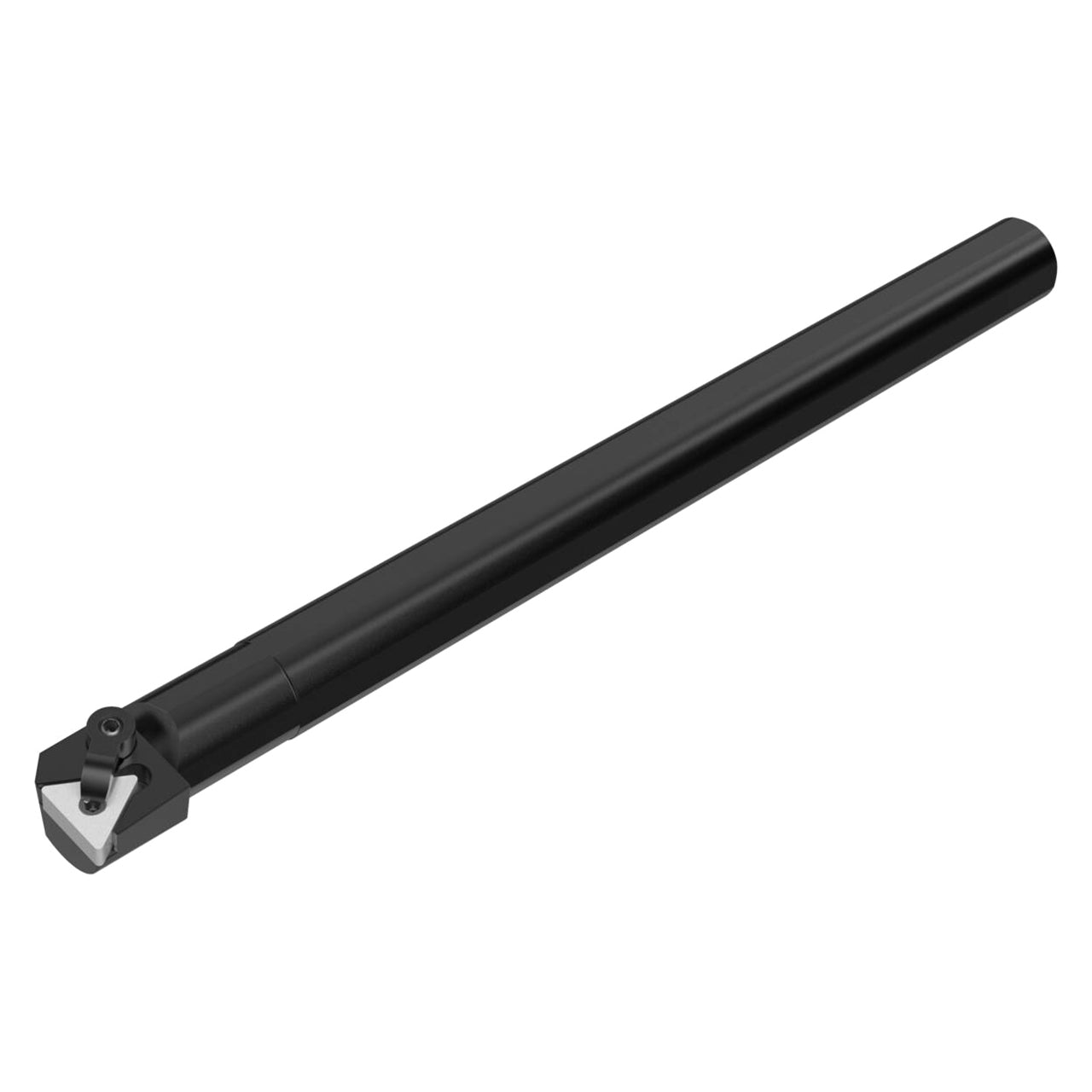

| Product Type | Indexable Boring Bar |
