Product Specifications
| Manufacturer Part Number | 00042538 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 8.268" |
| Minimum Cutting Diameter Internal 3 (mm) | 210.00mm |
| Functional Length (Decimal Inch) | 7.000" |
| Functional Length (mm) | 177.80mm |
| Head Length (Decimal Inch) | 2.223" |
| Head Length (mm) | 56.46mm |
| Shank Width (Decimal Inch) | 1.500" |
| Shank Width (mm) | 38.10mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.689" |
| Maximum Radial Cutting Depth (mm) | 17.50mm |
| Maximum Cutting Depth (Decimal Inch) | 0.677" |
| Maximum Cutting Depth (mm) | 17.20mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.500" |
| Height of Tool Holder Shank (mm) | 38.10mm |
| Functional Height (Decimal Inch) | 1.500" |
| Functional Height (mm) | 38.10mm |
| Functional Width (Decimal Inch) | 0.750" |
| Functional Width (mm) | 19.05mm |
| Cutting Direction | Neutral |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle Code | D |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 135 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Inclination Angle (Degree) | -8 Degree |
| Maximum Ramping Angle (Degree) | 45 Degree |
| Insert Shape Code | S |
| Shank Type | Square shank |

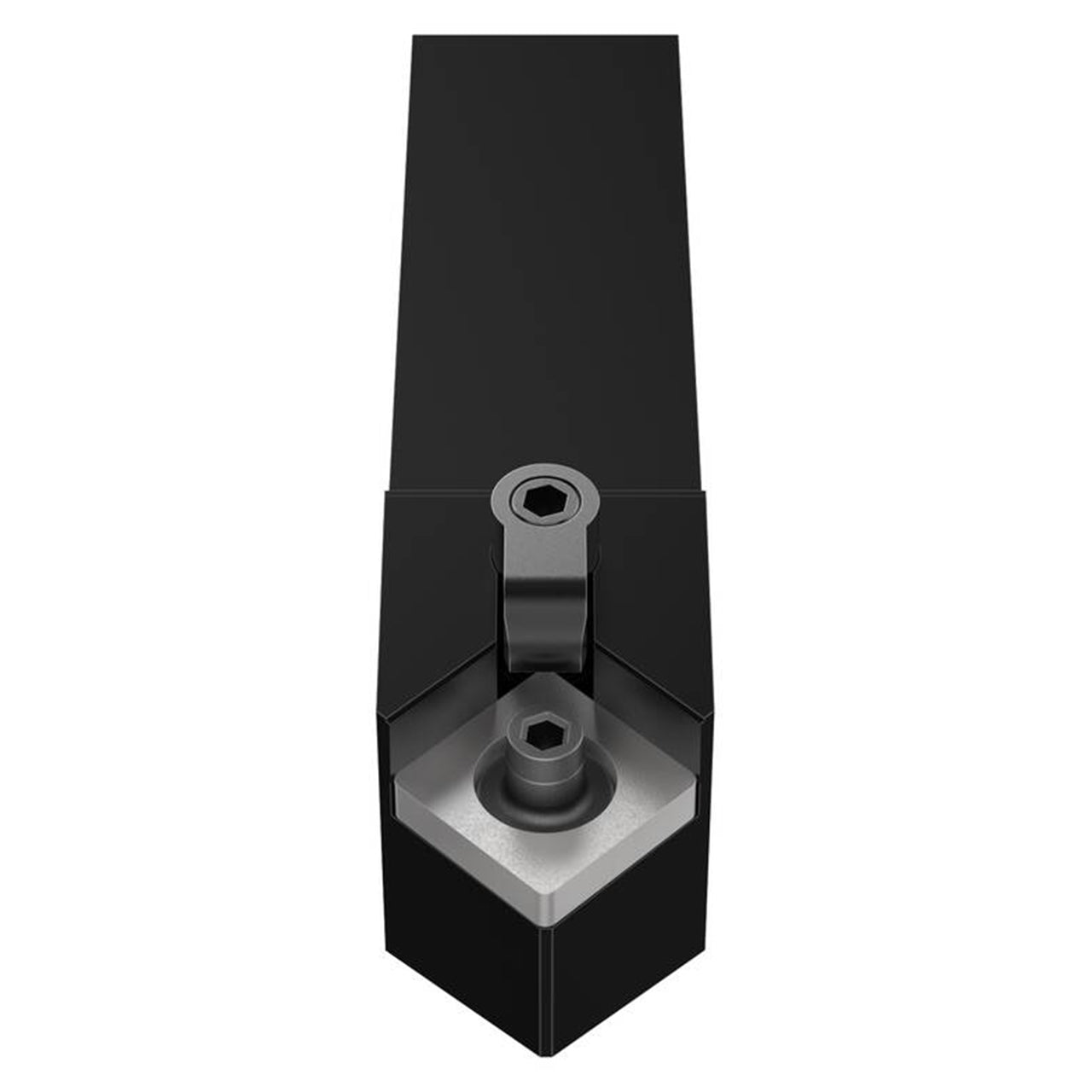

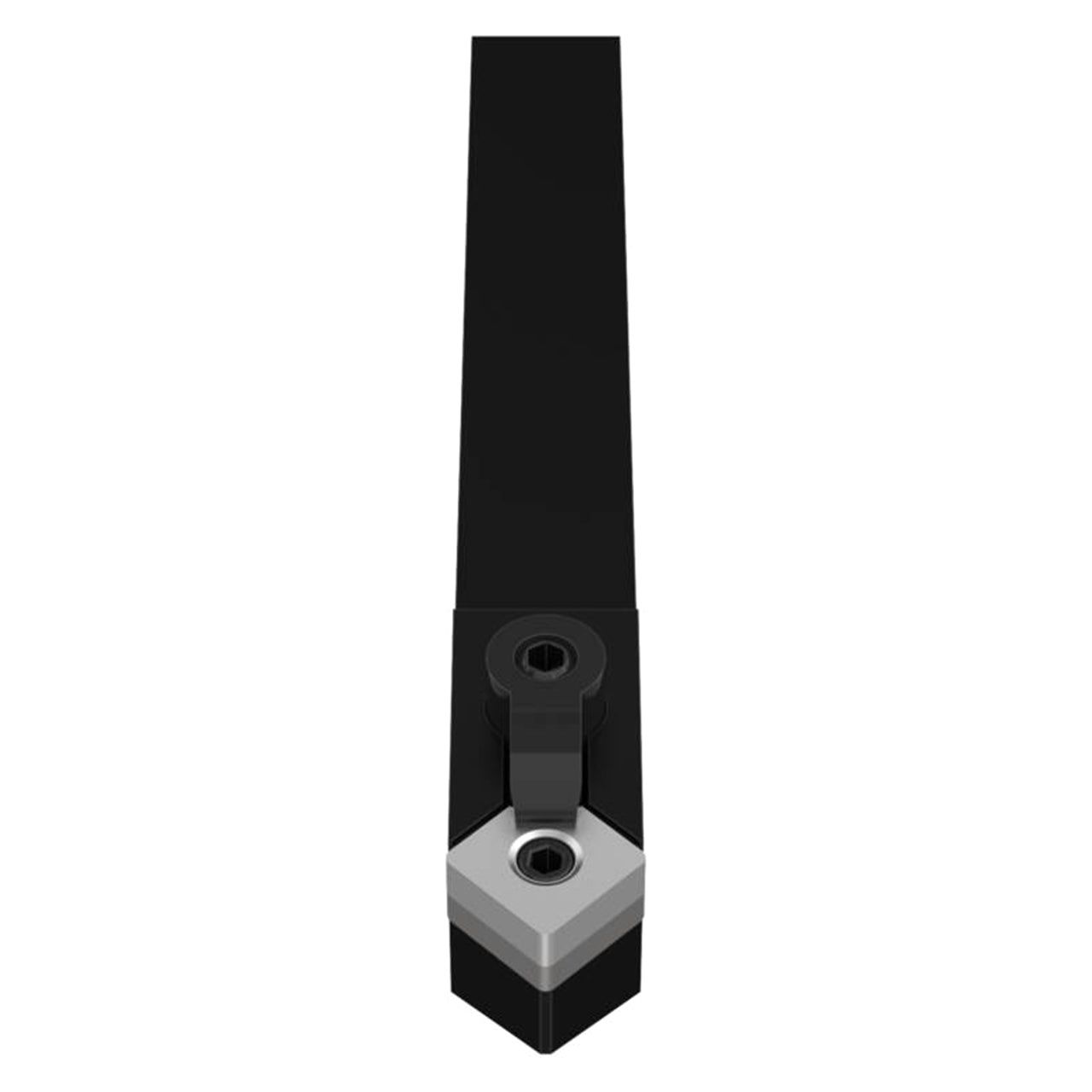

| Product Type | Indexable Turning Toolholder |
