Product Specifications

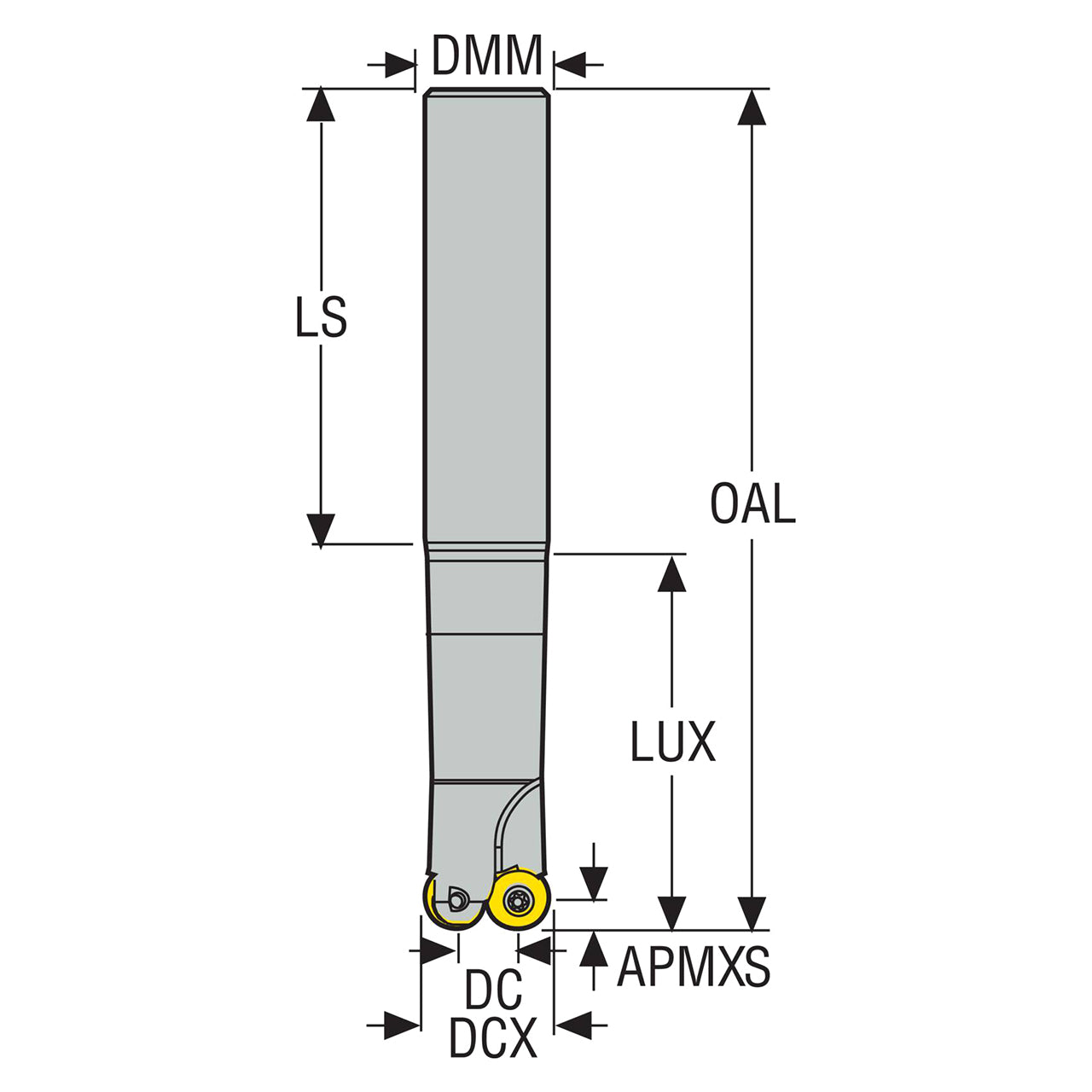

| Manufacturer Part Number | 00040300 |
| Cutting Diameter (mm) | 8.00mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Maximum Cutting Diameter (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 30.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 24.00mm |
| Protruding Length (mm) | 100.00mm |
| Shank Length (mm) | 95.00mm |
| Overall Length (mm) | 160.00mm |
| Maximum Depth of Cut (mm) | 4.00mm |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | 0.6 Degree |
| Rake Radial Angle (Degree) | 0.6 Degree |
| Rake Orthogonal Angle (Degree) | 0.6 Degree |
| Maximum Ramping Angle (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 36200 rpm |
| Insert Shape Code | R |
| Shank Type | Cylindrical |
| Product Type | Copy Mill Round Insert |
