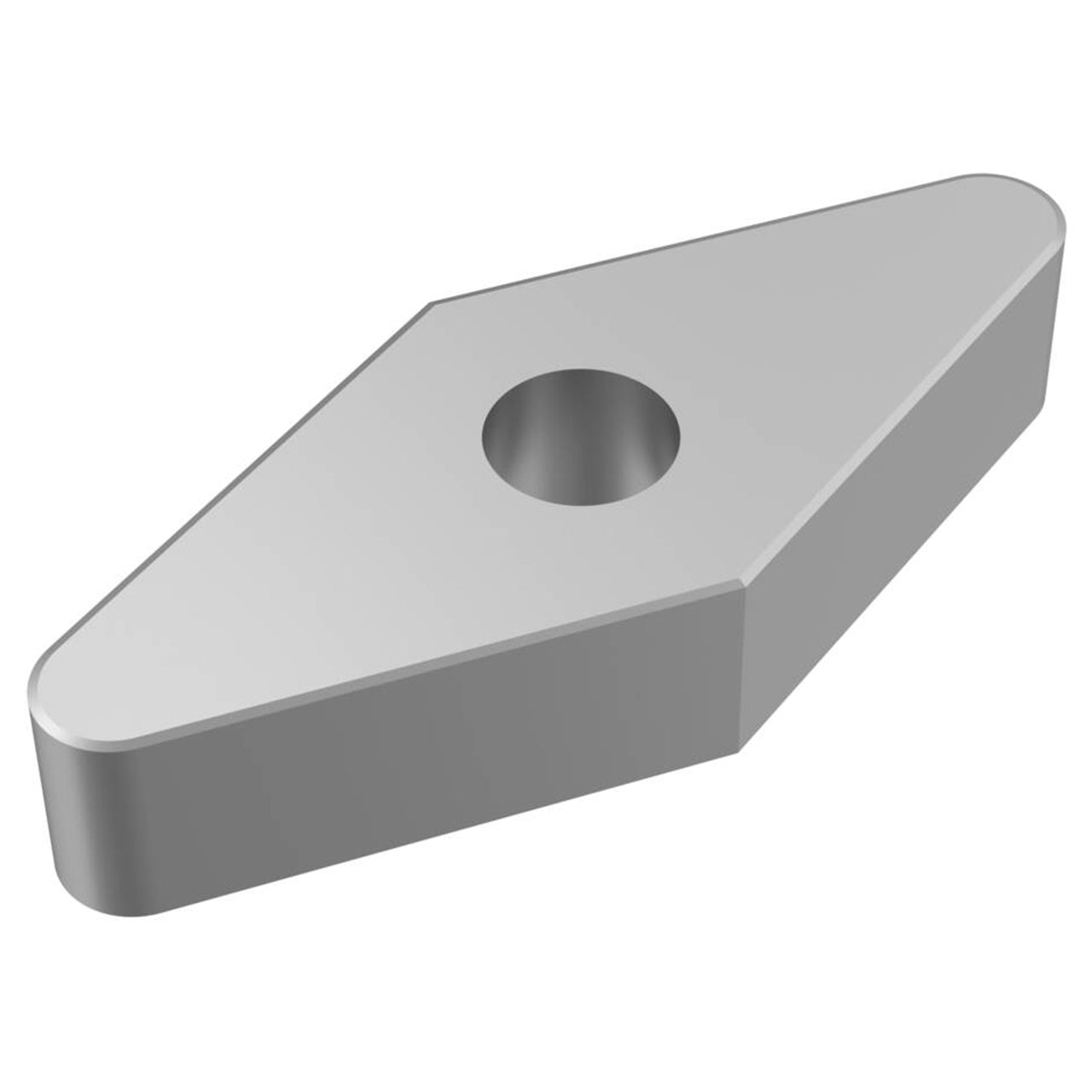

Product Specifications
| Manufacturer Part Number | 00040267 |
| Fixing Hole Diameter (Decimal Inch) | 0.150" |
| Fixing Hole Diameter (mm) | 3.81mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.189" |
| Cutting Edge Effective Length (mm) | 4.80mm |
| Corner Radius (Decimal Inch) | 0.063" |
| Corner Radius (mm) | 1.60mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Cutting Edge Condition Code | S |
| Cutting Edge Count | 4 |
| Insert Size And Shape | VN1604 |
| Insert Included Angle (Degree) | 35 Degree |
| Material | PCBN |
| Product Type | Turning Insert |
