Product Specifications
| Manufacturer Part Number | 00040008 |
| Minimum Cutting Diameter (Decimal Inch) | 0.630" |
| Minimum Cutting Diameter (mm) | 16.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.669" |
| Maximum Cutting Diameter (mm) | 16.99mm |
| Flange Diameter (Decimal Inch) | 0.787" |
| Flange Diameter (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Body Diameter (Decimal Inch) | 0.610" |
| Body Diameter (mm) | 15.50mm |
| Shank Length (Decimal Inch) | 1.890" |
| Shank Length (mm) | 48.00mm |
| Usable Length (Decimal Inch) | 4.331" |
| Usable Length (mm) | 110.00mm |
| Overall Length (Decimal Inch) | 7.461" |
| Overall Length (mm) | 189.50mm |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |

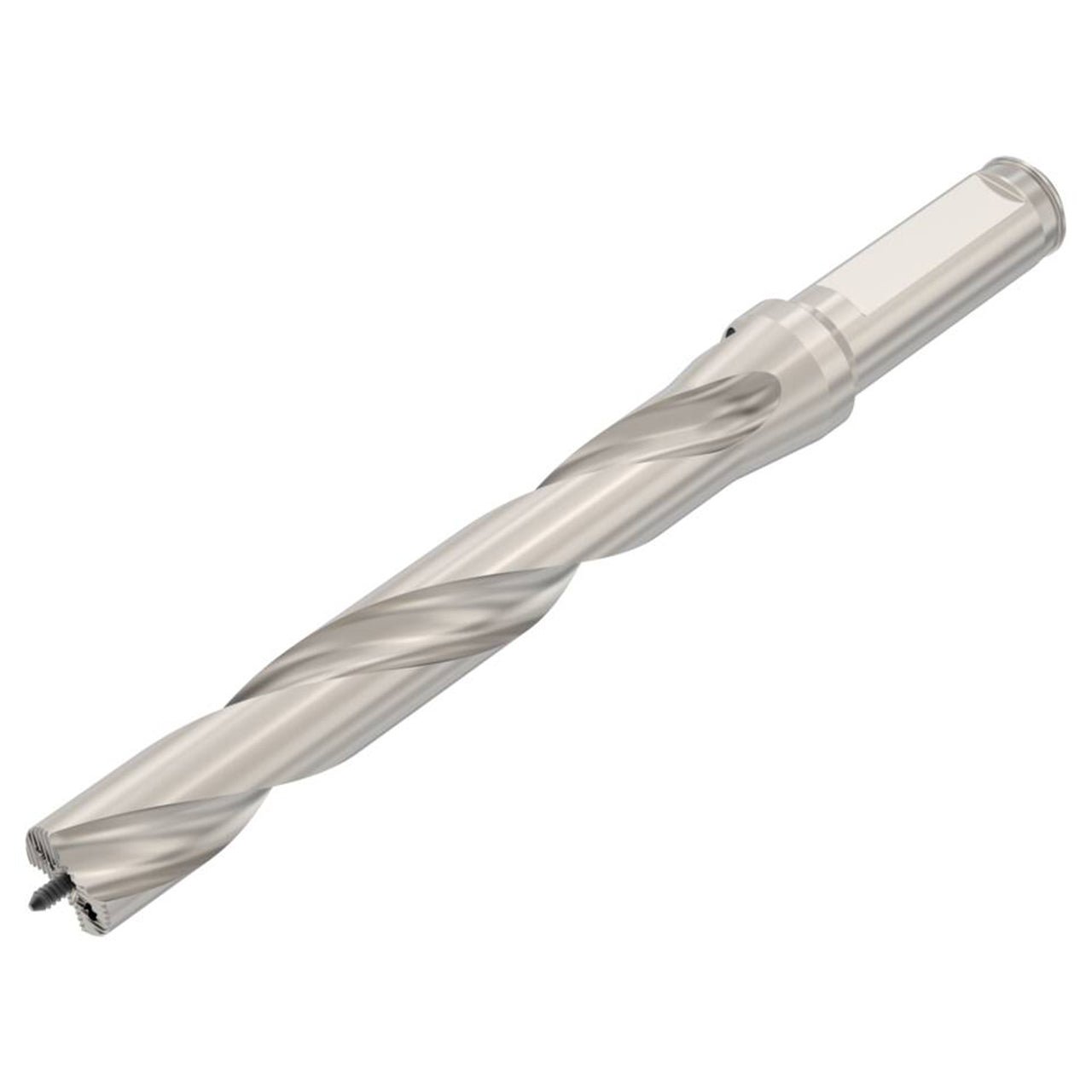

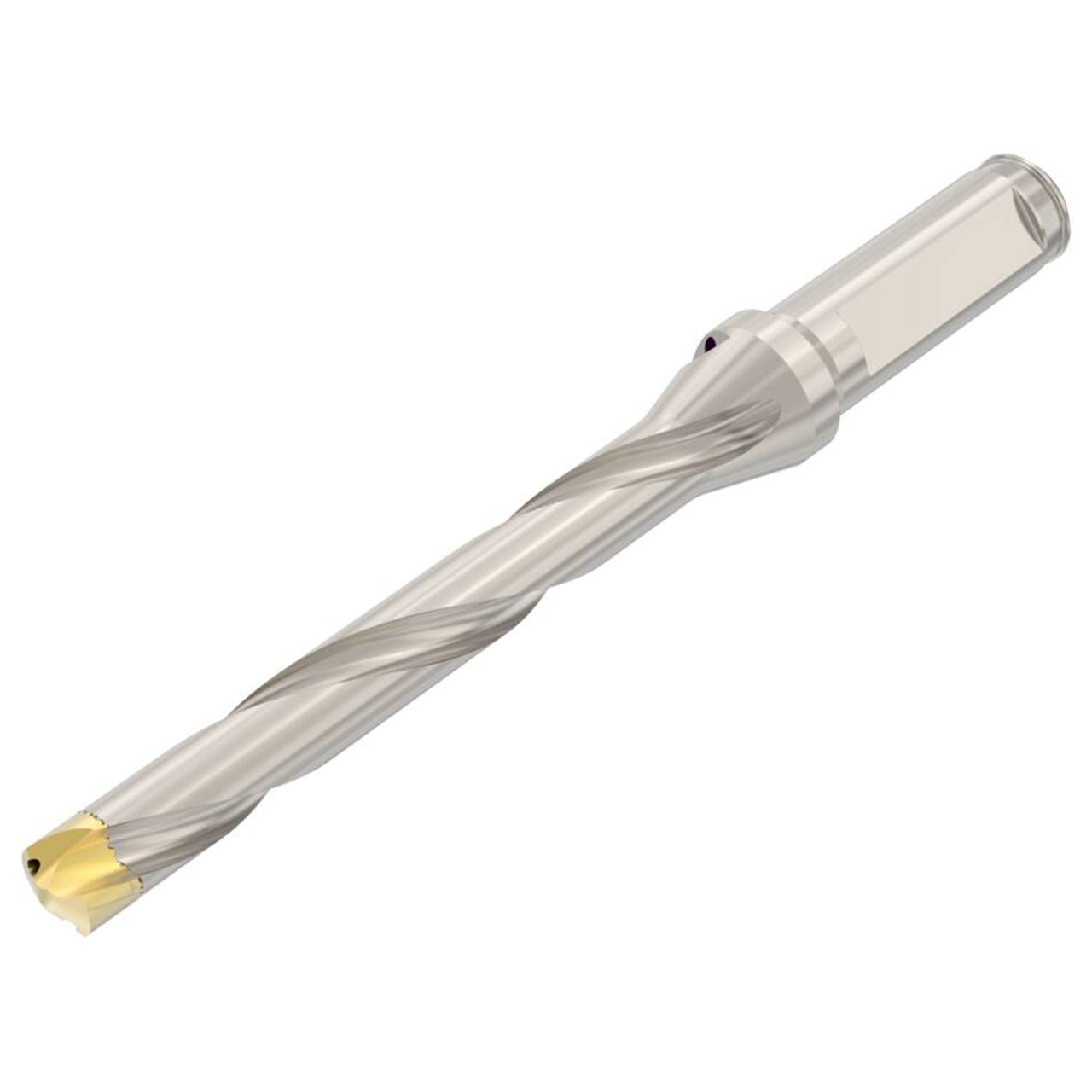

| Product Type | Replaceable-Tip Drill |
