Product Specifications
| Manufacturer Part Number | 00040003 |
| Minimum Cutting Diameter (Decimal Inch) | 0.472" |
| Minimum Cutting Diameter (mm) | 12.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.492" |
| Maximum Cutting Diameter (mm) | 12.49mm |
| Flange Diameter (Decimal Inch) | 0.787" |
| Flange Diameter (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Body Diameter (Decimal Inch) | 0.453" |
| Body Diameter (mm) | 11.50mm |
| Shank Length (Decimal Inch) | 1.890" |
| Shank Length (mm) | 48.00mm |
| Usable Length (Decimal Inch) | 3.543" |
| Usable Length (mm) | 90.00mm |
| Overall Length (Decimal Inch) | 6.555" |
| Overall Length (mm) | 166.50mm |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |

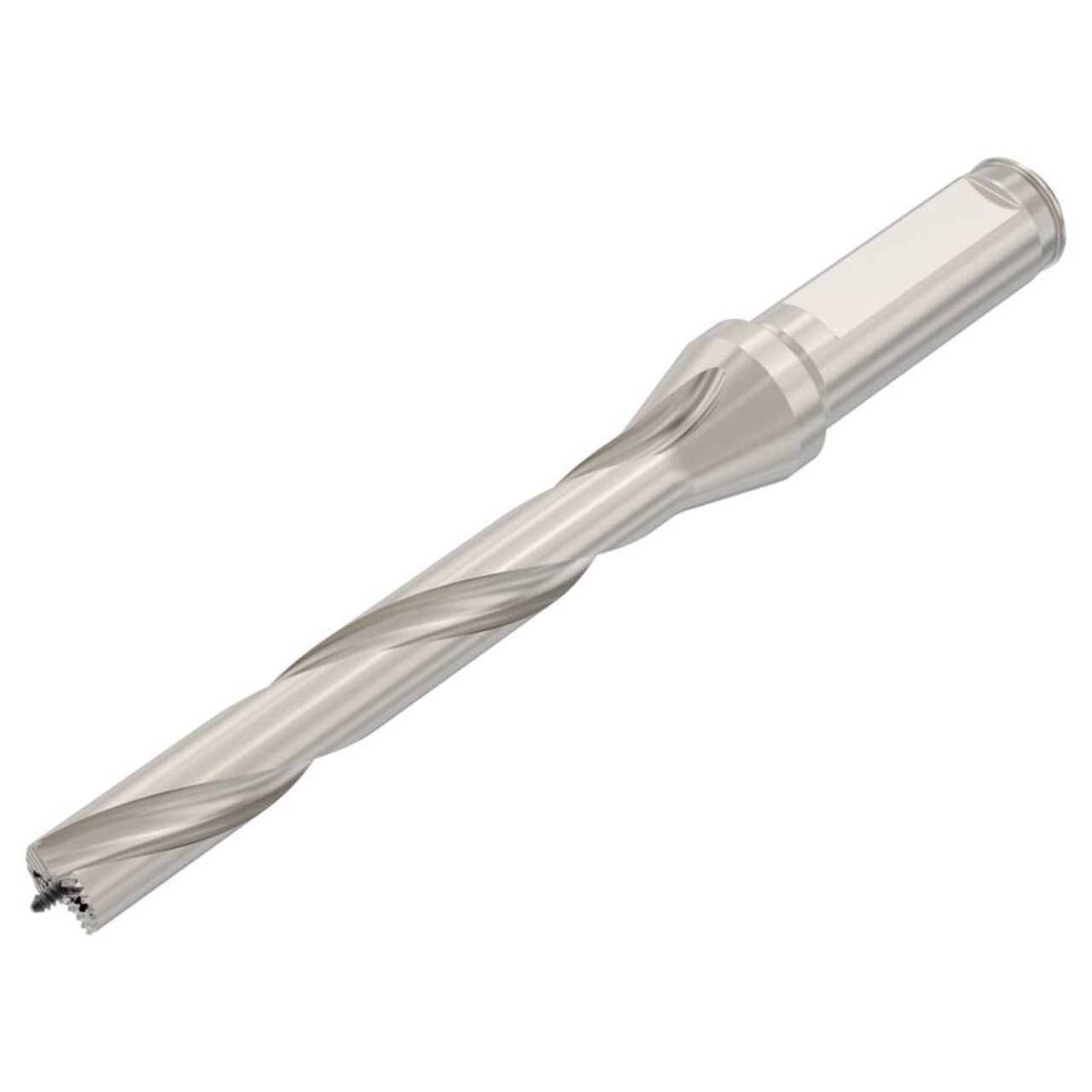

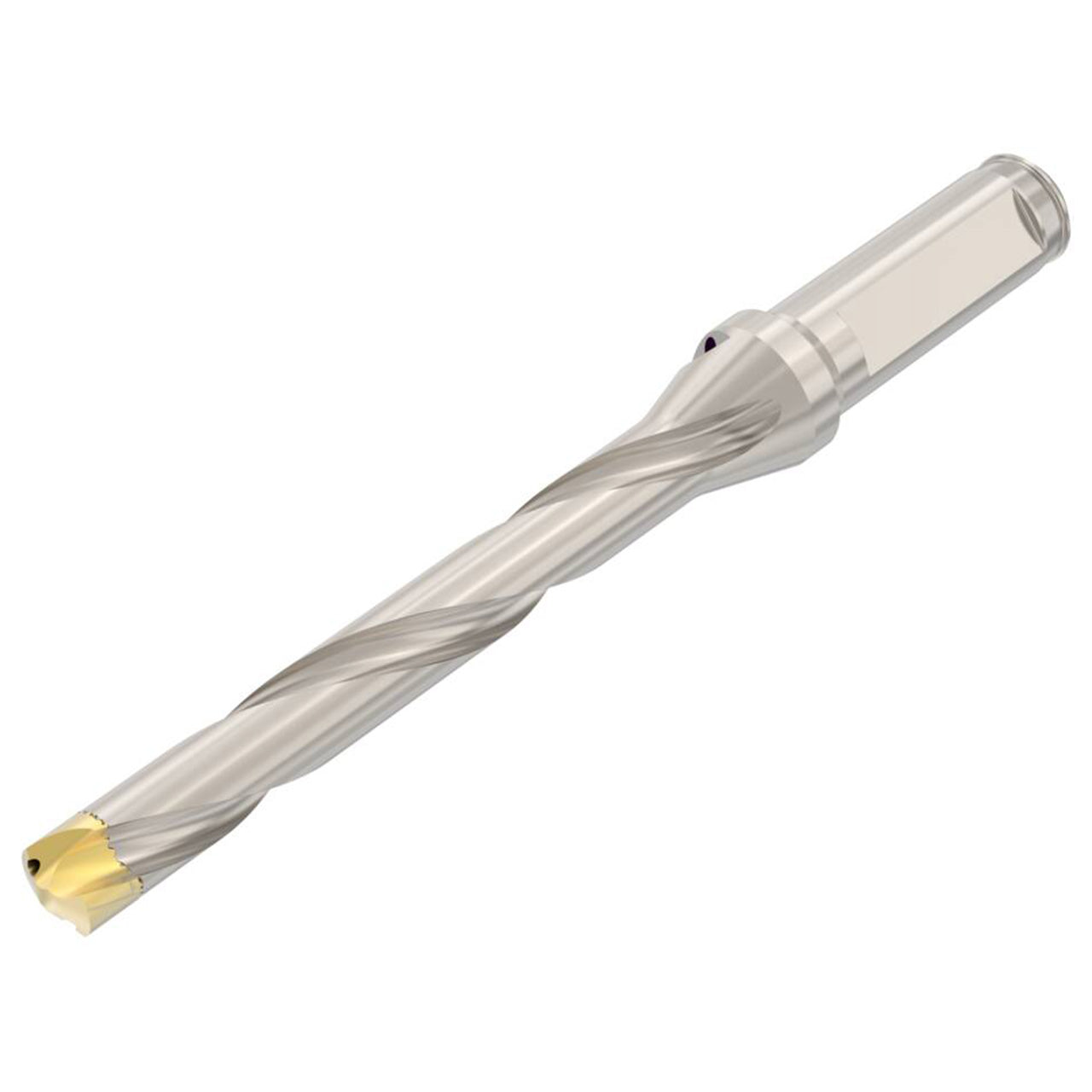

| Product Type | Replaceable-Tip Drill |
