Product Specifications
| Manufacturer Part Number | 00034446 |
| Body Diameter 1 (Decimal Inch) | 0.394" |
| Body Diameter 1 (mm) | 10.00mm |
| Body Diameter 2 (Decimal Inch) | 0.635" |
| Body Diameter 2 (mm) | 16.12mm |
| Connection Bore Diameter (Decimal Inch) | 0.158" |
| Connection Bore Diameter (mm) | 4.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.158" |
| Minimum Connection Bore Diameter (mm) | 4.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.158" |
| Maximum Connection Bore Diameter (mm) | 4.00mm |
| Body Length (Decimal Inch) | 2.398" |
| Body Length (mm) | 60.90mm |
| Body Length 1 (Decimal Inch) | 0.984" |
| Body Length 1 (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 2.559" |
| Functional Length (mm) | 65.00mm |
| Minimum Functional Length (Decimal Inch) | 2.500 |
| Protruding Length (Decimal Inch) | 3.150" |
| Protruding Length (mm) | 80.00mm |
| Clamping Length (Decimal Inch) | 0.591" |
| Clamping Length (mm) | 15.00mm |
| Overall Length (Decimal Inch) | 5.843" |
| Overall Length (mm) | 148.40mm |
| Body Half Taper Angle 1 (Degree) | 5 Degree |
| Body Half Taper Angle Degree) | 3 Degree |
| Data Chip Provision | 1 |

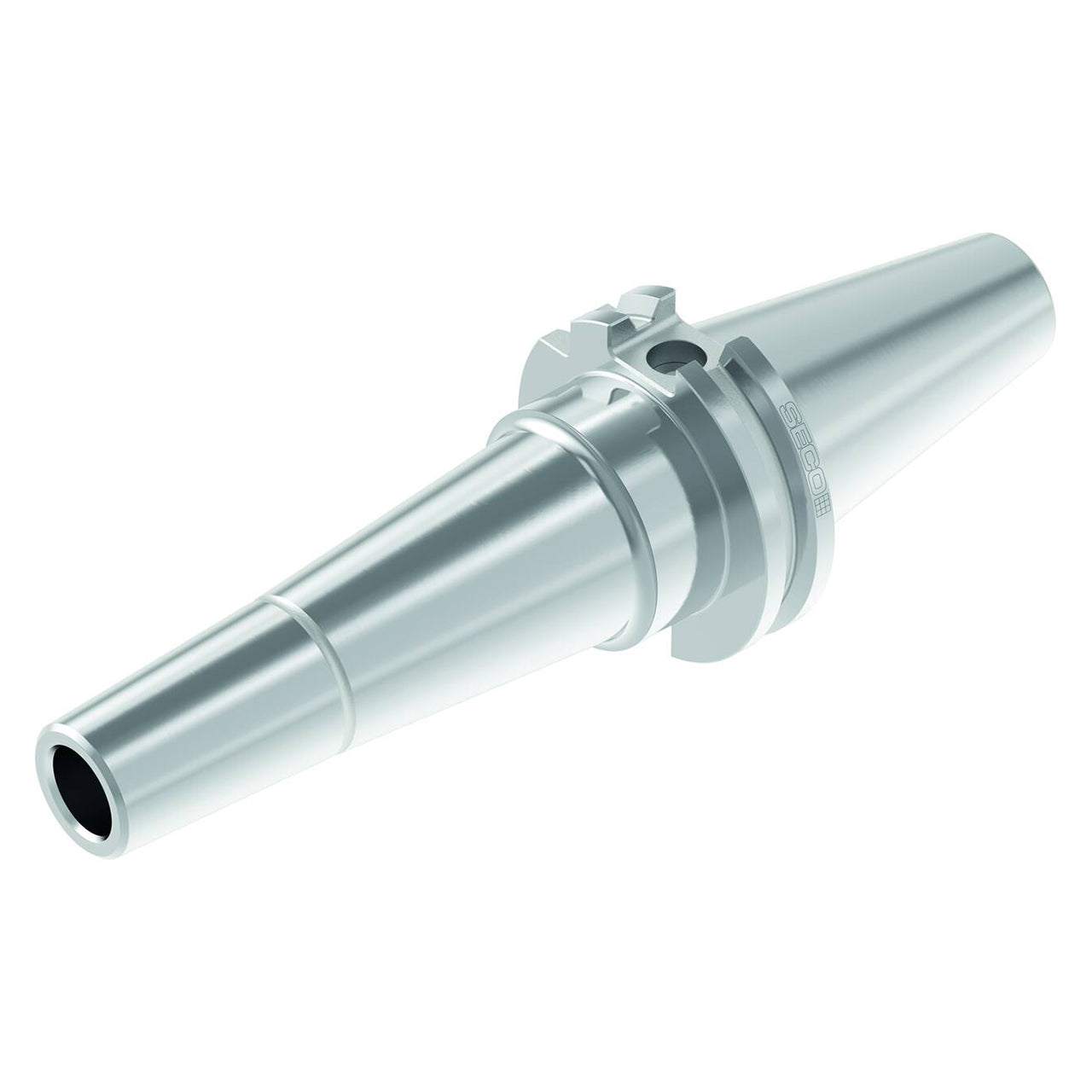

| Product Type | Shrink-Fit Tool Holder |
