Product Specifications
| Manufacturer Part Number | 00034391 |
| Body Diameter 1 (Decimal Inch) | 0.787" |
| Body Diameter 1 (mm) | 20.00mm |
| Body Diameter 2 (Decimal Inch) | 1.111" |
| Body Diameter 2 (mm) | 28.22mm |
| Connection Bore Diameter (Decimal Inch) | 0.472" |
| Connection Bore Diameter (mm) | 12.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.472" |
| Minimum Connection Bore Diameter (mm) | 12.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.472" |
| Maximum Connection Bore Diameter (mm) | 12.00mm |
| Body Length (Decimal Inch) | 2.480" |
| Body Length (mm) | 63.00mm |
| Body Length 1 (Decimal Inch) | 1.575" |
| Body Length 1 (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 2.205" |
| Functional Length (mm) | 56.00mm |
| Minimum Functional Length (Decimal Inch) | 1.791" |
| Protruding Length (Decimal Inch) | 3.543" |
| Protruding Length (mm) | 90.00mm |
| Clamping Length (Decimal Inch) | 1.339" |
| Clamping Length (mm) | 34.00mm |
| Overall Length (Decimal Inch) | 6.118" |
| Overall Length (mm) | 155.40mm |
| Connection Bore Depth (mm) | 46.00mm |
| Body Half Taper Angle 1 (Degree) | 5 Degree |
| Body Half Taper Angle Degree) | 3 Degree |
| Data Chip Provision | 1 |

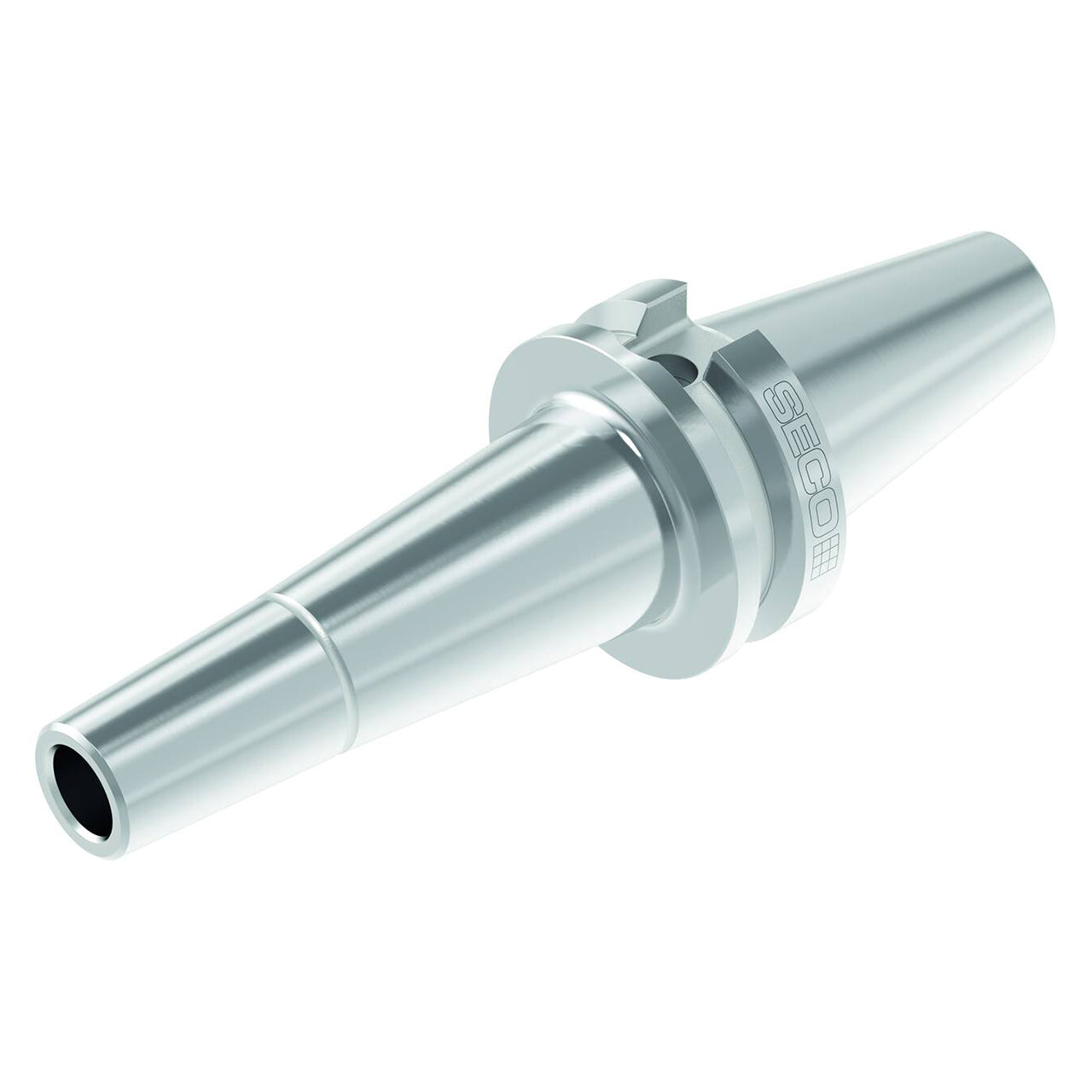

| Product Type | Shrink-Fit Tool Holder |
