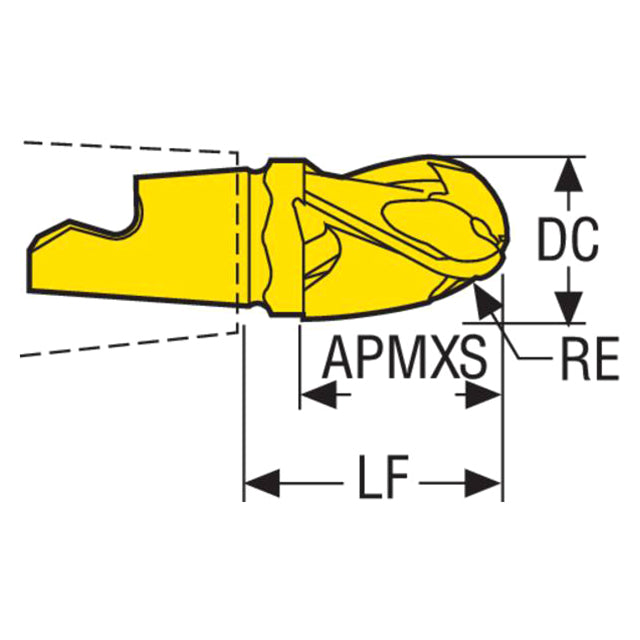

Product Specifications
| Manufacturer Part Number | 00030826 |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Cutting Diameter (mm) | 12.70mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.539" |
| Minimum Helical Interpolation Hole Diameter (mm) | 13.70mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.941" |
| Maximum Helical Interpolation Hole Diameter (mm) | 23.90mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.604" |
| Cutting Edge Effective Length (mm) | 15.35mm |
| Functional Length (Decimal Inch) | 0.778" |
| Functional Length (mm) | 19.75mm |
| Maximum Depth of Cut (Decimal Inch) | 0.602" |
| Maximum Depth of Cut (mm) | 15.30mm |
| Corner Radius (Decimal Inch) | 0.250" |
| Corner Radius (mm) | 6.35mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Maximum Ramping Angle (Degree) | 15 Degree |
| Sphere Angle (Degree) | 180 Degree |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Material | Carbide |
| Product Type | Profile Milling Tip Insert |
