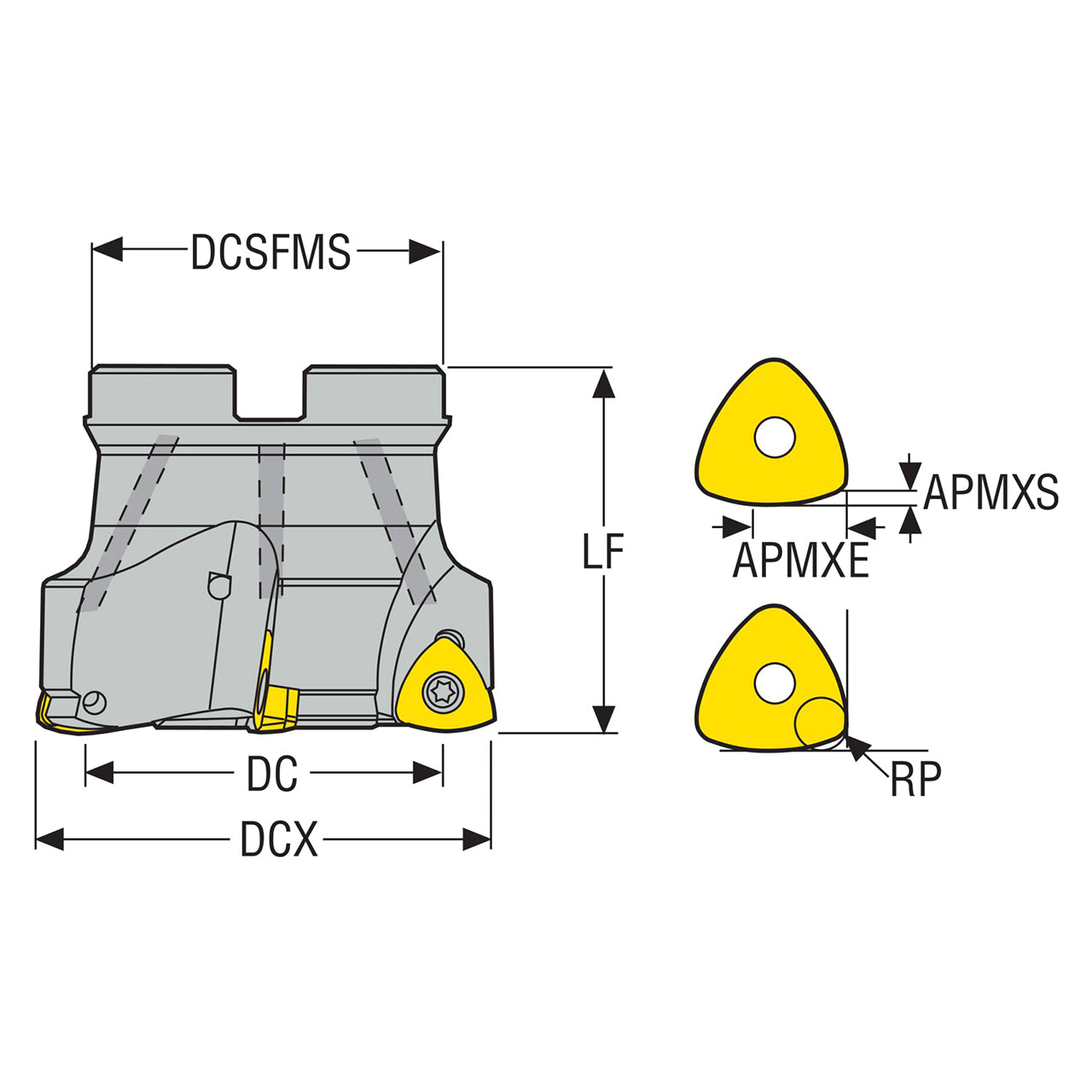

Product Specifications
| Manufacturer Part Number | 00030720 |
| Cutting Diameter (mm) | 31.20mm |
| Contact Surface Diameter Machine Side (mm) | 35.00mm |
| Maximum Cutting Diameter (mm) | 42.00mm |
| Functional Length (mm) | 40.00mm |
| Cutting Item Material Type | Steel |
| Maximum Ramping Angle (Degree) | 2.28 Degree |
| Programming Radius (mm) | 1.75mm |
| Maximum Rotational Speed (rpm) | 17200 rpm |
| Shank Type | Arbor |
| Insert Seat Size Code | 125 |
| Product Type | High Feed Trigon Shape Insert |
