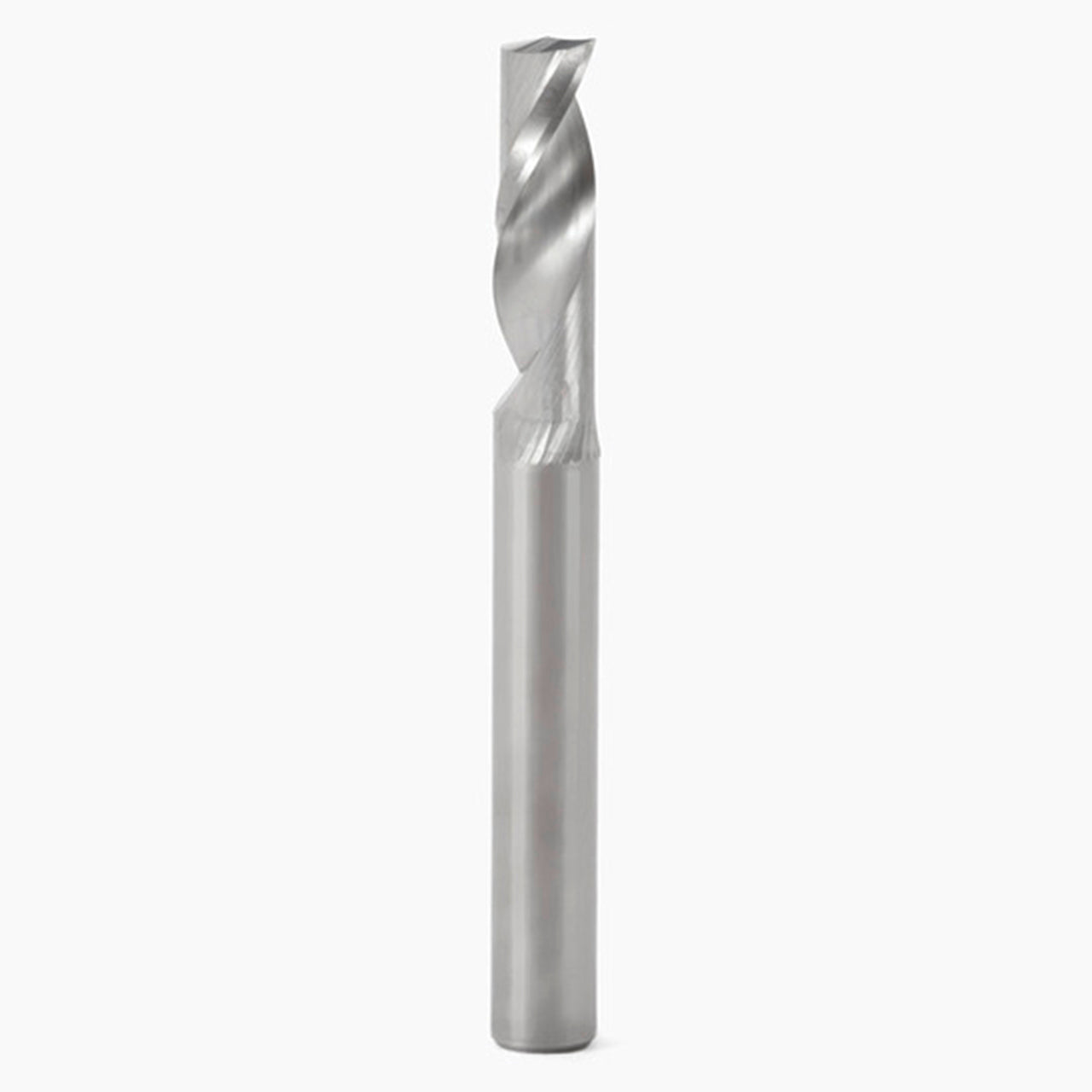

Product Specifications
| Manufacturer Part Number | 00029353 |
| Cutting Diameter (mm) | 3.00mm |
| Cutting Diameter 1 (mm) | 3.00mm |
| Connection Diameter Machine Side (mm) | 3.00mm |
| Lower Cutting Diameter Tolerance (mm) | -0.034 |
| Shank Diameter (mm) | 3.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 5.85mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 3.90mm |
| Cutting Edge Effective Length (mm) | 10.00mm |
| Minimum Clamping Length (mm) | 28.00mm |
| Overall Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 10.00mm |
| Theoretical Cutting Edge Length (mm) | 10.00mm |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 1 |
| Cutting Geometry Type | J28 |
| Cutting Geometry Type Technical | J28 |
| Face Cutting Edge Count | 1 |
| Flute Helix Angle (Degree) | 38 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 18 Degree |
| Rake Radial Angle (Degree) | 18 Degree |
| Axial Rake Angle (Degree) | 38 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 92.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 2 |
| Number of Flute | 1 |
| Pheripheral Cutting Edge Count | 1 |
| Maximum Ramping Angle (Degree) | 45 Degree |
| Shank Type | Cylindrical |
| Coating | Uncoated |
| Product Type | Square End Mill |
