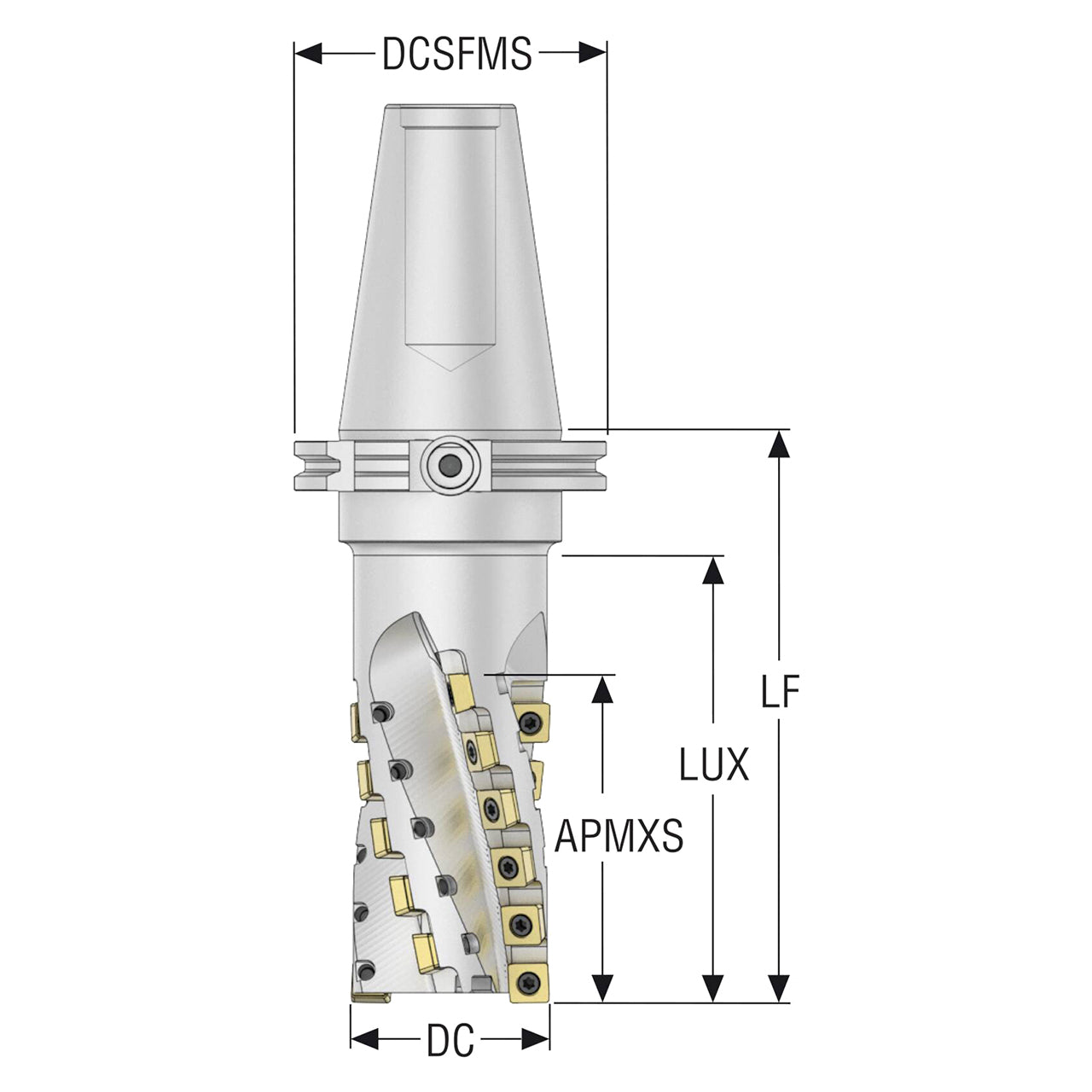

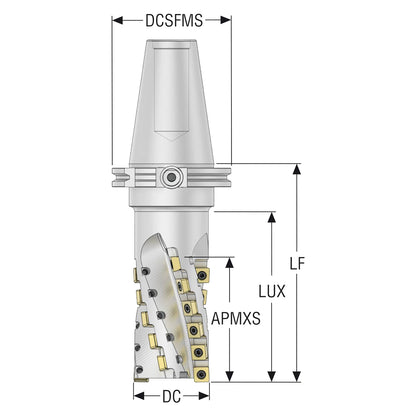

Product Specifications
| Manufacturer Part Number | 00026980 |
| Cutting Diameter (mm) | 63.00mm |
| Contact Surface Diameter Machine Side (mm) | 97.45mm |
| Functional Length (mm) | 200.00mm |
| Overall Length (mm) | 302.00mm |
| Number of Flute | 4 |
| Maximum Depth of Cut (mm) | 122.80mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Flute Helix Hand | Left Hand |
| Maximum Rotational Speed (rpm) | 7400 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | AC.T1506 / SC.T1206 |
| Cutting Item Material Type | 819B (35NCD16) 41HRc + Nitruding |
| Shank Type | CAT and CAT Taper-face |
| Insert Shape Code | A / S |
| Product Type | Indexable Square-Shoulder End Mill |
