Product Specifications
| Manufacturer Part Number | 00026803 |
| Insert Diameter (Decimal Inch) | 0.394" |
| Insert Diameter (mm) | 10.00mm |
| Insert Gauge Length (Decimal Inch) | 1.024" |
| Insert Gauge Length (mm) | 26.00mm |
| Cutting Width (Decimal Inch) | 0.394" |
| Cutting Width (mm) | 10.00mm |
| Maximum Cutting Depth Insert (Decimal Inch) | 0.386" |
| Maximum Cutting Depth Insert (mm) | 9.80mm |
| Corner Radius (Decimal Inch) | 0.197" |
| Corner Radius (mm) | 5.00mm |
| Cutting Edge Count | 2 |
| Insert Hand | Neutral |
| Insert Size And Shape | 26ER |
| Material | Carbide |

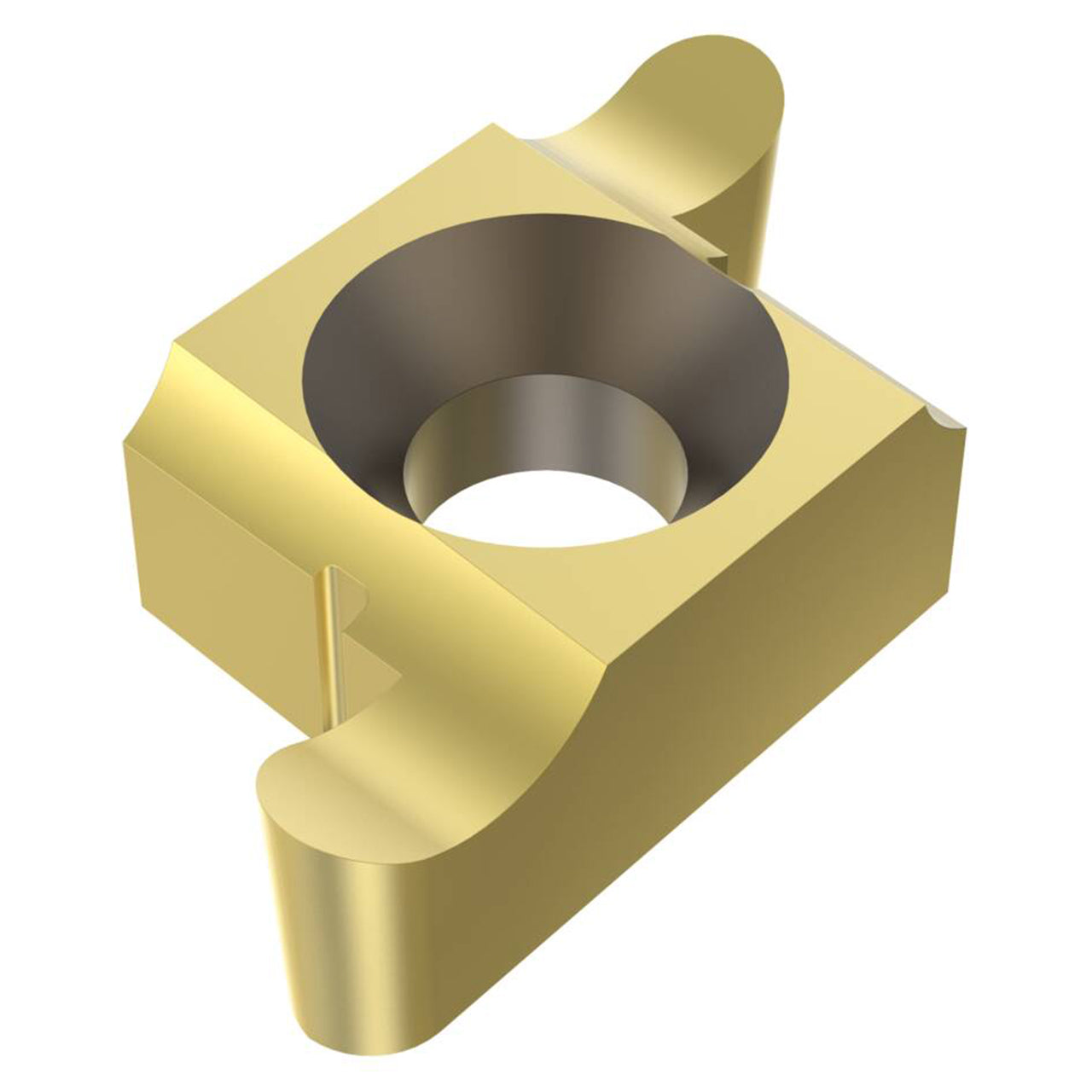

| Product Type | Grooving Insert |
