Product Specifications

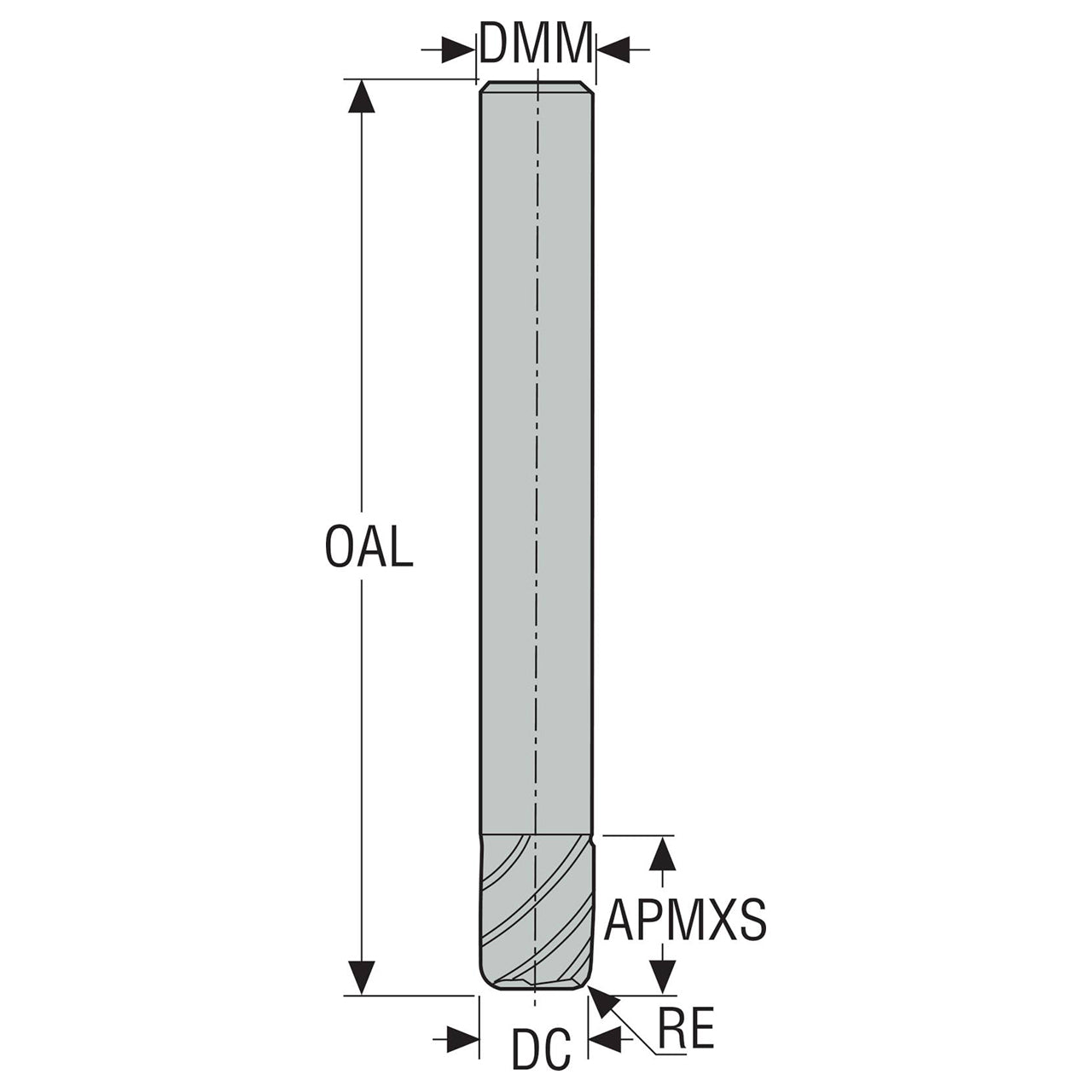

| Manufacturer Part Number | 00025680 |
| Cutting Diameter (mm) | 10.00mm |
| Cutting Diameter 1 (mm) | 10.00mm |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (mm) | 10.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 19.58mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 13.00mm |
| Overall Length (mm) | 75.00mm |
| Cutting Edge Effective Length (mm) | 25.00mm |
| Cutting Width (Decimal Inch) | 0.089" |
| Cutting Width (mm) | 2.25mm |
| Maximum Depth of Cut (mm) | 25.00mm |
| Corner Radius (mm) | 0.20mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 3 |
| Cutting Geometry Type | J36 |
| Cutting Geometry Type Technical | J36 |
| Face Cutting Edge Count | 3 |
| Flute Helix Angle (Degree) | 50 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 10 Degree |
| Axial Rake Angle (Degree) | 50 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 3 |
| Material | Carbide |
| Coating | MEGA |

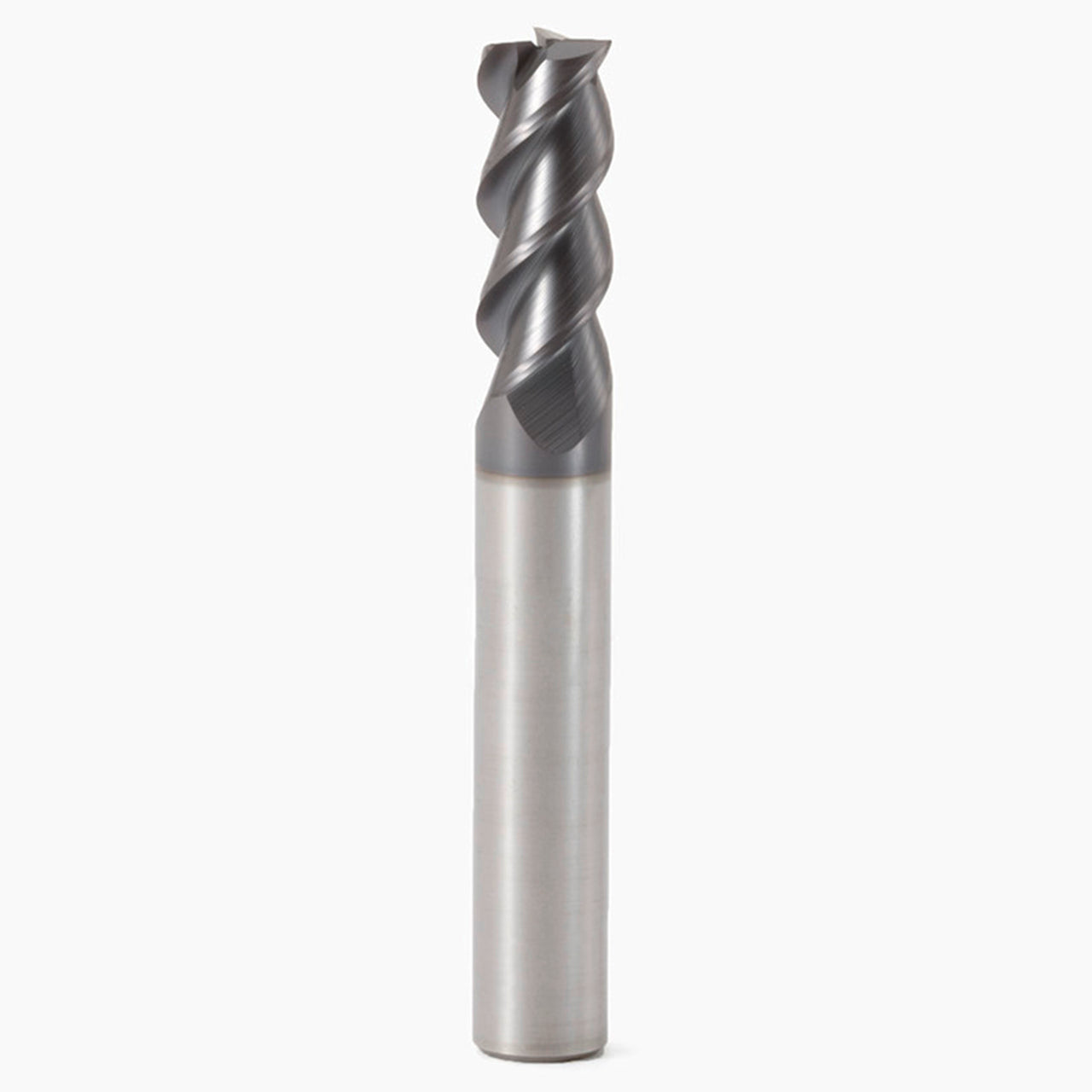

| Product Type | Corner Radius End Mill |
