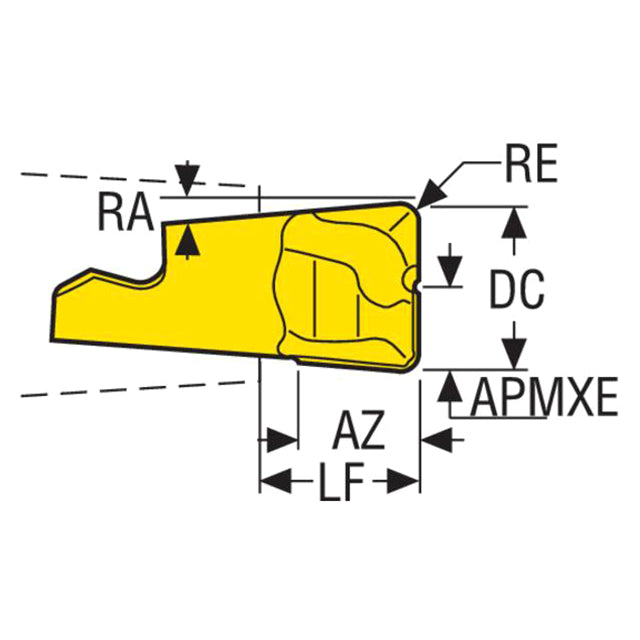

Product Specifications
| Manufacturer Part Number | 00023785 |
| Cutting Diameter (mm) | 16.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 17.30mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 30.00mm |
| Functional Length (mm) | 11.30mm |
| Maximum Depth of Cut (mm) | 8.00mm |
| Maximum Depth Plunge (mm) | 11.30mm |
| Corner Radius (mm) | 2.00mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Relief Angle (Degree) | 5 Degree |
| Material | Carbide |
| Product Type | Slotting Milling Tip Insert |
