Product Specifications
| Manufacturer Part Number | 00023744 |
| Cutting Diameter (mm) | 80.00mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 62.00mm |
| Maximum Cutting Diameter (mm) | 82.30mm |
| Functional Length (mm) | 50.00mm |
| Depth of Key Way (mm) | 7.00mm |
| Keyway Width (mm) | 12.40mm |
| Rake Radial Angle (Degree) | -7.5 Degree |
| Rake Radial Angle (Degree) | -7.5 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Tool Cutting Edge Angle (Degree) | 75 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 75 Degree |
| Maximum Rotational Speed (rpm) | 9100 rpm |
| Shank Type | Arbor |

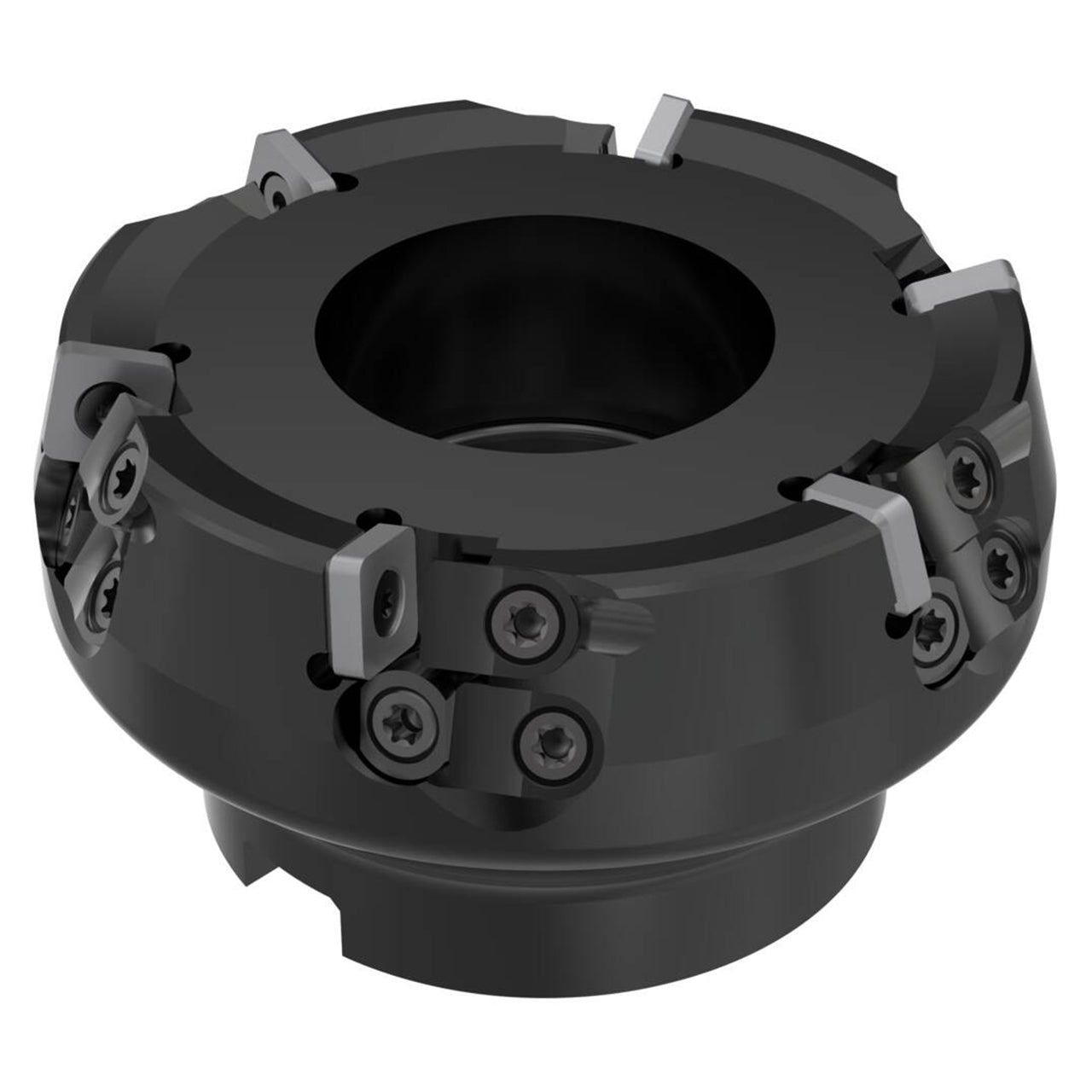

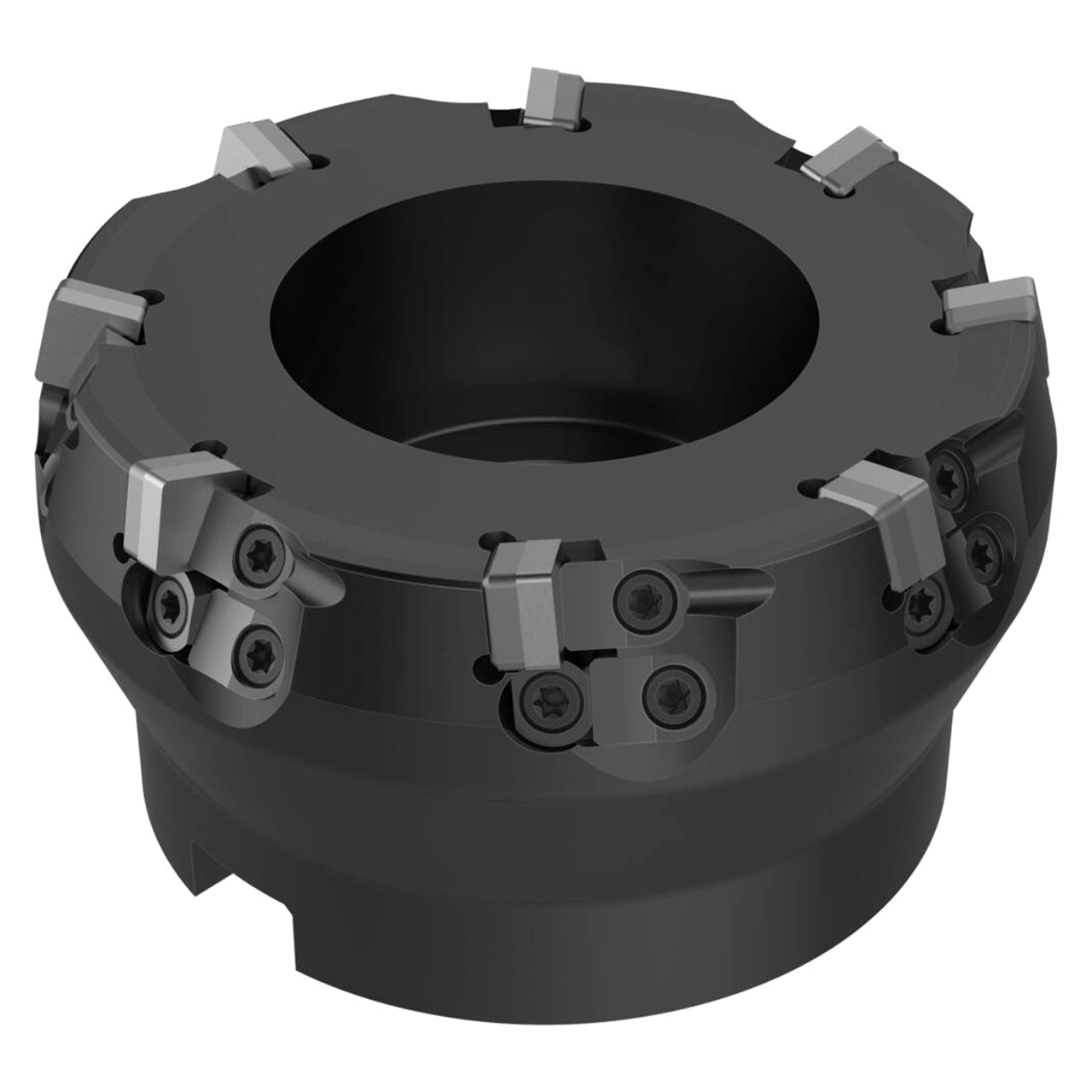

| Product Type | Indexable Copy Face Mill |
