Product Specifications

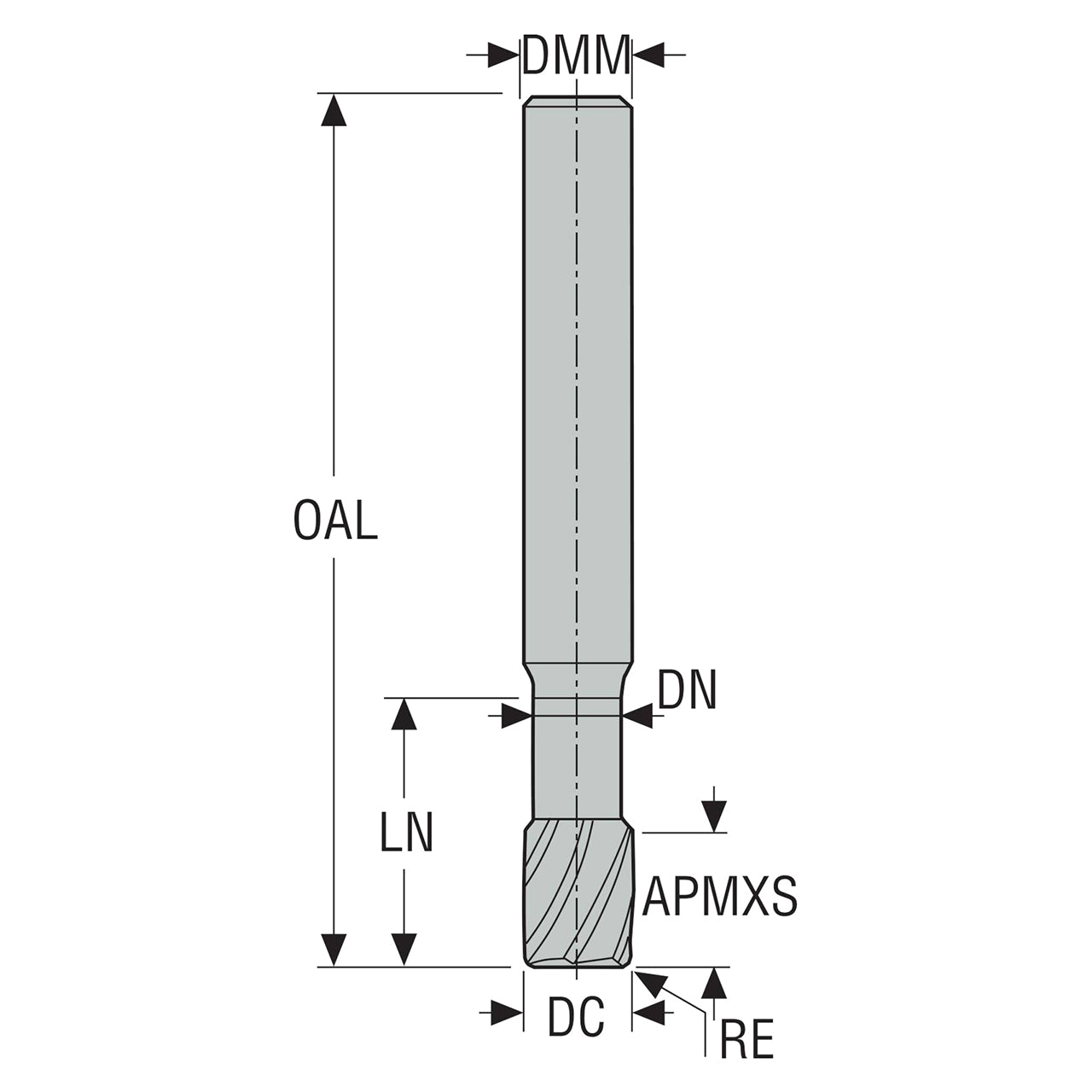

| Manufacturer Part Number | 00023453 |
| Cutting Diameter (mm) | 12.00mm |
| Cutting Diameter 1 (mm) | 12.00mm |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Shank Diameter (mm) | 12.00mm |
| Neck Diameter (mm) | 11.80mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 15.60mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 21.90mm |
| Cutting Edge Effective Length (mm) | 10.00mm |
| Neck Length (mm) | 100.00mm |
| Neck Length 1 (mm) | 100.00mm |
| Minimum Clamping Length (mm) | 45.00mm |
| Length Variant Cataloque | 4 |
| Theoretical Cutting Edge Length (mm) | 10.00mm |
| Overall Length (mm) | 150.00mm |
| Number of Flute | 2 |
| Pheripheral Cutting Edge Count | 2 |
| Maximum Depth of Cut (mm) | 10.00mm |
| Corner Radius (mm) | 1.00mm |
| Axial Runout (mm) | 0.01mm |
| Radial Runout (mm) | 0.01mm |
| Cutting Edge Count | 2 |
| Face Cutting Edge Count | 2 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 91.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Maximum Ramping Angle (Degree) | 10 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Right Hand |
| Center Cutting Capability | Yes |
| Cutting Geometry Type | JD620 |
| Cutting Geometry Type Technical | JD620 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | Diamond |

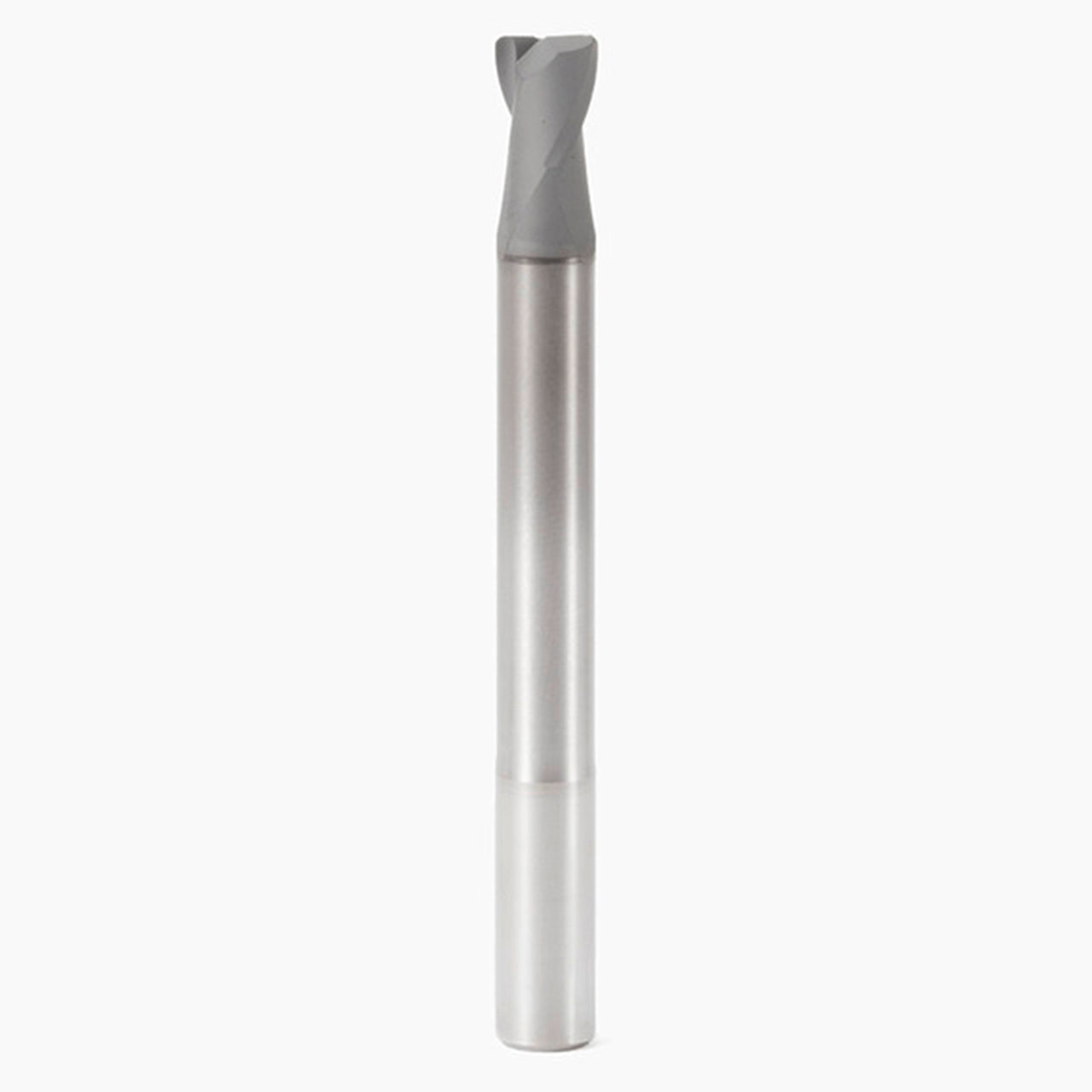

| Product Type | Corner Radius End Mill |
