Product Specifications
| Manufacturer Part Number | 00015234 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.300" |
| Minimum Cutting Diameter Internal (mm) | 33.02mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Functional Length (Decimal Inch) | 12.000" |
| Functional Length (mm) | 304.80mm |
| Head Length (Decimal Inch) | 1.098" |
| Head Length (mm) | 27.90mm |
| Shank Width (Decimal Inch) | 0.906" |
| Shank Width (mm) | 23.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.260" |
| Maximum Radial Cutting Depth (mm) | 6.60mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.866" |
| Height of Tool Holder Shank (mm) | 22.00mm |
| Functional Width (Decimal Inch) | 0.750" |
| Functional Width (mm) | 19.05mm |
| Coolant Supply Property | 1 |
| Rake Orthogonal Angle (Degree) | -3 Degree |
| Axial Rake Angle (Degree) | -12 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | P |
| Tool Cutting Edge Angle (Degree) | 117.5 Degree |
| Tool Cutting Edge Angle Code | P |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 117.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 117.5 Degree |
| Inclination Angle (Degree) | -12 Degree |
| Insert Shape Code | V |
| Shank Type | Cylindrical |

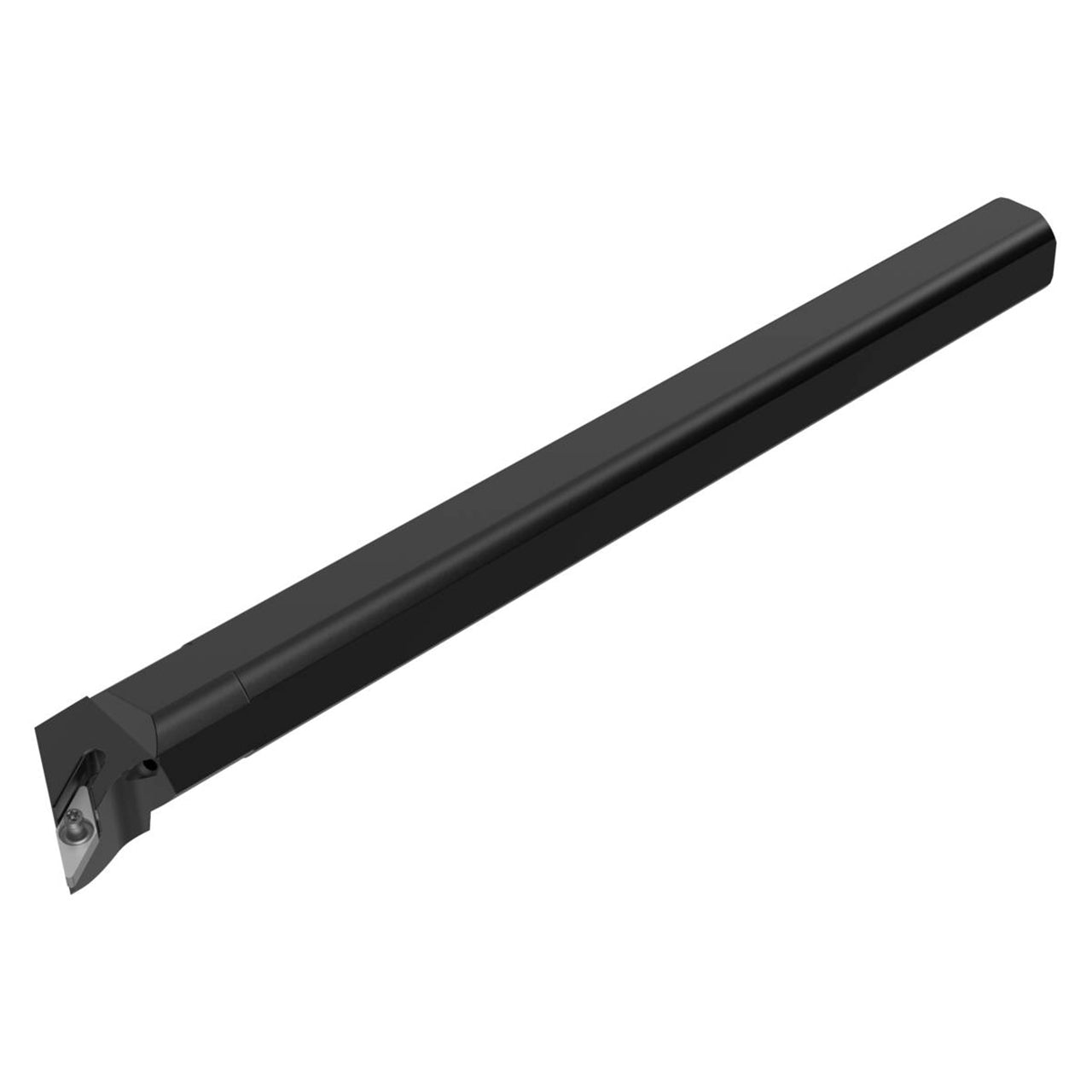

| Product Type | Indexable Boring Bar |
