Product Specifications
| Manufacturer Part Number | 00014752 |
| Connection Bore Diameter (Decimal Inch) | 0.625" |
| Connection Bore Diameter (mm) | 15.88mm |
| Connection Diameter (Decimal Inch) | 0.750" |
| Connection Diameter (mm) | 19.05mm |
| Flange Diameter (Decimal Inch) | 1.140" |
| Flange Diameter (mm) | 28.96mm |
| Shank Length (Decimal Inch) | 2.070" |
| Shank Length (mm) | 52.58mm |
| Clamping Length (Decimal Inch) | 1.890" |
| Clamping Length (mm) | 48.01mm |
| Flange Thickness (Decimal Inch) | 0.080" |
| Flange Thickness (mm) | 2.03mm |

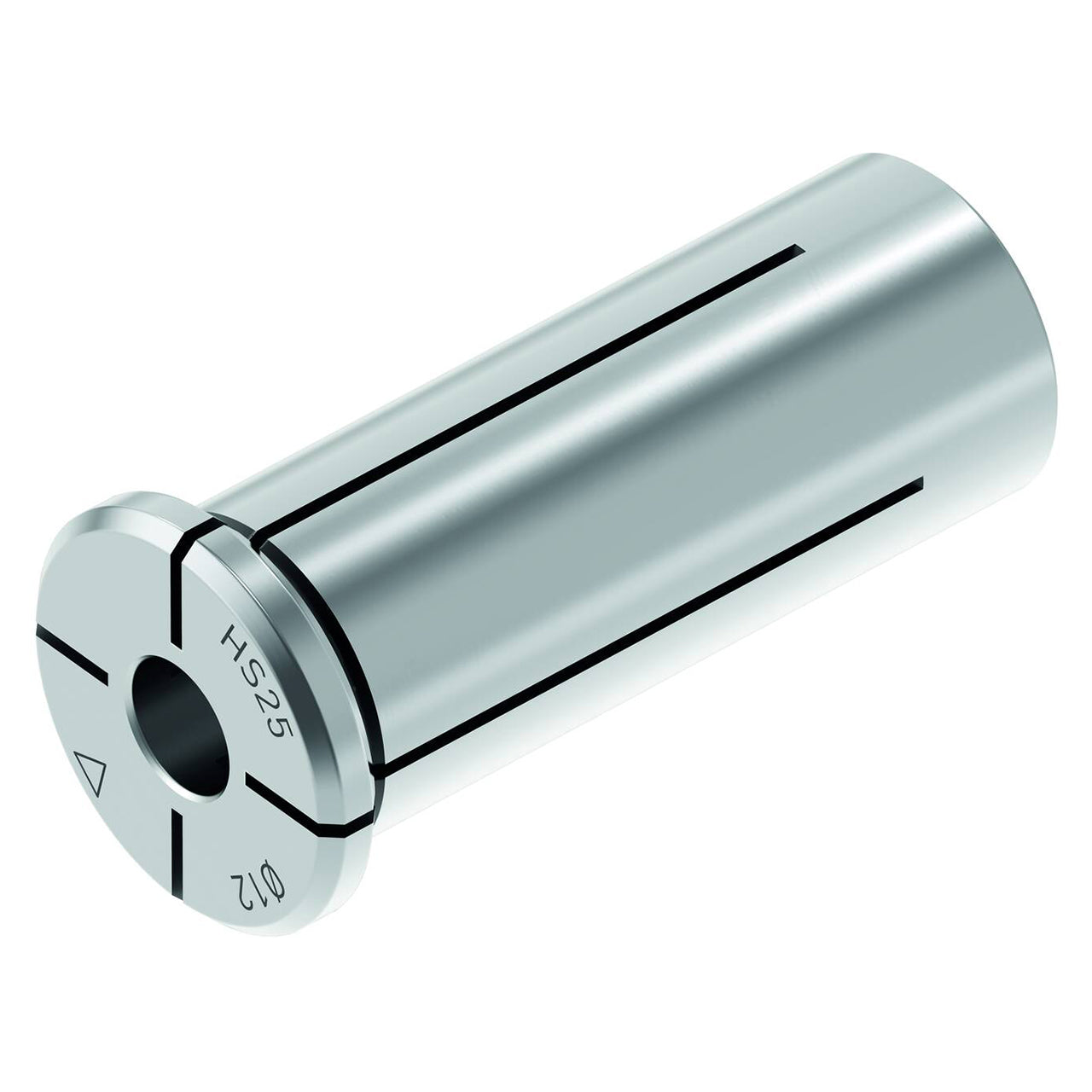

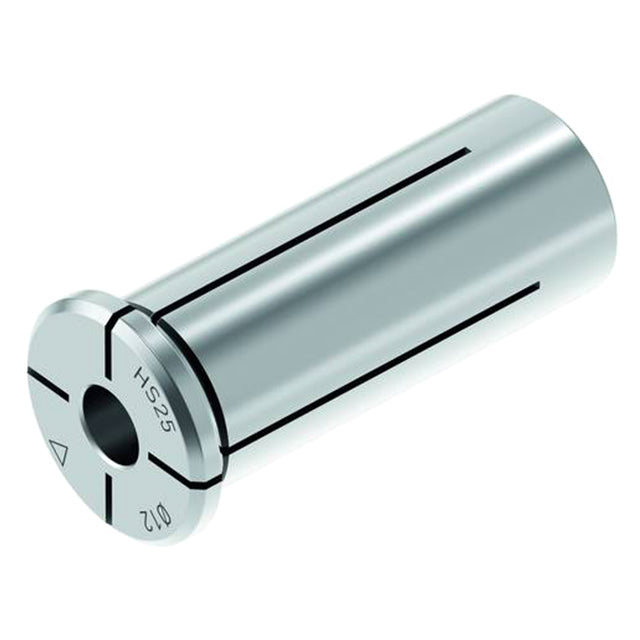

| Product Type | Hydraulic Chuck Sleeve |
