Product Specifications
| Manufacturer Part Number | 00013451 |
| Minimum Initial Plunge Diameter (mm) | 70.00mm |
| Maximum Initial Plunge Diameter (mm) | 100.00mm |
| Functional Length (mm) | 150.00mm |
| Head Length (mm) | 42.00mm |
| Shank Width (mm) | 25.00mm |
| Maximum Cutting Depth (mm) | 18.00mm |
| Cutting Width (mm) | 6.00mm |
| Height of Tool Holder Shank (mm) | 25.00mm |
| Functional Width (mm) | 26.50mm |
| Workpiece Side Body Angle (Degree) | 90 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Square shank axial |

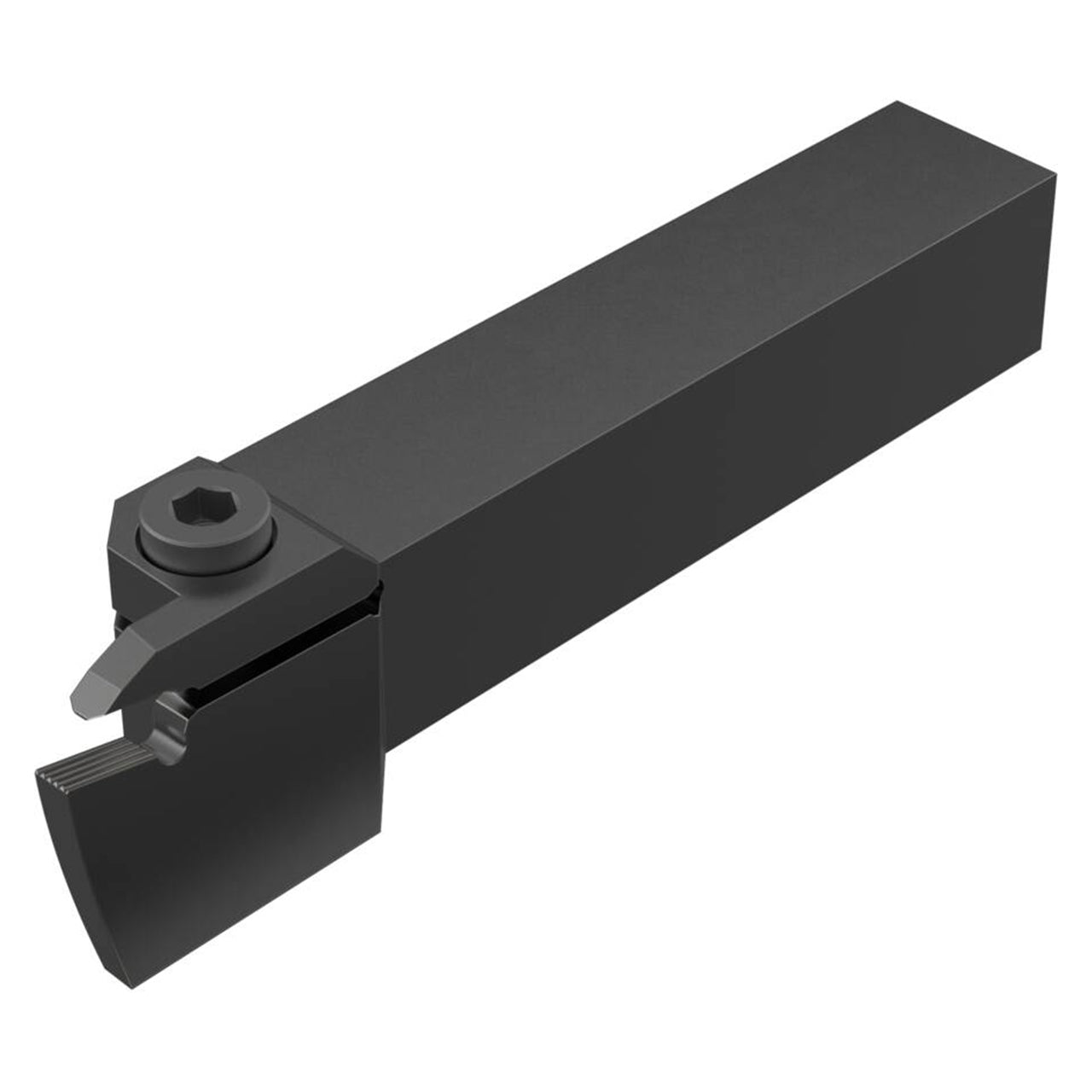

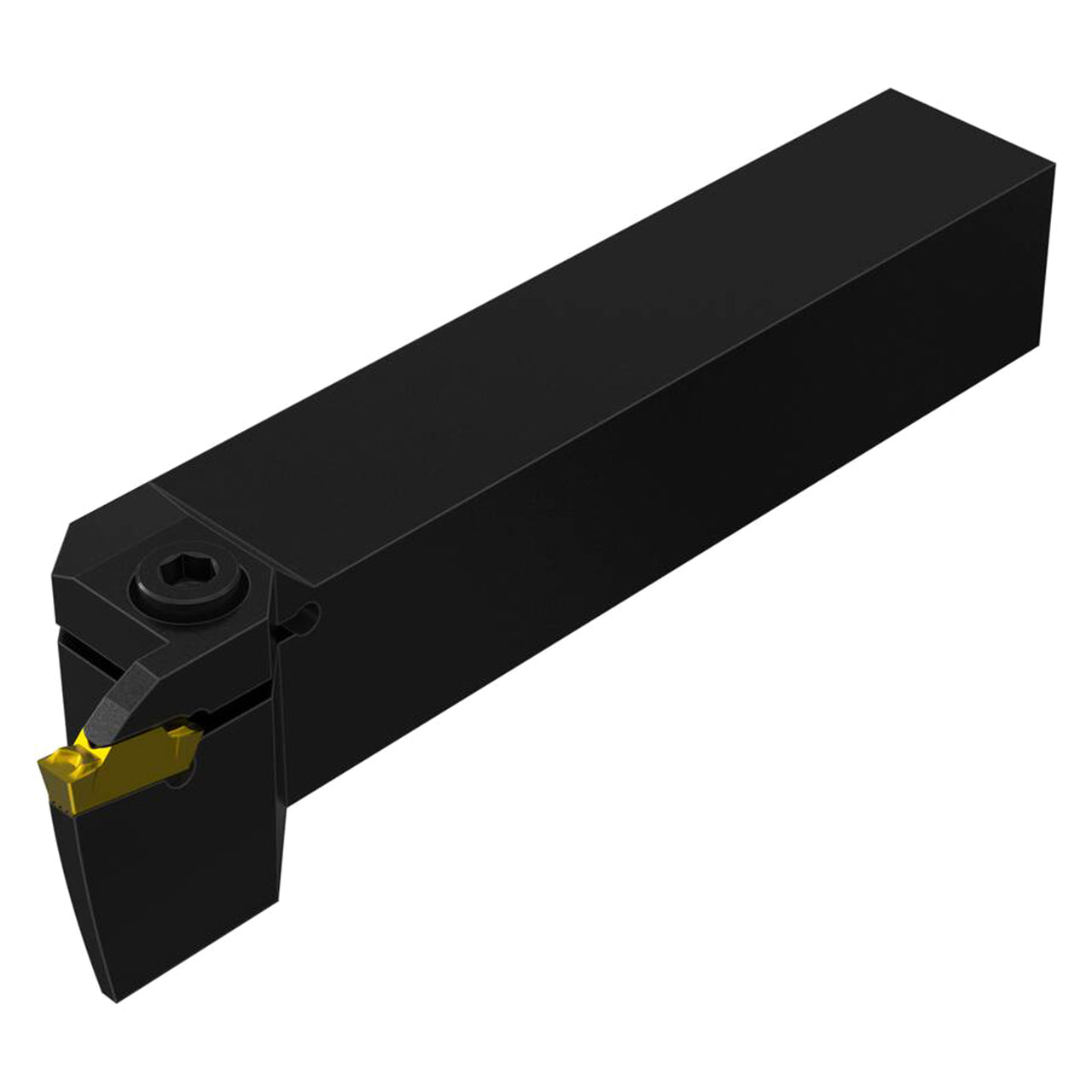

| Product Type | Indexable Grooving Toolholder |
