Product Specifications
| Manufacturer Part Number | 00013361 |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.720" |
| Head Length (mm) | 43.69mm |
| Shank Width (Decimal Inch) | 1.250" |
| Shank Width (mm) | 31.75mm |
| Maximum Cutting Depth (Decimal Inch) | 0.970" |
| Maximum Cutting Depth (mm) | 24.64mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.250" |
| Height of Tool Holder Shank (mm) | 31.75mm |
| Functional Width (Decimal Inch) | 1.500" |
| Functional Width (mm) | 38.10mm |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle Code | G |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Insert Shape Code | R |
| Shank Type | Square shank |

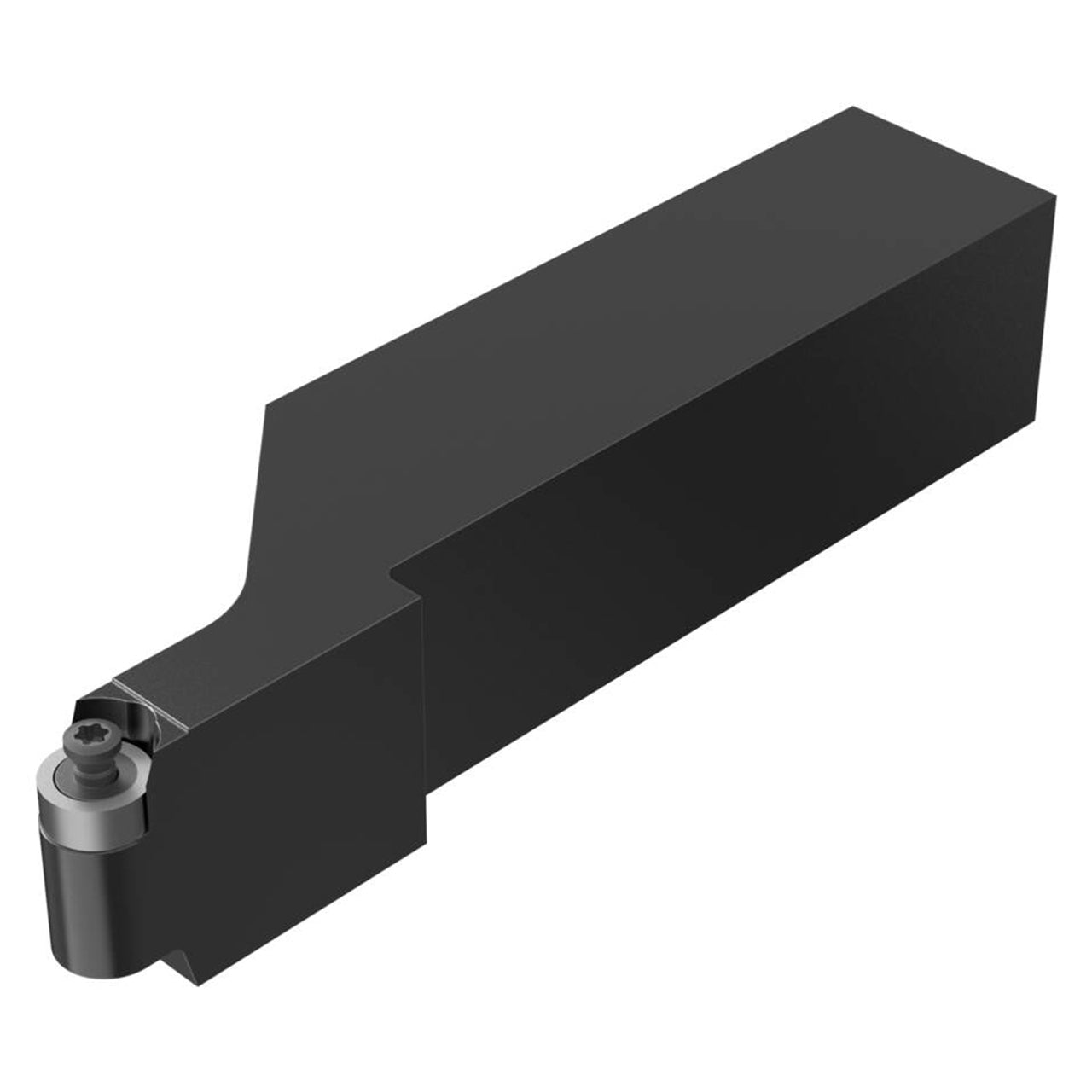

| Product Type | Indexable Turning Toolholder |
