Product Specifications
| Manufacturer Part Number | 00013351 |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.480" |
| Head Length (mm) | 37.60mm |
| Shank Width (Decimal Inch) | 1.000" |
| Shank Width (mm) | 25.40mm |
| Maximum Cutting Depth (Decimal Inch) | 0.730" |
| Maximum Cutting Depth (mm) | 18.54mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.000" |
| Height of Tool Holder Shank (mm) | 25.40mm |
| Functional Width (Decimal Inch) | 1.252" |
| Functional Width (mm) | 31.80mm |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle Code | G |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Insert Shape Code | R |
| Shank Type | Square shank |

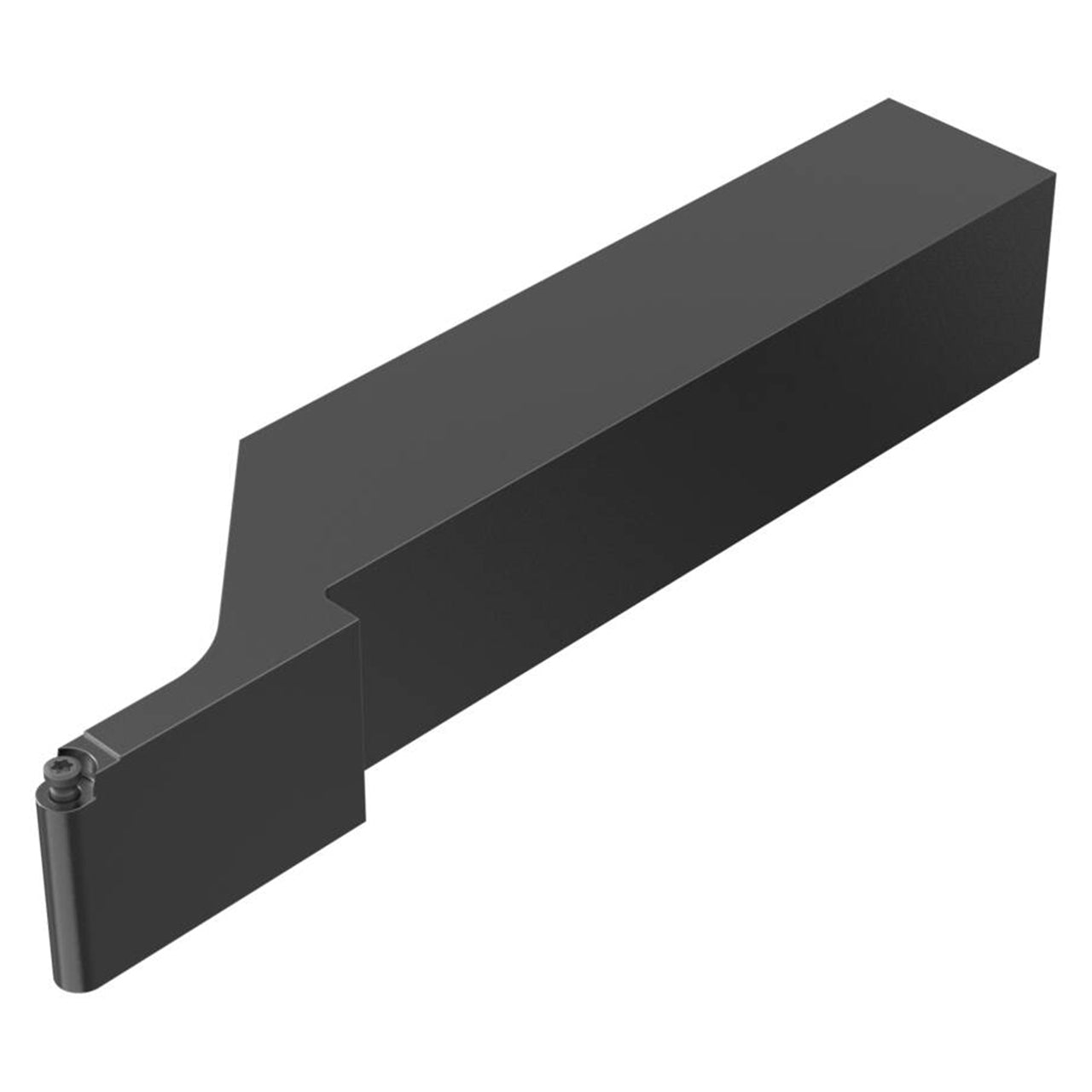

| Product Type | Indexable Turning Toolholder |
