Product Specifications
| Manufacturer Part Number | 00013325 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 7.087" |
| Minimum Cutting Diameter Internal 3 (mm) | 180.00mm |
| Functional Length (Decimal Inch) | 4.500" |
| Functional Length (mm) | 114.30mm |
| Functional Length Secondary (Decimal Inch) | 4.247" |
| Functional Length Secondary (mm) | 107.87mm |
| Head Length (Decimal Inch) | 1.043" |
| Head Length (mm) | 26.50mm |
| Shank Length (Decimal Inch) | 3.457" |
| Shank Length (mm) | 87.80mm |
| Shank Width (Decimal Inch) | 0.500" |
| Shank Width (mm) | 12.70mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.500" |
| Height of Tool Holder Shank (mm) | 12.70mm |
| Functional Height (Decimal Inch) | 0.500" |
| Functional Height (mm) | 12.70mm |
| Functional Width (Decimal Inch) | 0.250" |
| Functional Width (mm) | 6.35mm |
| Axial Rake Angle (Degree) | -7 Degree |
| Cutting Direction | Neutral |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle Code | D |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 135 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Inclination Angle (Degree) | -7 Degree |
| Maximum Ramping Angle (Degree) | 45 Degree |
| Insert Shape Code | S |
| Shank Type | Square shank |

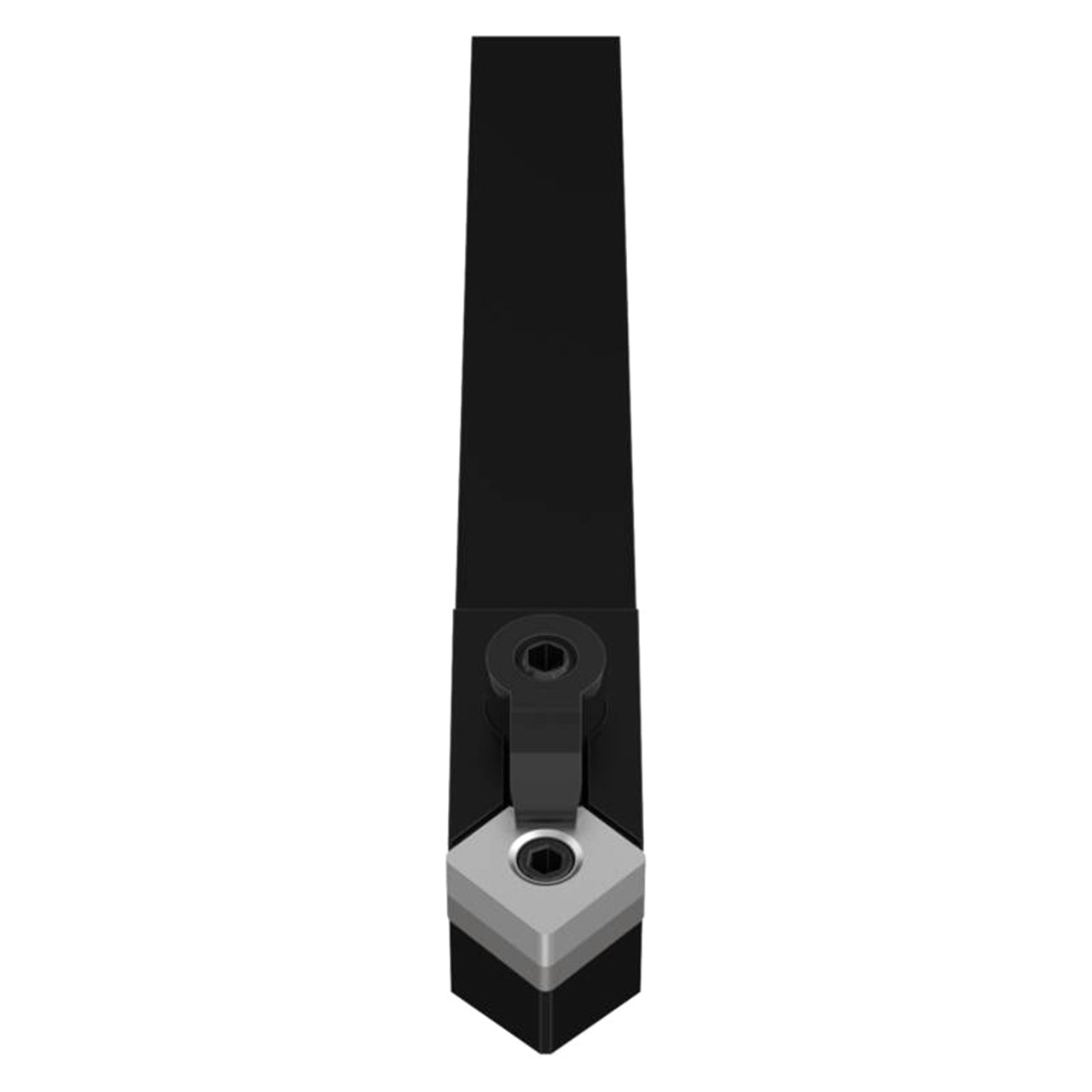

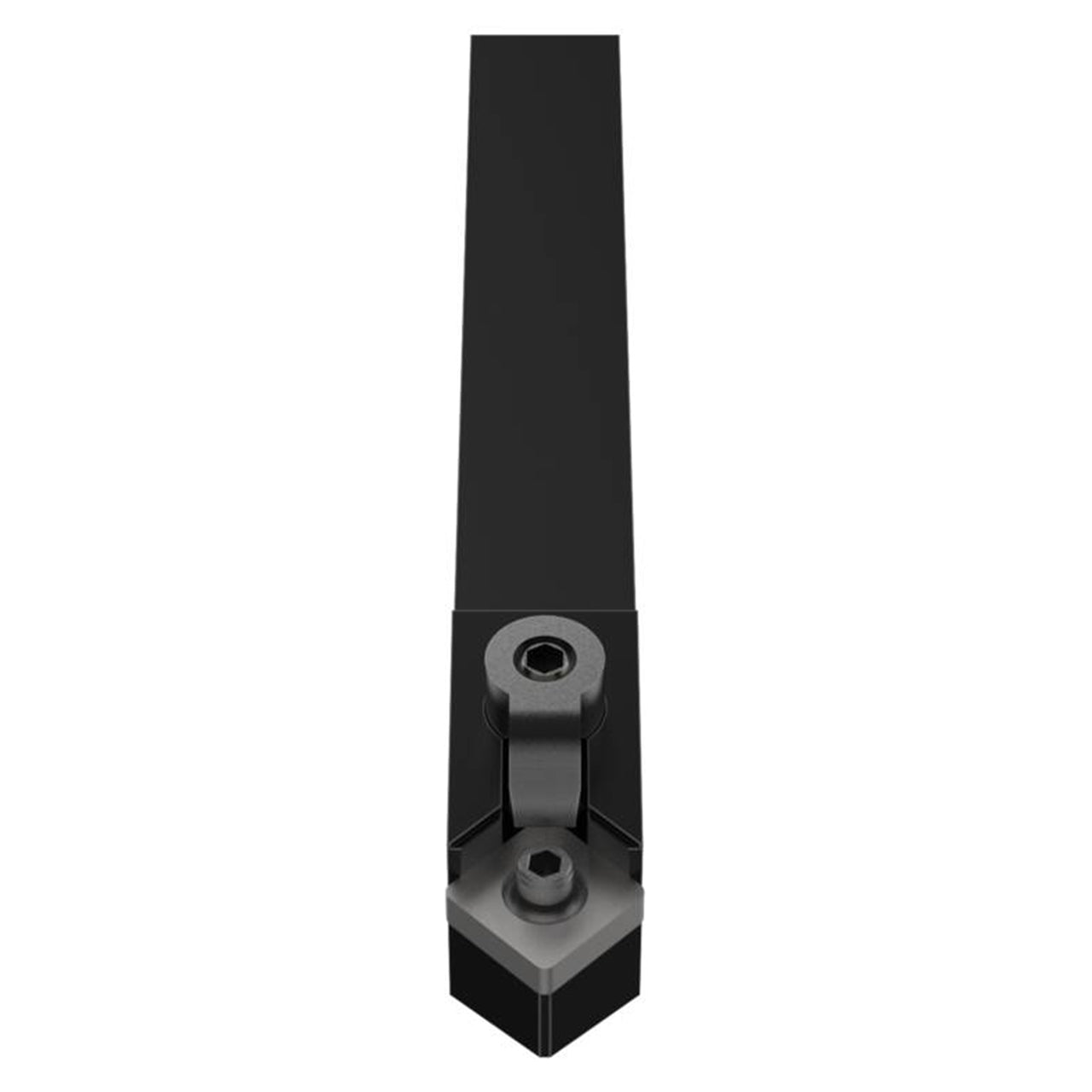

| Product Type | Indexable Turning Toolholder |
